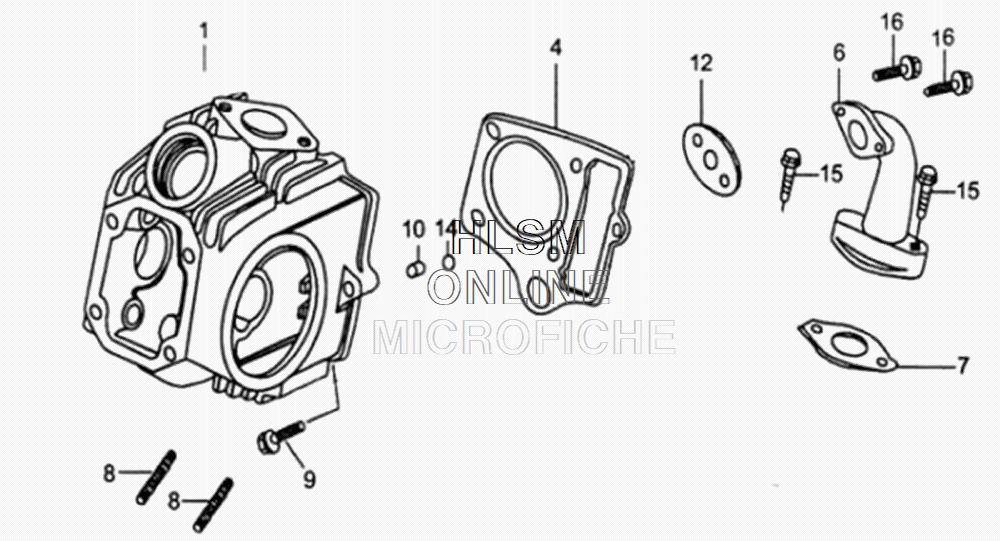

Cylinder Head Assembly
| E-2 | Cylinder Head | ||||
 |
|||||
| NO. | U8 Parts No. | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101019-0803 | Cylinder head component | 1 | /ea | $ 85.00 |
| 101019-0803A | Cylinder head assy | 1 | /ea | $ 149.60 | |
| 4 | 101019-0572-02 | Cylinder head gasket | 1 | /ea | $ 20.40 |
| 6 | 101001-0001 | Intake pipe | 1 | /ea | $ 17.00 |
| 7 | 101019-0573 | Gasket,intake pipe | 1 | /ea | $ 10.20 |
| 8 | 101019-0860 | double screw bolts | 2 | /ea | $ 10.20 |
| 9 | 101019-0856 | Connecting bolt | 1 | /ea | $ 5.10 |
| 10 | 101019-0855 | Flanging collar | 1 | /ea | $ 5.10 |
| 12 | 101019-0574 | Bakelite gasket, carburetor | 1 | /ea | $ 13.60 |
| 14 | 101019-0575 | Squre ring | 1 | /ea | $ 5.10 |
| 15 | 101019-0836 | Bolt | 2 | /ea | $ 5.10 |
| 16 | 101019-0840 | Bolt | 2 | /ea | $ 5.10 |
