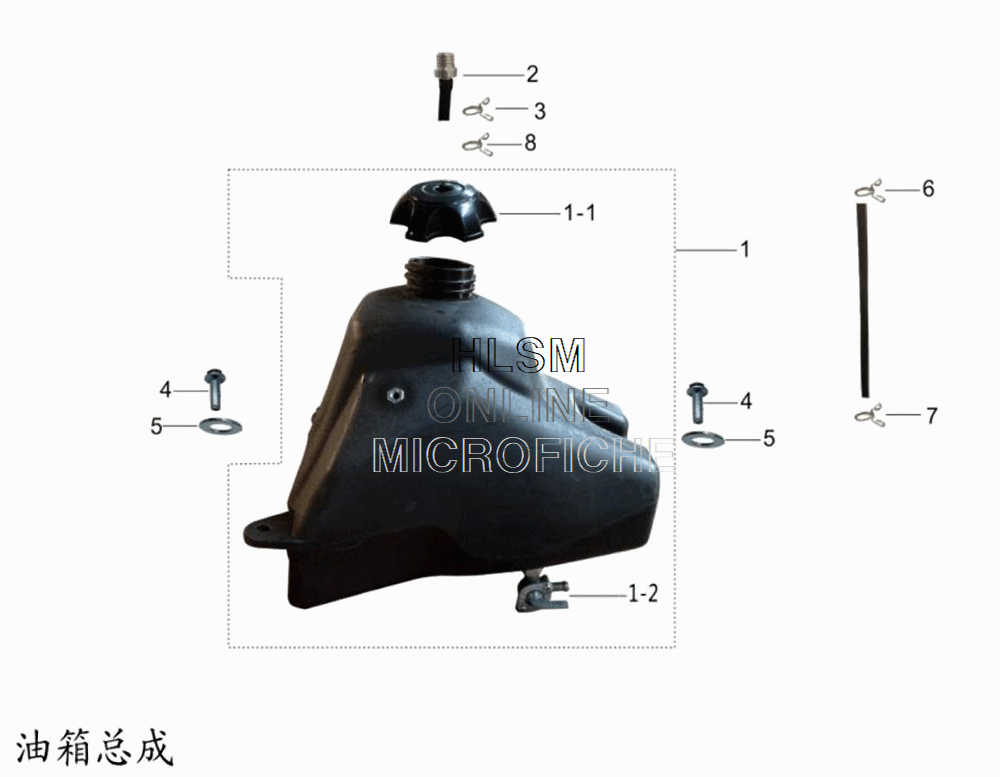

Fuel Tank Assembly
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 805001-0001 | fuel tank assy. | 1 | /ea | $ 51.00 |
| 1-1 | 805003-0003 | fuel tank cover | 1 | /ea | $ 10.20 |
| 1-2 | 805004-0005 | fuel tank switch | 1 | /ea | $ 13.60 |
| 2 | 805005-0001-06 | One-way air valve | 1 | /ea | $ 6.80 |
| 3 | 906002-0003 | pipe clamp | 1 | /ea | $ 3.40 |
| 4 | 903019-0014 | bolt | 2 | /ea | $ 3.40 |
| 5 | 903002-0005 | gasket | 2 | /ea | $ 3.40 |
| 6 | 906002-0002 | pipe clamp | 1 | /ea | $ 2.55 |
| 7 | 906002-0001 | pipe clamp | 1 | /ea | $ 2.55 |
| 8 | 906002-0004 | pipe clamp | 1 | /ea | $ 3.40 |
