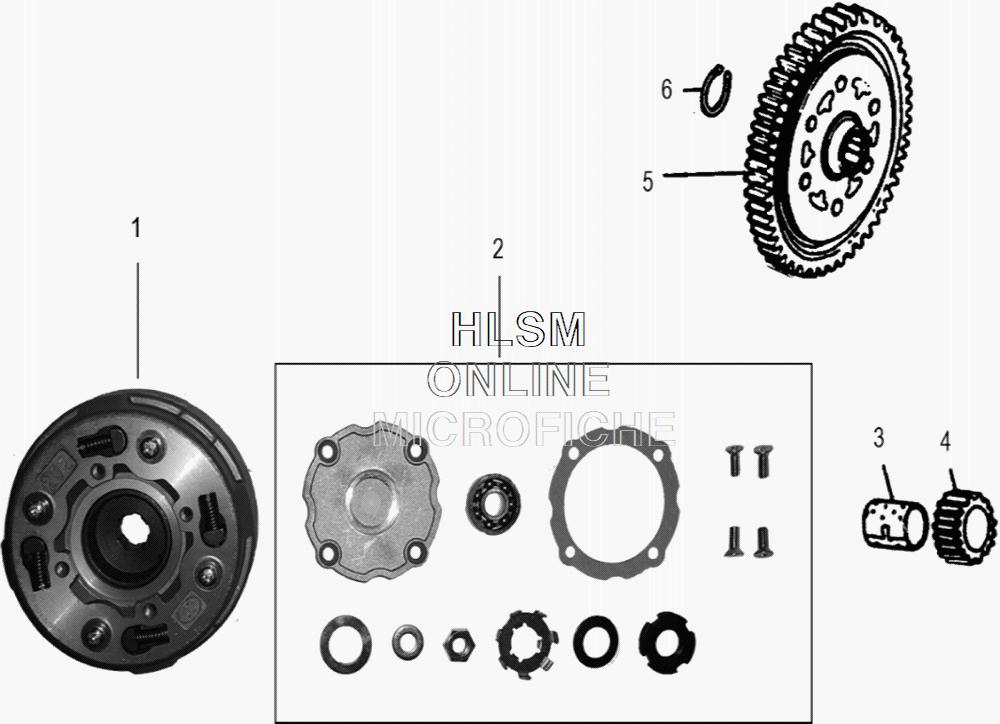

Clutch
| E-7 Clutch | |||||
 |
|||||
| NO. | U8 Parts No. | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | H01050-0010 | Clutch body | 1 | /ea | $ 68.00 |
| 2 | H01050-0060 | Clutch accessory assembly | 1 | /ea | $ 25.50 |
| 3 | H01050-0040 | Driving gear shaft sleeve | 1 | /ea | $ 17.00 |
| 4 | H01050-0050 | Driving gear | 1 | /ea | $ 17.00 |
| 5 | H01050-0020 | Driven gear | 1 | /ea | $ 30.60 |
| 6 | I01051-0050 | Retaining ring, driven gear | 1 | /ea | $ 8.50 |
| 7 | H01050-0070 | End cover sealing gasket | 1 | /ea | $ 8.50 |
| 8 | A00126-0501-24 | Screw | 4 | /ea | $ 5.10 |
| 9 | A00159-1401 | Nut | 1 | /ea | $ 8.50 |
| 10 | A00164-1401 | Butterfly washer | 1 | /ea | $ 8.50 |
| 11 | A00163-1401 | Backstop washer | 1 | /ea | $ 8.50 |
| 12 | A00140-0801-24 | Nut | 1 | /ea | $ 5.10 |
| 13 | A00280-0703 | O-rings | 1 | /ea | $ 6.80 |
