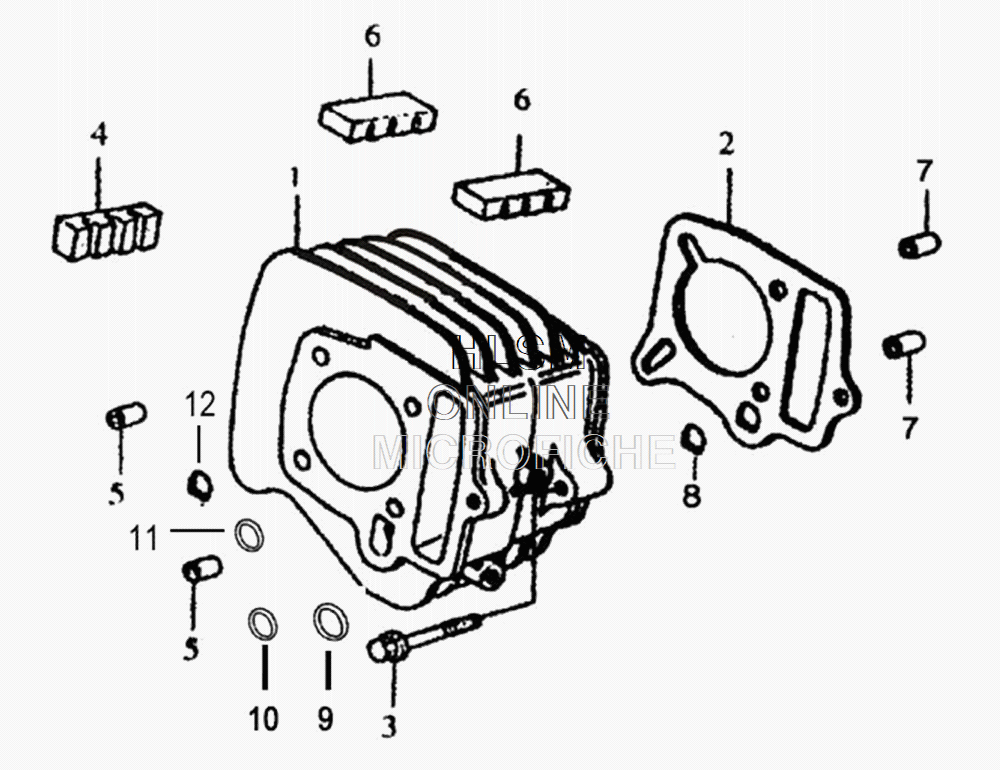

Cylinder Assembly
| E-5 Cylinder | |||||
 |
|||||
| NO. | U8 Parts No. | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | I02020-0020 | Cylinder | 1 | /ea | $ 81.60 |
| 2 | I01020-0030 | Cylinder gasket | 1 | /ea | $ 17.00 |
| 3 | A00128-0602-25 | Connecting bolt | 1 | /ea | $ 6.80 |
| 4 | H01020-0040 | Cylinder damping rubber B | 1 | /ea | $ 8.50 |
| 5 | A00206-0802 | Dowel pin | 2 | /ea | $ 6.80 |
| 6 | H01020-0050 | Cylinder damping rubber A | 2 | /ea | $ 8.50 |
| 7 | A00206-0803 | Dowel pin | 2 | /ea | $ 6.80 |
| 8 | H01020-0160 | Squre ring | 1 | /ea | $ 6.80 |
| 9 | H01020-0170 | Squre ring | 1 | /ea | $ 6.80 |
| 10 | A00181-1101 | Squre iron ring | 1 | /ea | $ 6.80 |
