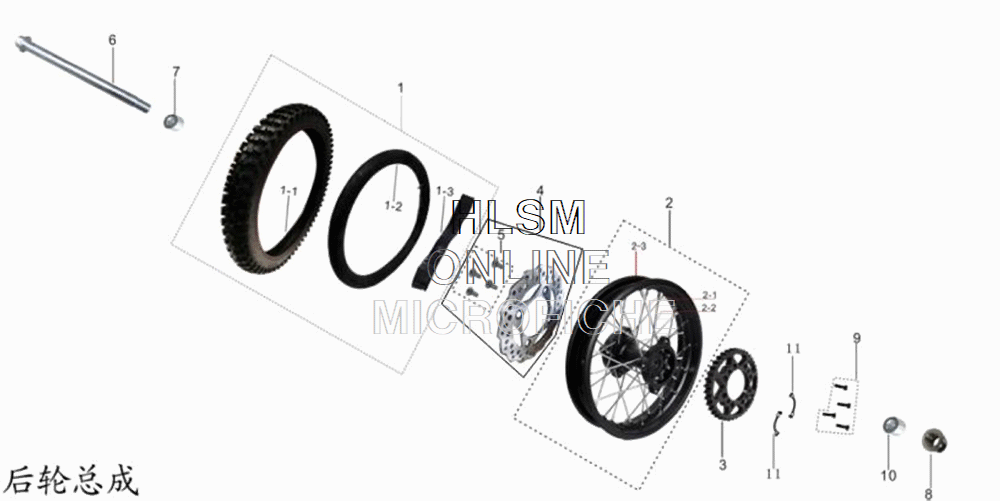

Rear Wheel Assembly
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 402005-0038 | rear tyres assy. | 1 | /ea | $ 68.00 |
| 1-1 | 402006-0039 | rear outer tyre | 1 | /ea | $ 54.40 |
| 1-2 | 402007-0006 | rear inner tyre | 1 | /ea | $ 13.60 |
| 1-3 | 401008-0001 | linning belt | 1 | /ea | $ 6.80 |
| 2 | 402000-0017-03 | rear rim | 1 | /ea | $ 76.50 |
| 2-1 | 402004-0004 | spoke assy. | 16 | /ea | $ 3.40 |
| 2-2 | 402004-0005 | spoke assy. | 16 | /ea | $ 3.40 |
| 2-3 | 402002-0001 | wheel ring | 1 | /ea | $ 51.00 |
| 3 | 205001-0015 | rear sprocket | 1 | /ea | $ 30.60 |
| 4 | 405001-0018 | rear brake disc | 1 | /ea | $ 30.60 |
| 5 | 404011-0001 | bolt | 4 | /ea | $ 4.25 |
| 6 | 901001-0033 | flange axle | 1 | /ea | $ 13.60 |
| 7 | 902001-0071 | flat washer | 1 | /ea | $ 6.80 |
| 8 | 903007-0009 | flange locknut | 1 | /ea | $ 6.80 |
| 9 | 903017-0004 | bolt | 4 | /ea | $ 4.25 |
| 10 | 902001-0066 | flat bushing | 1 | /ea | $ 6.80 |
| 11 | 906004-0001 | Sprocket lock piece | 2 | /ea | $ 6.80 |
