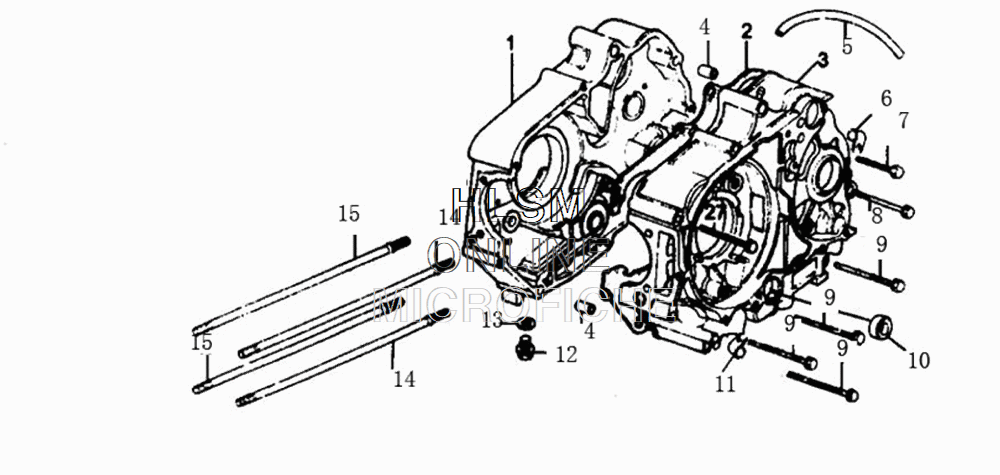

Crankcase Assembly
| REF. NO. |
PART NO. / DESCRIPTION | PRICE EACH |
TSD 110 |
| 1 |
101018-0589
RIGHT CRANKCASE COMPONENT
|
59.50 | 1 |
| 2 |
101018-0590
CRANKCASE GASKET
|
17.00 | 1 |
| 3 |
101018-0591
LEFT CRANKCASE ASSEMBLY
|
76.50 | 1 |
| 4 |
101019-0066
DOWEL PIN
|
6.80 | 1 |
| 5 |
101019-0652
AIR PIP
|
8.50 | 1 |
| 6 |
101019-0653
CLAMP, EXHAUST PIPE
|
3.40 | 1 |
| 7 |
101019-0843
BOLT
|
6.80 | 1 |
| 8 |
101019-0844
BOLT
|
13.60 | 1 |
| 9 |
101019-0845
BOLT
|
8.50 | 4 |
| 10 |
101018-0592
OIL SEAL
|
17.00 | 1 |
| 11 |
101019-0655
OVERFLOW PIPE CLAMP
|
3.40 | 1 |
| 12 |
101018-0593
PLUG, DRAIN
|
17.00 | 1 |
| 13 |
101018-0594
ALUMINUM WASHER
|
8.50 | 1 |
| 14 |
101018-0595
DOUBLE SCREW BOLTS A
|
20.40 | 2 |
| 15 |
101018-0596
DOUBLE SCREW BOLTS B
|
20.40 | 2 |
