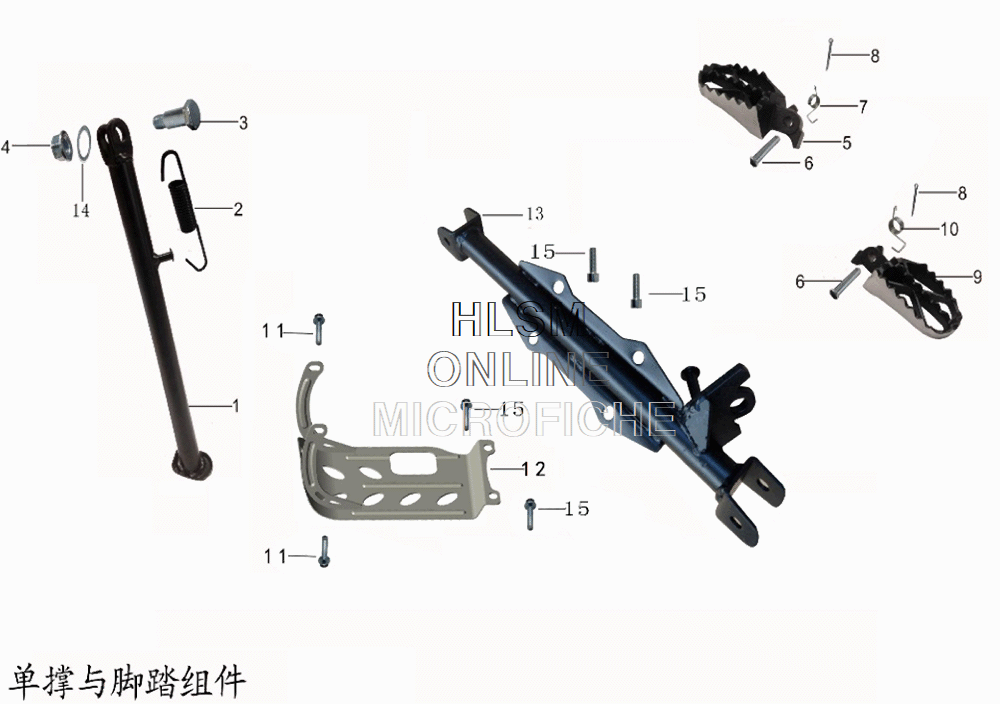

Foot Peg Assembly with Side Stand
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 554000-0050 | side stand | 1 | /ea | $ 22.10 |
| 2 | 407002-0001 | side stand spring | 1 | /ea | $ 6.80 |
| 3 | 903020-0001 | bolt | 1 | /ea | $ 6.80 |
| 4 | 903006-0005 | flange nut | 1 | /ea | $ 5.10 |
| 5 | 506003-0013-01 | right footpeg | 1 | /ea | $ 25.50 |
| 6 | 904001-0001 | hinge pin | 2 | /ea | $ 5.10 |
| 7 | 407001-0007 | right footpeg spring | 1 | /ea | $ 5.10 |
| 8 | 904002-0002 | cotter pin | 2 | /ea | $ 1.70 |
| 9 | 506003-0012-01 | left footpeg | 1 | /ea | $ 25.50 |
| 10 | 407001-0006 | left footpeg spring | 1 | /ea | $ 5.10 |
| 11 | 903019-0004 | flange bolt | 2 | /ea | $ 3.40 |
| 12 | 109001-0003-02 | steel pallet | 1 | /ea | $ 34.00 |
| 13 | 506001-0008-02 | foot rest | 1 | /ea | $ 42.50 |
| 14 | 903002-0011 | flat washer | 1 | /ea | $ 3.40 |
| 15 | 903020-0015 | screw | 4 | /ea | $ 3.40 |
