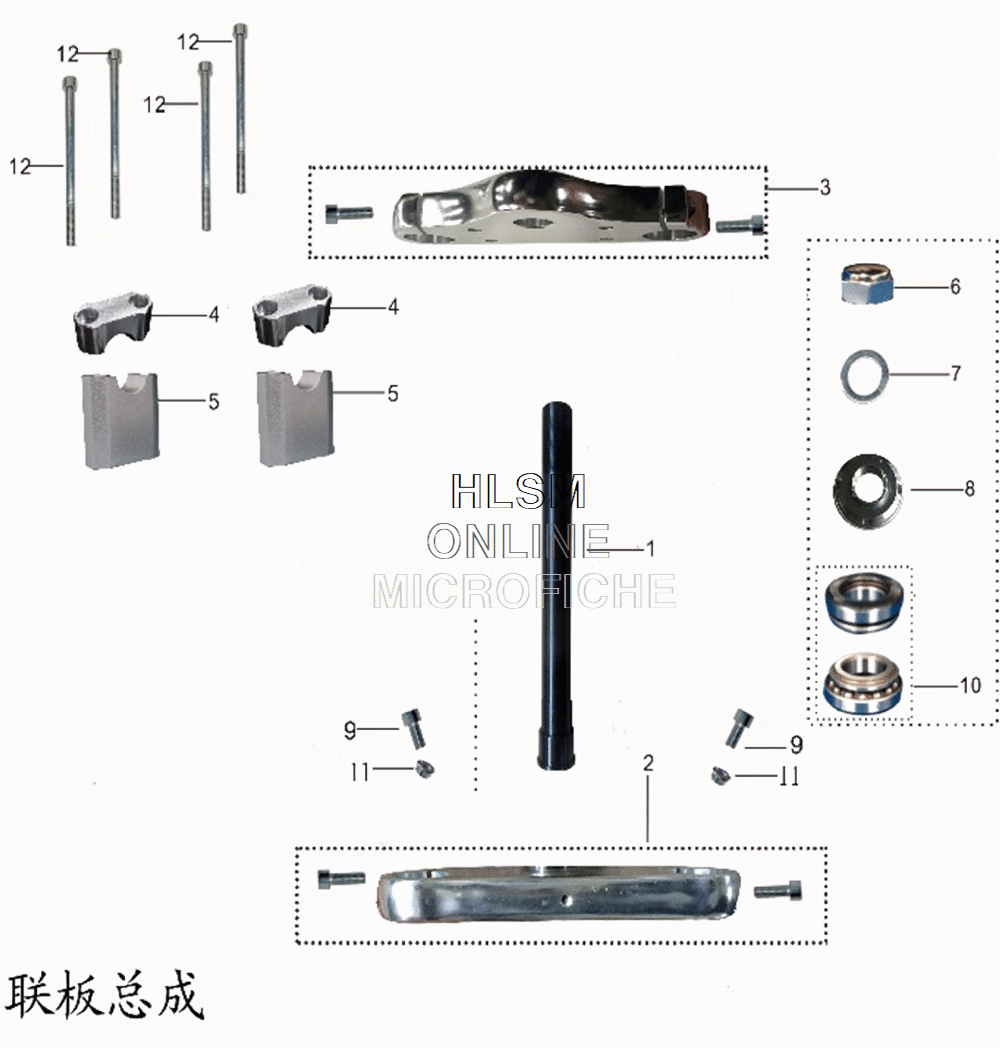

Steering Assembly
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 601006-0004 | steering column | 1 | /ea | $ 25.50 |
| 2 | 601002-0001-02 | lower clamp | 1 | /ea | $ 51.00 |
| 3 | 601001-0002-02 | upper clamp | 1 | /ea | $ 51.00 |
| 4 | 601003-0021 | upper raisers | 2 | /ea | $ 8.50 |
| 5 | 601004-0001-04 | lower raisers | 2 | /ea | $ 13.60 |
| 6 | 601005-0001 | top nut | 1 | /ea | $ 8.50 |
| 7 | 601005-0012 | washer | 1 | /ea | $ 6.80 |
| 8 | 601005-0009 | dust seal | 1 | /ea | $ 8.50 |
| 9 | 903013-0017 | screw | 2 | /ea | $ 3.40 |
| 10 | 907001-0028 | bearing | 1 | /ea | $ 17.00 |
| 11 | 903005-0006 | nut | 2 | /ea | $ 3.40 |
| 12 | 903013-0035 | screw | 4 | /ea | $ 10.20 |
