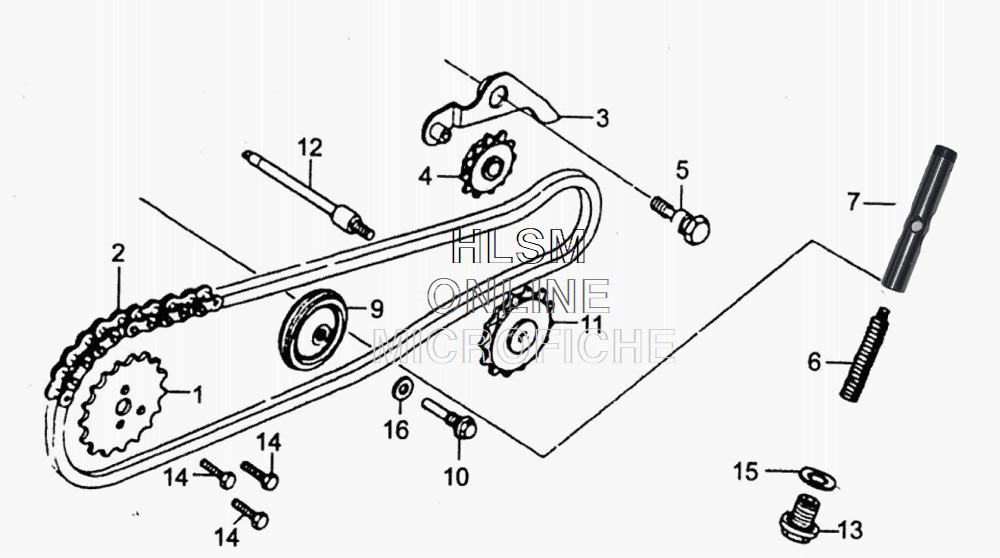

Cam Chain & Tensioner
| REF. NO. |
PART NO. / DESCRIPTION | PRICE EACH |
TSD 110 |
| 1 |
101018-0530
TIMING DRIVEN SPROCKET
|
25.50 | 1 |
| 2 |
101018-0531
TIMING CHAIN
|
25.50 | 1 |
| 3 |
101018-0532
TENSIONING ARM
|
17.00 | 1 |
| 4 |
101018-0533
TENSIONING ROLLER
|
25.50 | 1 |
| 5 |
101018-0534
MANDREL, TENSIONING ARM
|
13.60 | 1 |
| 6 |
101018-0535
SPRING
|
17.00 | 1 |
| 7 |
101018-0536
TENSIONING BAR
|
25.50 | 1 |
| 9 |
101018-0537
CHAIN GUIDE ROLLER ASSEMBLY
|
17.00 | 1 |
| 10 |
101018-0538
PIN SHAFT, CHAIN GUIDE ROLLER
|
13.60 | 1 |
| 11 |
101018-0539
SPROCKET, OIL PUMP
|
25.50 | 1 |
| 12 |
101018-0540
SPROCKET SHAFT, OIL PUMP
|
17.00 | 1 |
| 13 |
101018-0541
SEAL SOCKET PLUG
|
17.00 | 1 |
| 14 |
101019-0861
HEXAGON HEAD BOLT (FULL-THREAD)
|
5.10 | 3 |
| 15 |
101019-0854
ALUMINUM WASHER
|
6.80 | 1 |
| 16 |
101019-0853
ALUMINUM WASHER
|
6.80 | 1 |
