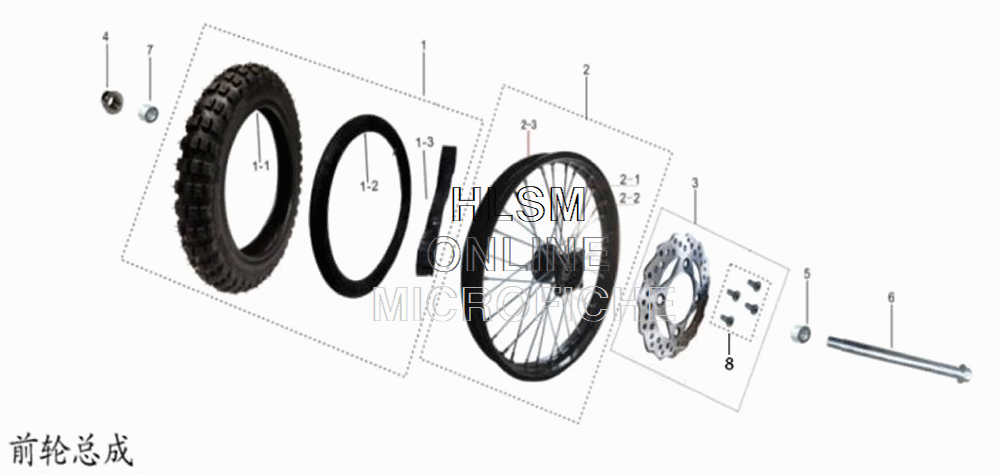

Front Wheel Assembly
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 401005-0038 | front tyres assy. | 1 | /ea | $ 64.60 |
| 1-1 | 401006-0048 | front outer tyre | 1 | /ea | $ 51.00 |
| 1-2 | 401007-0010 | front inner tyre | 1 | /ea | $ 13.60 |
| 1-3 | 401008-0002 | linning belt | 1 | /ea | $ 5.10 |
| 2 | 401000-0011-03 | front rim | 1 | /ea | $ 76.50 |
| 2-1 | 401004-0005 | spoke assy. | 16 | /ea | $ 3.40 |
| 2-2 | 401004-0006 | spoke assy. | 16 | /ea | $ 3.40 |
| 2-3 | 401002-0002 | wheel ring | 1 | /ea | $ 51.00 |
| 3 | 404001-0019 | front brake disc | 1 | /ea | $ 30.60 |
| 4 | 903007-0009 | flange locknut | 1 | /ea | $ 10.20 |
| 5 | 902001-0068 | flat bushing | 1 | /ea | $ 6.80 |
| 6 | 901001-0028 | flange axle | 1 | /ea | $ 13.60 |
| 7 | 902001-0061 | flat bushing | 1 | /ea | $ 6.80 |
| 8 | 404011-0001 | bolts | 4 | /ea | $ 5.10 |
