| E-8 |

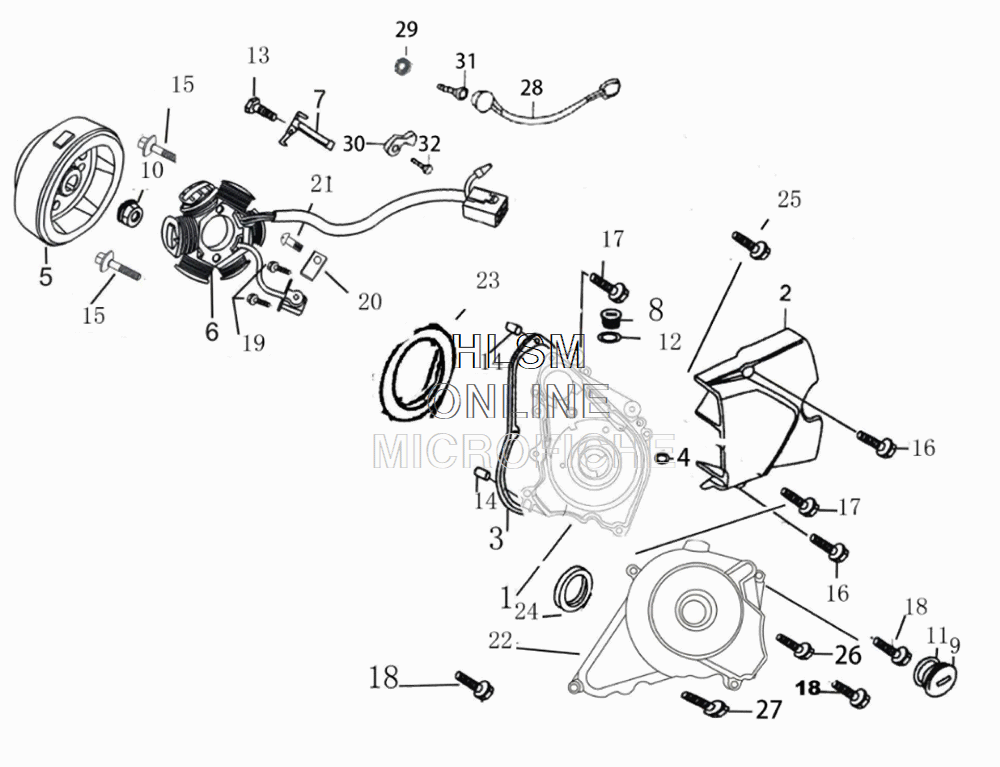

Left Crankcase Cover & Magnetic Motor |
 |
| NO. |
U8 Parts No. |
ENGLISH DESCRIPTION |
Qty/vehicle |
QTY |
Retail |
| 1 |
101018-0559 |
Left Crankcase Cover Plate |
1 |
/ea |
$ 51.00 |
| 2 |
101018-0560 |
Rear Cober.LH |
1 |
/ea |
$ 30.60 |
| 3 |
101018-0561 |
Gasket,Crankcase,LH |
1 |
/ea |
$ 17.00 |
| 4 |
101018-0562 |
O-seal ring |
1 |
/ea |
$ 6.80 |
| 5 |
101018-0563 |
Rotor,Magneto |
1 |
/ea |
$ 34.00 |
| 6 |
101018-0617 |
Stator,Magneto(EPA) |
1 |
/ea |
$ 42.50 |
| 7 |
101018-0565 |
Wire Clamp |
1 |
/ea |
$ 8.50 |
| 8 |
101018-0566 |
A.c generator cap |
1 |
/ea |
$ 8.50 |
| 9 |
101018-0567 |
hole plug |
1 |
/ea |
$ 17.00 |
| 10 |
101018-0568 |
Lock Nut |
1 |
/ea |
$ 8.50 |
| 11 |
101018-0569 |
O-ring |
1 |
/ea |
$ 8.50 |
| 12 |
101018-0570 |
O-ring |
1 |
/ea |
$ 8.50 |
| 13 |
101019-0835 |
Bolt |
1 |
/ea |
$ 6.80 |
| 14 |
101019-0088 |
Set Pin |
2 |
/ea |
$ 6.80 |
| 15 |
101019-0837 |
Bolt |
2 |
/ea |
$ 6.80 |
| 16 |
101019-0839 |
Bolt |
2 |
/ea |
$ 6.80 |
| 17 |
101019-0840 |
Bolt |
2 |
/ea |
$ 6.80 |
| 18 |
101019-0841 |
Bolt |
1 |
/ea |
$ 6.80 |
| 19 |
101019-0827 |
Screw |
2 |
/ea |
$ 6.80 |
| 20 |
101018-0571 |
Wire Clamp |
1 |
/ea |
$ 6.80 |
| 21 |
101019-0825 |
Screw |
1 |
/ea |
$ 6.80 |
| 22 |
101018-0572 |
Crankcase Cover,LH |
1 |
/ea |
$ 59.50 |
| 23 |
101018-0573 |
O-ring |
1 |
/ea |
$ 8.50 |
| 24 |
101018-0574 |
Oil seal |
1 |
/ea |
$ 17.00 |
| 25 |
101019-0847 |
Bolt |
1 |
/ea |
$ 6.80 |
| 26 |
101019-0838 |
Bolt |
1 |
/ea |
$ 6.80 |
| 27 |
101019-0843 |
Bolt |
1 |
/ea |
$ 6.80 |
| 28 |
101018-0575 |
Rubber plug |
1 |
/ea |
$ 17.00 |
| 29 |
101018-0576 |
Washer, gearshift drum |
1 |
/ea |
$ 8.50 |
| 30 |
101018-0577 |
Baffle, valve camshaft |
1 |
/ea |
$ 13.60 |
| 31 |
101017-0462 |
Hexagon head bolt （Full-thread） |
1 |
/ea |
$ 5.10 |
| 32 |
101017-0427 |
Bolt |
1 |
/ea |
$ 5.10 |
