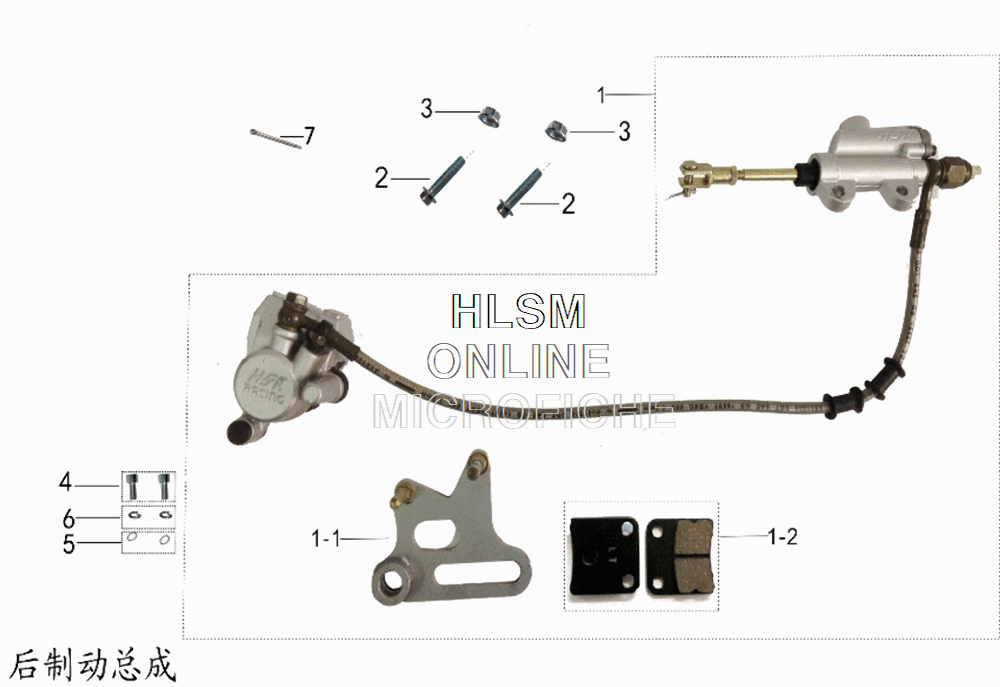

Rear Brake System
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 405000-0066-02 | rear brake assy. | 1 | /ea | $ 76.50 |
| 1-1 | 405009-0005 | rear brake bracket | 1 | /ea | $ 13.60 |
| 1-2 | 405008-0004 | rear brake pad | 1 | /ea | $ 13.60 |
| 2 | 903019-0005 | flange bolt | 2 | /ea | $ 3.40 |
| 3 | 903006-0002 | flange nut | 2 | /ea | $ 3.40 |
| 4 | 903013-0017 | screw | 2 | /ea | $ 3.40 |
| 5 | 903002-0004 | washer | 2 | /ea | $ 3.40 |
| 6 | 903001-0004 | washer | 2 | /ea | $ 3.40 |
| 7 | 904002-0001 | cotter pin | 1 | /ea | $ 3.40 |
