STEERING STEM
Click parts on table to add

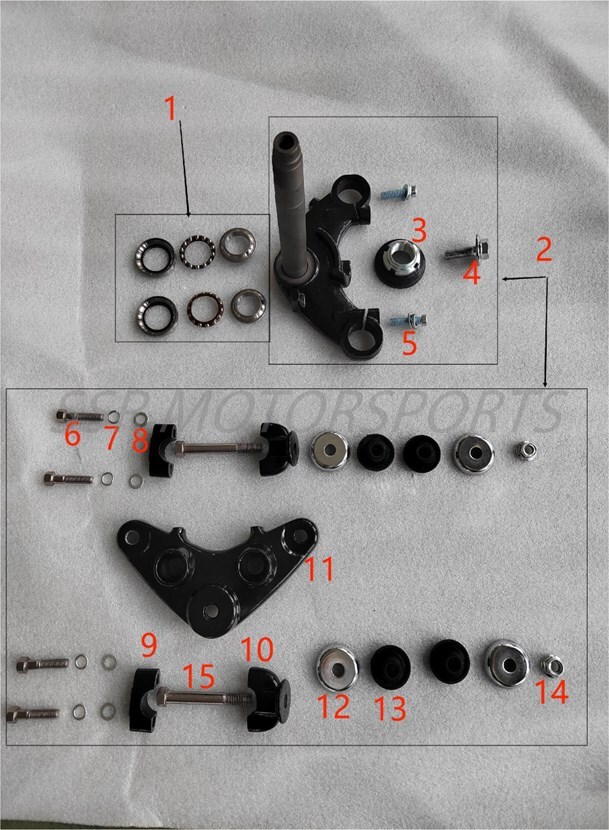

| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A00416-15-00 | STEERING STEM BEARING SET | $21.00 | 1 |
| 2 | A00417-15-00 | UPPER/LOWER TRIPLE CLAMP ASSY | $113.80 | 1 |
| 3 | A00418-15-00 | STEERING STEM NUT M22 | $3.50 | 1 |
| 4 | A00392-19-01 | SPECIAL BOLT M10X30 | $4.40 | 1 |
| 5 | A00236-15-00 | LOWER TRIPLE CLAMP W/ STEM | $68.30 | 1 |
| 6 | A00053-19-03 | HEX BOLT W/LOCK+FLAT WASHER M8X35 | $2.60 | 2 |
| 7 | A00130-19-03 | DOMED HEX BOLT M8X33 | $2.50 | 4 |
| 8 | A00001-21-02 | LOCK WASHER 8X13X2 | $2.00 | 4 |
| 9 | A00013-21-01 | WASHER 8X16X1.5 | $2.00 | 4 |
| 10 | A00413-15-00 | UPPER HANDLEBAR CLAMP | $6.10 | 2 |
| 11 | A00414-15-00 | LOWER HANDLEBAR CLAMP | $8.00 | 2 |
| 12 | A00415-15-00 | UPPER TRIPLE CLAMP | $42.00 | 2 |
| 13 | A00291-21-06 | CUPPED WASHER M10 | $2.50 | 4 |
| 14 | A00412-15-00 | RUBBER DAMPER M10 | $2.00 | 4 |
| 15 | A00004-22-34 | FLANGE LOCKNUT M10 | $2.50 | 2 |
| 16 | A00505-19-03 | HEX BOLT M10X72 | $2.60 | 2 |
