BODY
Click parts on table to add

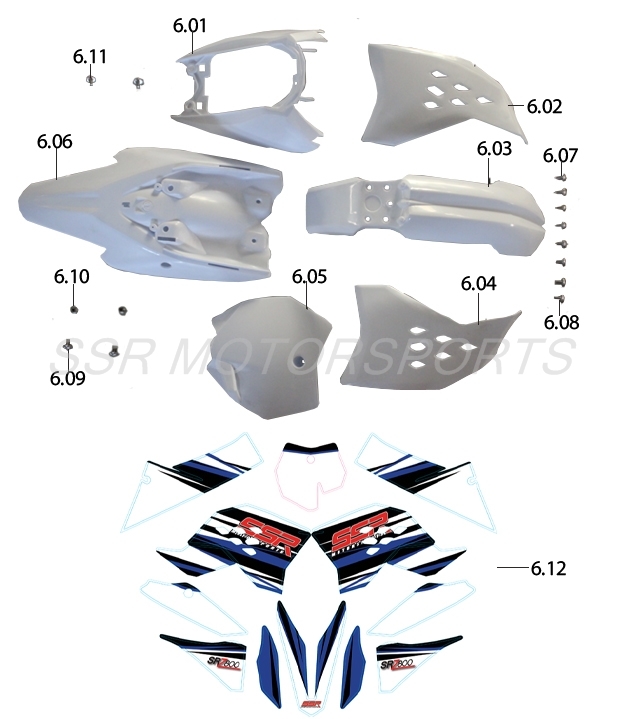

| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 6.01 | A00923-02-00 | Side Cover Assy White | $11.00 | 1 |
| 6.02 | A00924-02-00 | Left Shroud White | $8.00 | 1 |
| 6.03 | A00925-02-00 | Front Fender White | $8.00 | 1 |
| 6.04 | A00926-02-00 | Right Shroud White | $8.00 | 1 |
| 6.05 | A00927-02-00 | Front Number Plate White | $8.00 | 1 |
| 6.06 | A00928-02-00 | Rear Fender White | $18.00 | 1 |
| 6.07 | A00081-20-01 | Screw M6x16 | $1.50 | 4 |
| 6.08 | A00084-20-01 | Screw M6x12 | $1.50 | 4 |
| 6.09 | A00085-20-01 | Screw M6x20 | $1.50 | 2 |
| 6.10 | A00224-21-01 | Washer | $1.50 | 2 |
| 6.11 | A00086-20-01 | Screw M4x16 | $1.50 | 2 |
| 6.12-G | A00929-02-04 | Graphics Kit Green | $14.00 | 1 |
| 6.12-Y | A00929-02-05 | Graphics Kit Yellow | $14.00 | 1 |
| 6.12-B | A00929-02-12 | Graphics Kit Blue | $14.00 | 1 |
| 6.12-R | A00929-02-18 | Graphics Kit Red | $14.00 | 1 |
