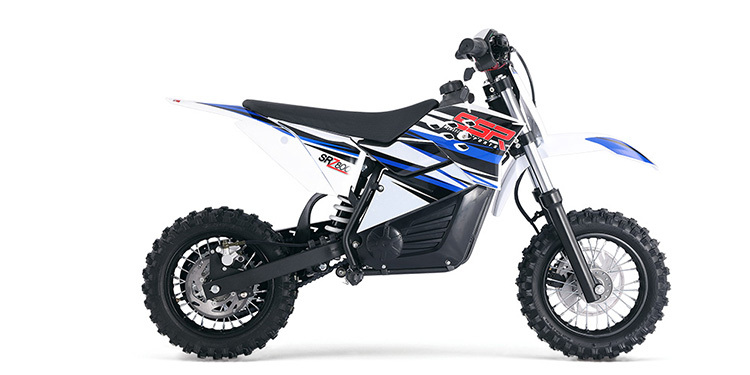

SSR SRZ800
| SRZ800 | ||||||
 |
||||||

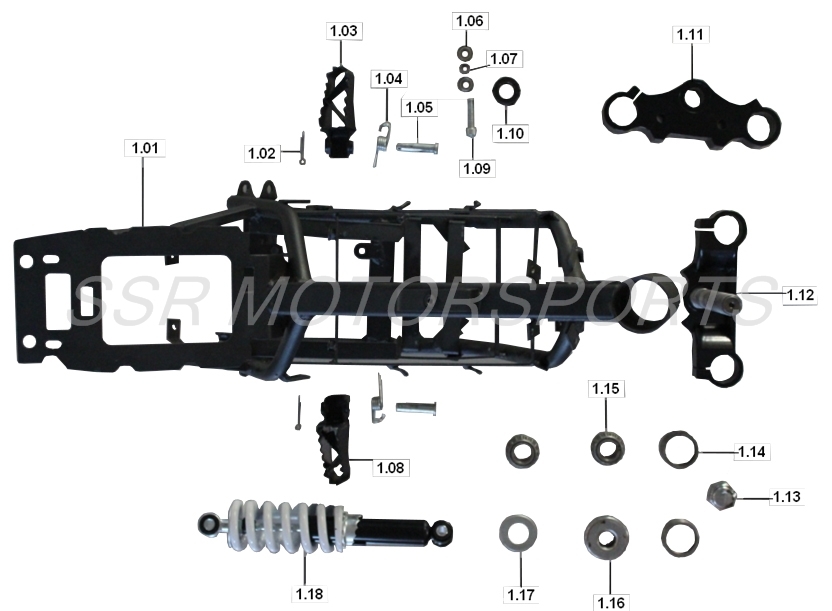

| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1.01 | A00500-11-00 | FRAME | *OVERSIZE* | 1 | Pc. | $104.00 |
| 1.02 | A00040-25-01 | COTTER PIN | 3.2X25 | 2 | Pcs. | $1.50 |
| 1.03 | A00490-05-00 | LEFT FOOTPEG | 1 | Pc. | $18.00 | |
| 1.04 | A00492-05-00 | FOOTPEG SPRING | 2 | Pcs. | $2.00 | |
| 1.05 | A00493-05-00 | FOOTPEG PIN | 2 | Pcs. | $1.50 | |
| 1.06 | A00160-28-00 | BEARING | 2 | Pcs. | $8.00 | |
| 1.07 | A00375-07-00 | BUSHING | 8.2X12X6 | 1 | Pc. | $1.50 |
| 1.08 | A00491-05-00 | RIGHT FOOTPEG | 1 | Pc. | $18.00 | |
| 1.09 | A00075-20-01 | SCREW | M8X35 | 1 | Pc. | $1.50 |
| 1.10 | A00376-07-00 | CHAIN ROLLER | 1 | Pc. | $4.00 | |
| 1.11 | A00348-15-00 | UPPER TRIPLE CLAMP | 1 | Pc. | $35.00 | |
| 1.12 | A00349-15-00 | LOWER TRIPLE CLAMP | 1 | Pc. | $39.00 | |
| 1.13 | A00101-22-01 | NUT | M20X1.5 | 1 | Pc. | $6.00 |
| 1.14 | A00161-28-00 | TAPER BEARING RACE | 2 | Pcs. | $4.00 | |
| 1.15 | A00162-28-00 | TAPER BEARING | 2 | Pcs. | $7.00 | |
| 1.16 | A00163-28-00 | BEARING CAP | 1 | Pc. | $7.00 | |
| 1.17 | A00221-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 1.18 | A00560-16-00 | REAR SHOCK | 1 | Pc. | $69.00 | |
| 1.19 | A00499-05-01 | TRIANGLE STAND | NOT PICTURED | 1 | Pc. | $18.00 |

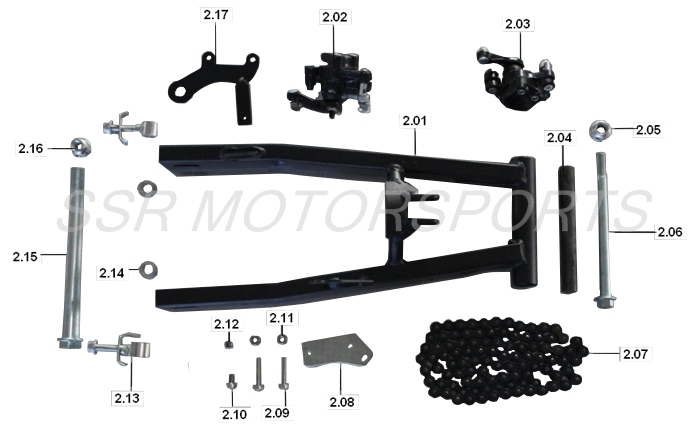

| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 2.01 | A00501-11-00 | SWINGARM | 1 | Pc. | $69.00 | |
| 2.02 | A00673-04-00 | REAR BRAKE CALIPER | 1 | Pc. | $29.00 | |
| 2.03 | A00672-04-00 | FRONT BRAKE CALIPER | 1 | Pc. | $29.00 | |
| 2.04 | A00502-11-00 | SWINGARM BUSHING | 1 | Pc. | $7.00 | |
| 2.05 | A00102-22-01 | NUT | M10 | 1 | Pc. | $1.50 |
| 2.06 | A00282-19-01 | SWINGARM BOLT | M10X160 | 1 | Pc. | $7.00 |
| 2.07 | A00377-07-00 | DRIVE CHAIN | 1 | Pc. | $18.00 | |
| 2.08 | A00378-07-00 | CHAIN GUARD BRACE | 1 | Pc. | $3.50 | |
| 2.09 | A00076-20-01 | BOLT | M5X30 | 2 | Pcs. | $1.50 |
| 2.10 | A00077-20-01 | BOLT | M5X12 | 1 | Pc. | $1.50 |
| 2.11 | A00103-22-01 | NUT | M5 | 2 | Pcs. | $1.50 |
| 2.12 | A00103-22-01 | NUT | M5 | 1 | Pc. | $1.50 |
| 2.13 | A00379-07-00 | CHAIN ADJUSTER | 2 | Pcs. | $11.00 | |
| 2.14 | A00380-07-00 | RIGHT REAR WHEEL SPACER | WIDTH: 14MM | 1 | Pcs. | $7.00 |
| 2.14-1 | A00389-07-00 | LEFT REAR WHEEL SPACER | WIDTH: 18MM | 1 | Pc. | $7.00 |
| 2.15 | A00283-19-01 | REAR AXLE | M12X190 | 1 | Pc. | $8.00 |
| 2.16 | A00104-22-01 | NUT | M12 | 1 | Pc. | $2.00 |
| 2.17 | A00665-04-00 | REAR BRAKE CALIPER MOUNT | 1 | Pc. | $4.00 | |

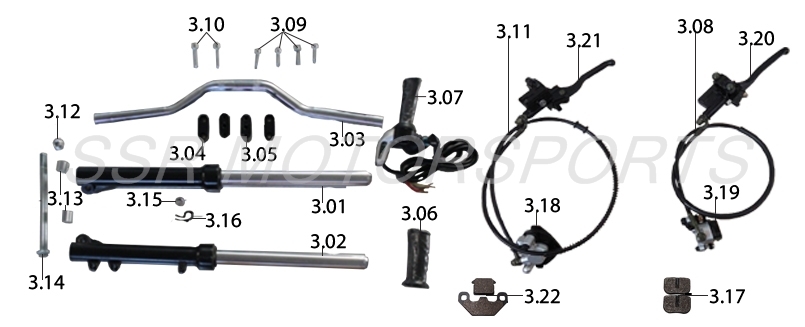

| HANDLEBAR - FORK - BRAKES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 3.01 | A00561-16-00 | LEFT FORK ASSY | 1 | Assy. | $63.00 | |
| 3.02 | A00562-16-00 | RIGHT FORK ASSY | 1 | Assy. | $63.00 | |
| 3.03 | A00494-05-00 | HANDLEBAR | 1 | Pc. | $23.00 | |
| 3.04 | A00495-05-00 | HANDLEBAR CLAMP | 2 | Pcs. | $14.00 | |
| 3.05 | A00496-05-00 | HANDLEBAR SUPPORT | 2 | Pcs. | $14.00 | |
| 3.06 | A00497-05-00 | LEFT GRIP | 1 | Pc. | $7.00 | |
| 3.07 | A00498-05-00 | THROTTLE ASSY W/ IGNITION LOCK | 1 | Assy. | $39.00 | |
| 3.08 | A00666-04-00 | FRONT BRAKE ASSY | 1 | Assy. | $59.00 | |
| 3.09 | A00078-20-01 | BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 3.10 | A00079-20-01 | BOLT | M10X40 | 2 | Pcs. | $2.00 |
| 3.11 | A00667-04-00 | REAR BRAKE ASSY | 1 | Assy. | $59.00 | |
| 3.12 | A00104-22-01 | NUT | M12 | 1 | Pc. | $2.00 |
| 3.13 | A00381-07-00 | FRONT WHEEL SPACER | 2 | Pcs. | $3.50 | |
| 3.14 | A00284-19-01 | FRONT AXLE | M12X205 | 1 | Pc. | $11.00 |
| 3.15 | A00088-20-01 | ALLEN BOLT | M5X16 | 1 | Pc. | $1.50 |
| 3.16 | A00930-02-00 | BRAKE CABLE HOLDER | 1 | Pc. | $4.00 | |
| 3.17 | A00670-04-00 | FRONT BRAKE PAD SET | 1 | Set | $14.00 | |
| 3.18 | A00672-04-00 | FRONT BRAKE CALIPER | 1 | Pc. | $29.00 | |
| 3.19 | A00673-04-00 | REAR BRAKE CALIPER | 1 | Pc. | $29.00 | |
| 3.20 | A00708-04-00 | FRONT BRAKE LEVER | 1 | Pc. | $16.00 | |
| 3.21 | A00709-04-00 | REAR BRAKE LEVER | 1 | Pc. | $16.00 | |
| 3.22 | A00710-04-00 | REAR BRAKE PAD SET | 1 | Set | $14.00 | |

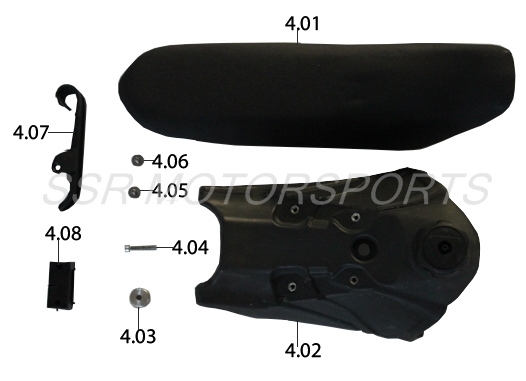

| FUEL TANK - SEAT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 4.01 | A00917-02-00 | SEAT | 1 | Pc. | $36.00 | |
| 4.02 | A00918-02-00 | TANK | 1 | Pc. | $33.00 | |
| 4.03 | A00222-21-01 | SPACER | 1 | Pc. | $2.50 | |
| 4.04 | A00080-20-01 | BOLT | M6X40 | 1 | Pc. | $1.50 |
| 4.05 | A00081-20-01 | BOLT | M6X16 | 1 | Pc. | $1.50 |
| 4.06 | A00223-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 4.07 | A00382-07-00 | CHAIN SLIDER | 1 | Pc. | $11.00 | |
| 4.08 | A00383-07-00 | REAR CHAIN GUIDE | 1 | Pc. | $4.00 | |

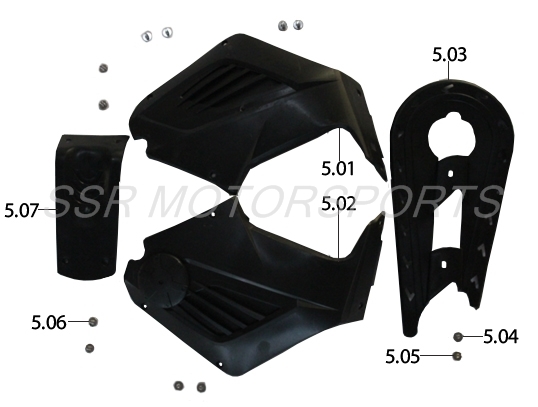

| BATTERY COVERS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 5.01 | A00919-02-00 | LEFT BATTERY COVER | 1 | Pc. | $13.00 | |
| 5.02 | A00920-02-00 | RIGHT BATTERY COVER | 1 | Pc. | $13.00 | |
| 5.03 | A00921-02-00 | CHAIN COVER | 1 | Pc. | $11.00 | |
| 5.04 | A00081-20-01 | BOLT | M6X16 | 1 | Pc. | $1.50 |
| 5.05 | A00082-20-01 | BOLT | M6X25 | 1 | Pc. | $1.50 |
| 5.06 | A00083-20-01 | BOLT | M5X14 | 10 | Pcs. | $1.50 |
| 5.07 | A00922-02-00 | FRONT BATTERY COVER | 1 | Pc. | $10.00 | |

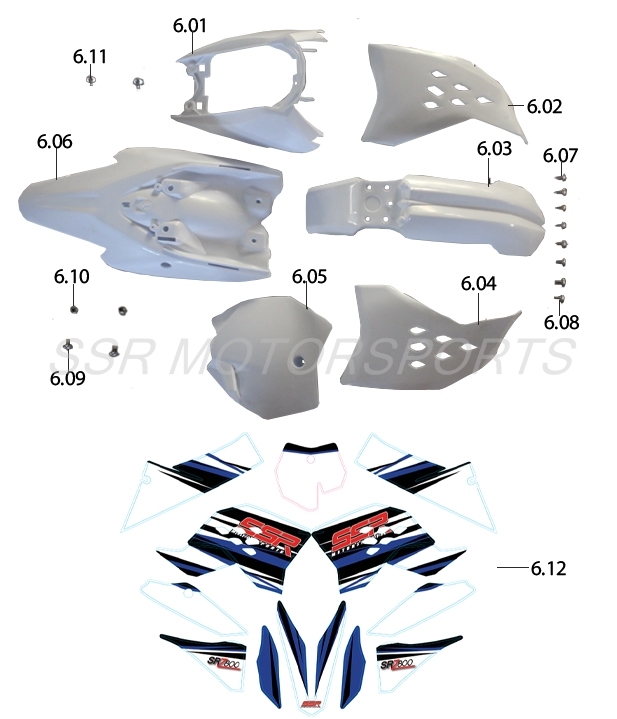

| BODY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 6.01 | A00923-02-00 | SIDE COVER ASSY | WHITE | 1 | Assy. | $11.00 |
| 6.02 | A00924-02-00 | LEFT SHROUD | WHITE | 1 | Pc. | $8.00 |
| 6.03 | A00925-02-00 | FRONT FENDER | WHITE | 1 | Pc. | $8.00 |
| 6.04 | A00926-02-00 | RIGHT SHROUD | WHITE | 1 | Pc. | $8.00 |
| 6.05 | A00927-02-00 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $8.00 |
| 6.06 | A00928-02-00 | REAR FENDER | WHITE | 1 | Pc. | $18.00 |
| 6.07 | A00081-20-01 | BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 6.08 | A00084-20-01 | BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 6.09 | A00085-20-01 | BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 6.10 | A00224-21-01 | WASHER | 2 | Pcs. | $1.50 | |
| 6.11 | A00086-20-01 | BOLT | M4X16 | 2 | Pcs. | $1.50 |
| 6.12 | A00929-02-04 | GRAPHICS KIT | GREEN | 1 | Kit | $14.00 |
| 6.12 | A00929-02-05 | GRAPHICS KIT | YELLOW | 1 | Kit | $14.00 |
| 6.12 | A00929-02-12 | GRAPHICS KIT | BLUE | 1 | Kit | $14.00 |
| 6.12 | A00929-02-18 | GRAPHICS KIT | RED | 1 | Kit | $14.00 |

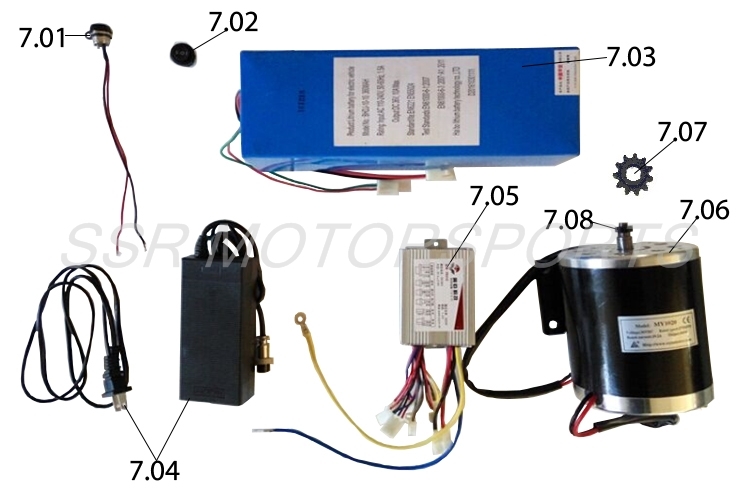

| ELECTRICAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 7.01 | A00583-08-00 | CHARGING PORT | 1 | Pc. | $11.00 | |
| 7.02 | A00584-08-00 | HIGH/LOW SWITCH | 1 | Pc. | $8.00 | |
| 7.03 | A00585-08-00 | LITHIUM BATTERY | 1 | Pc. | $319.00 | |
| 7.04 | A00587-08-00 | BATTERY CHARGER | 1 | Pc. | $51.00 | |
| 7.05 | A00588-08-00 | CONTROLLER | 1 | Pc. | $51.00 | |
| 7.06 | A00589-08-00 | MOTOR | 1 | Pc. | $168.00 | |
| 7.07 | A00388-07-00 | FRONT SPROCKET | 11T | 1 | Pc. | $13.00 |
| 7.08 | A00321-22-01 | FRONT SPROCKET NUT | L.H. THREAD | 1 | Pc. | $1.50 |

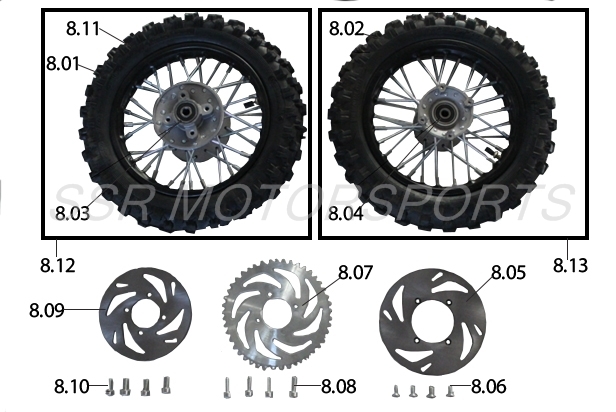

| WHEELS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 8.01 | A00500-18-00 | REAR TIRE | 2.50-10 | 1 | Pc. | $29.00 |
| 8.02 | A00501-18-00 | FRONT TIRE | 2.50-10 | 1 | Pc. | $29.00 |
| 8.03 | A00502-18-00 | REAR WHEEL W/ HUB | 1 | Assy. | $59.00 | |
| 8.04 | A00503-18-00 | FRONT WHEEL W/ HUB | 1 | Assy. | $59.00 | |
| 8.05 | A00668-04-00 | FRONT BRAKE ROTOR | 1 | Pc. | $29.00 | |
| 8.06 | A00092-20-01 | CS ALLEN BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 8.07 | A00384-07-00 | REAR SPROCKET | 45T | 1 | Pc. | $29.00 |
| 8.08 | A00078-20-01 | BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 8.09 | A00669-04-00 | REAR BRAKE ROTOR | 1 | Pc. | $29.00 | |
| 8.10 | A00087-20-01 | BOLT | M8X20 | 4 | Pcs. | $1.50 |
| 8.11 | A00219-18-00 | INNERTUBE | 2.50-10 | 2 | Pcs. | $14.00 |
| 8.12 | A00510-18-00 | REAR WHEEL ASSY | 10" | 1 | Assy. | $89.00 |
| 8.13 | A00511-18-00 | FRONT WHEEL ASSY | 10" | 1 | Assy. | $89.00 |
