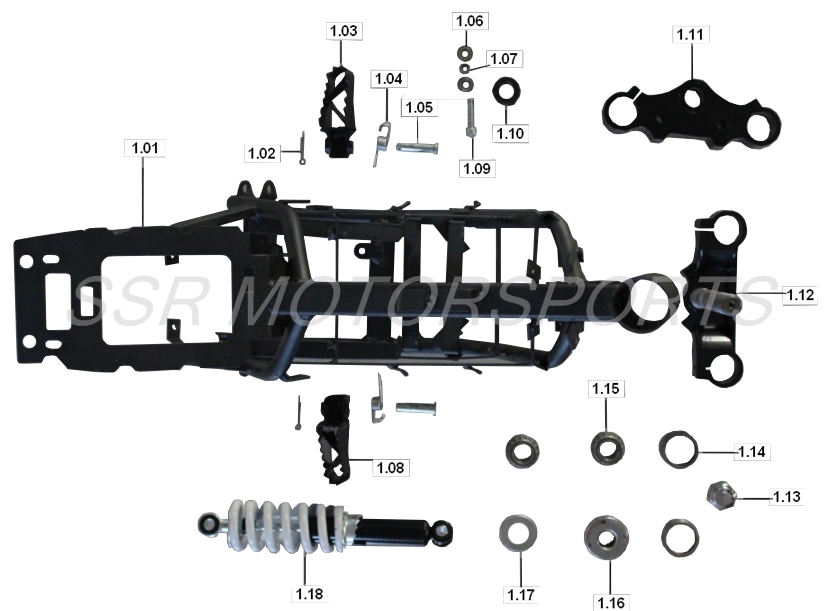

FRAME
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1.01 | A00500-11-00 | Frame | $104.00 | 1 |
| 1.02 | A00040-25-01 | Cotter Pin 3.2x25 | $1.50 | 2 |
| 1.03 | A00490-05-00 | Left Footpeg | $18.00 | 1 |
| 1.04 | A00492-05-00 | Footpeg Spring | $2.00 | 2 |
| 1.05 | A00493-05-00 | Footpeg Pin | $1.50 | 2 |
| 1.06 | A00160-28-00 | Bearing 698ZZ | $8.00 | 2 |
| 1.07 | A00375-07-00 | Bushing | $1.50 | 1 |
| 1.08 | A00491-05-00 | Right Footpeg | $18.00 | 1 |
| 1.09 | A00075-20-01 | Screw M8x35 | $1.50 | 1 |
| 1.10 | A00376-07-00 | Chain Roller | $4.00 | 1 |
| 1.11 | A00348-15-00 | Upper Triple Clamp | $35.00 | 1 |
| 1.12 | A00349-15-00 | Lower Triple Clamp | $39.00 | 1 |
| 1.13 | A00101-22-01 | Nut M20x1.5 | $6.00 | 1 |
| 1.14 | A00161-28-00 | Taper Bearing Race | $4.00 | 2 |
| 1.15 | A00162-28-00 | Taper Bearing | $7.00 | 2 |
| 1.16 | A00163-28-00 | Bearing Cap | $7.00 | 1 |
| 1.17 | A00221-21-01 | Washer | $1.50 | 1 |
| 1.18 | A00560-16-00 | Rear Shock | $69.00 | 1 |
| 1.19 | A00499-05-01 | Triangle Stand | $18.00 | 1 |
