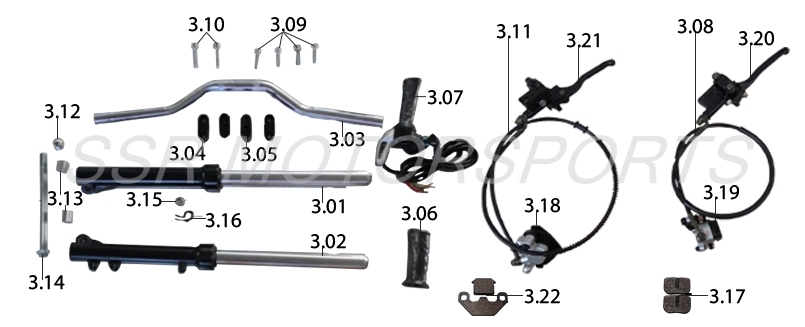

HANDLEBAR - FORK - BRAKES
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 3.01 | A00561-16-00 | Left Fork Assy | $63.00 | 1 |
| 3.02 | A00562-16-00 | Right Fork Assy | $63.00 | 1 |
| 3.03 | A00494-05-00 | Handlebar | $23.00 | 1 |
| 3.04 | A00495-05-00 | Handlebar Clamp | $14.00 | 2 |
| 3.05 | A00496-05-00 | Handlebar Support | $14.00 | 2 |
| 3.06 | A00497-05-00 | Left Grip | $7.00 | 1 |
| 3.07 | A00498-05-00 | Throttle Assy | $39.00 | 1 |
| 3.08 | A00666-04-00 | Front Brake Assy | $59.00 | 1 |
| 3.09 | A00078-20-01 | Bolt M8x25 | $1.50 | 4 |
| 3.10 | A00079-20-01 | Screw M10x40 | $2.00 | 2 |
| 3.11 | A00667-04-00 | Rear Brake Assy | $59.00 | 1 |
| 3.12 | A00104-22-01 | Nut M12 | $2.00 | 1 |
| 3.13 | A00381-07-00 | Front Wheel Spacer | $3.50 | 2 |
| 3.14 | A00284-19-01 | Front Axle | $11.00 | 1 |
| 3.15 | A00088-20-01 | Allen Screw M5x16 | $1.50 | 1 |
| 3.16 | A00930-02-00 | Brake Cable Holder | $4.00 | 1 |
| 3.17 | A00670-04-00 | Front Brake Pad Set | $14.00 | 1 |
| 3.18 | A00672-04-00 | Front Brake Caliper | $29.00 | 1 |
| 3.19 | A00673-04-00 | Rear Brake Caliper | $29.00 | 1 |
| 3.20 | A00708-04-00 | Front Brake Lever | $16.00 | 1 |
| 3.21 | A00709-04-00 | Rear Brake Lever | $16.00 | 1 |
| 3.22 | A00710-04-00 | Rear Brake Pad Set | $14.00 | 1 |
