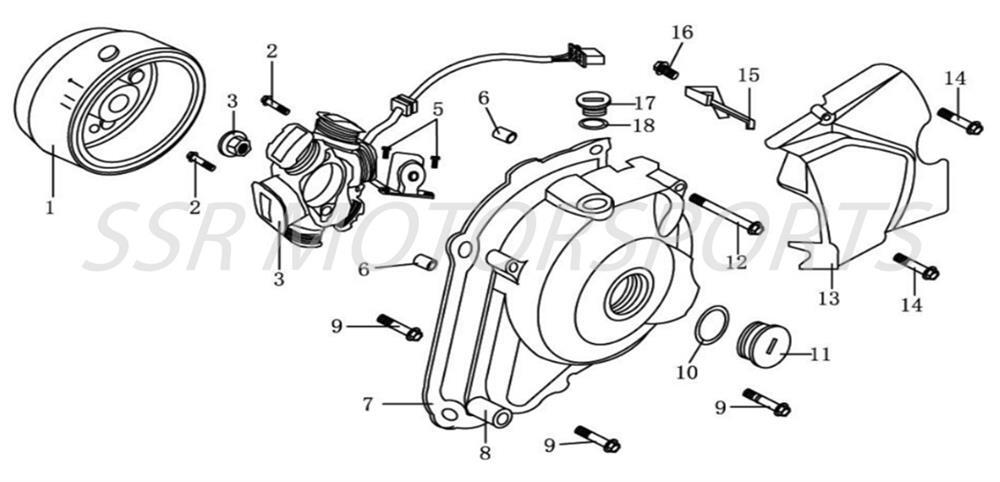

Name |
Part Number |
Price |
Qty |
| 1 |
FLYWHEEL YX 5 POLE STATOR |
A02921-09-00 |
$63.00 |
1 |
| 2 |
CASE FLANGE BOLT M6X20 |
A00419-19-08 |
$1.50 |
2 |
| 3 |
STATOR PLATE ASSY BANGEN |
A02711-09-00 |
$85.00 |
1 |
| 4 |
SPECIAL NUT M10X1.25 TALL FLANGE |
A00005-22-08 |
$1.50 |
1 |
| 5 |
HEX BOLT M5X16 |
A00032-19-03 |
$1.50 |
2 |
| 6 |
DOWEL PIN M8X12 |
A00003-23-00 |
$1.50 |
2 |
| 7 |
STATOR COVER GASKET |
A00244-13-00 |
$10.00 |
1 |
| 8 |
STATOR COVER |
A02514-09-00 |
$48.00 |
1 |
| 9 |
CASE FLANGE BOLT M6X35 |
A00425-19-08 |
$1.50 |
3 |
| 10 |
O-RING 27.4X2.4 |
A00055-27-00 |
$1.50 |
1 |
| 11 |
CRANK INSPECTION PLUG |
A02310-09-00 |
$14.00 |
1 |
| 12 |
CASE FLANGE BOLT M6X50 |
A00428-19-08 |
$1.50 |
1 |
| 13 |
COUNTERSHAFT SPROCKET COVER |
A03327-09-00 |
$23.00 |
1 |
| 14 |
CASE FLANGE BOLT M6X28 |
A00422-19-08 |
$1.50 |
2 |
| 15 |
STATOR WIRE CLAMP |
A02509-09-00 |
$2.50 |
1 |
| 16 |
CASE FLANGE BOLT M6X12 |
A00445-19-08 |
$1.50 |
1 |
| 17 |
TIMING PLUG |
A02512-09-00 |
$4.00 |
1 |
| 18 |
O-RING 13.8X2.5 |
A00056-27-00 |
$2.50 |
1 |
