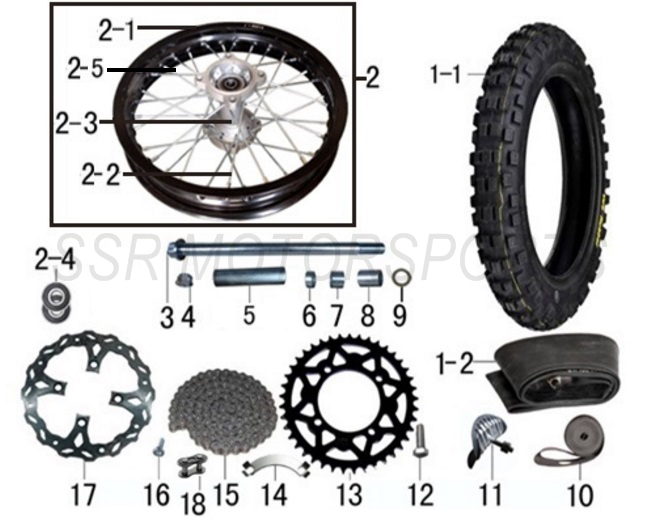

Rear Wheel
| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1-1 | A00599-18-00 | REAR TIRE | 90/100-14 INNOVA | 1 | Pc. | $76.00 |
| 1-2 | A00547-18-00 | INNER TUBE | 2.50/3.60-14 | 1 | Pc. | $18.00 |
| 2 | A00234-18-00 | REAR WHEEL ASSY | 1.85-14 | 1 | Assy. | $119.00 |
| 2-1 | A00391-18-00 | REAR RIM | 1.85-14 | 1 | Pc. | $59.00 |
| 2-2 | A00392-18-00 | REAR INNER SPOKE W/ NIPPLE | 153MM | 16 | Pcs. | $2.00 |
| 2-3 | A00393-18-00 | REAR WHEEL HUB | 1 | Pc. | $83.00 | |
| 2-4 | A00017-28-00 | WHEEL BEARING | 6202-2RS | 2 | Pcs. | $7.00 |
| 2-5 | A00570-18-00 | REAR OUTER SPOKE W/ NIPPLE | 156MM | 16 | Pcs. | $2.00 |
| 3 | A00239-18-00 | REAR WHEEL AXLE | M14X240 | 1 | Pc. | $35.00 |
| 4 | A00003-22-34 | FLANGE LOCKNUT | M14X1.5 | 1 | Pc. | $2.50 |
| 5 | A00236-18-00 | BEARING SPACER SLEEVE | 15X25X84 | 1 | Pc. | $7.00 |
| 6 | A00226-18-00 | REAR WHEEL SPACER | 15X22X10 | 1 | Pc. | $4.00 |
| 7 | A00235-18-00 | REAR WHEEL SPACER | 15X22X22 | 1 | Pc. | $4.00 |
| 8 | A00394-18-00 | REAR WHEEL SPACER | 15X22X45 | 1 | Pc. | $4.00 |
| 9 | A00101-21-01 | WASHER | 15*28*2 | 1 | Pc. | $1.50 |
| 10 | A00400-18-00 | RIM STRIP | 14" | 1 | Pc. | $8.00 |
| 11 | A00264-18-00 | RIM LOCK | 1.85 | 1 | Pc. | $13.00 |
| 12 | A00004-19-03 | BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 13 | A00444-07-00 | REAR SPROCKET | 428X48T | 1 | Pc. | $39.00 |
| 14 | A00358-07-00 | SPROCKET BOLT LOCK | 2 | Pcs. | $3.50 | |
| 15 | A00445-07-00 | DRIVE CHAIN | 428-130L | 1 | Pc. | $60.00 |
| 16 | A00034-19-10 | ROTOR BOLT | M8X16 | 4 | Pcs. | $1.50 |
| 17 | A00422-04-00 | REAR BRAKE ROTOR | 190MM | 1 | Pc. | $41.00 |
| 18 | A00350-07-00 | CHAIN LINK | 428 | 1 | Pc. | $4.00 |
