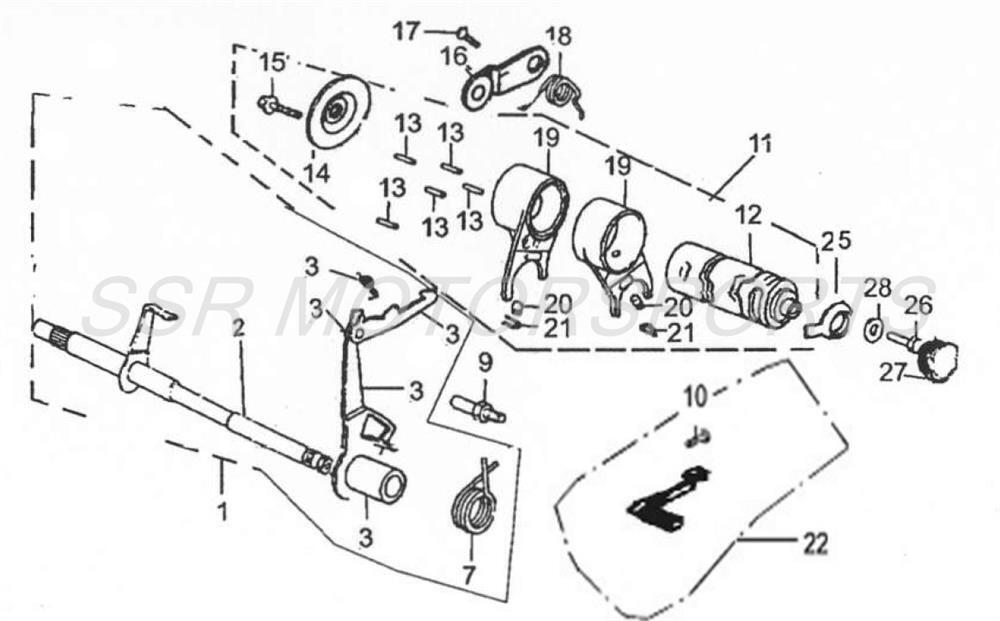

Gearshift Drum
Click parts on table to add
| # | Part # | Description | Price | Qty |
|---|---|---|---|---|
| 1 | A02894-09-00 | GEARSHIFT SHAFT ASSY | $68.30 | 1 |
| 2 | A02895-09-00 | GEARSHIFT SHAFT | $40.30 | 1 |
| 3 | A02896-09-00 | GEAR SHIFT ARM ASSY | $28.00 | 1 |
| 4 | A02897-09-00 | PRIMARY SHIFTER | $11.00 | 1 |
| 5 | A02898-09-00 | GEARSHIFT ARM | $14.00 | 1 |
| 6 | A01137-09-00 | SHIFTER ARM SPRING | $2.00 | 1 |
| 7 | A01138-09-00 | GEARSHIFT SPRING | $2.50 | 1 |
| 8 | A02899-09-00 | GEARSHIFT SHAFT SLEEVE | $4.00 | 1 |
| 9 | A01140-09-00 | RETURN SPRING STOPPER | $2.60 | 1 |
| 10 | A00001-19-01 | FLANGE BOLT M6X30 | $2.00 | 1 |
| 11 | A01141-09-00 | GEARSHIFT DRUM ASSY | $68.30 | 1 |
| 12 | A01142-09-00 | GEARSHIFT DRUM | $45.50 | 1 |
| 13 | A01143-09-00 | PIN M4x13 | $2.00 | 5 |
| 14 | A01144-09-00 | GEAR PIN PLATE | $6.10 | 1 |
| 15 | A00031-19-01 | FLANGE BOLT M6X12 | $2.00 | 1 |
| 16 | A01145-09-00 | GEAR SETTING ARM NOTE: BOLT ATTACHED | $8.80 | 1 |
| 17 | A00002-19-06 | BOLT M6x22 | $2.00 | 1 |
| 18 | A01147-09-00 | TORSION SETTING PLATE SPRING | $2.00 | 1 |
| 19 | A01148-09-00 | SHIFT FORK | $12.30 | 2 |
| 20 | A01149-09-00 | STRIKING PIN | $2.00 | 2 |
| 21 | A01150-09-00 | CLIP | $2.00 | 2 |
| 22 | A00567-05-00 | GEARSHIFT LEVER ASSY OAL: 130MM/30MM | $28.00 | 1 |
| 25 | A02900-09-00 | RETAINER PLATE | $4.40 | 1 |
| 26 | A00006-20-01 | PHILLIPS BOLT M6X12 | $2.00 | 1 |
| 27 | A01151-09-00 | RUBBER PLUG | $2.60 | 1 |
| 28 | A00011-21-01 | WASHER M6X18X1.5 | $2.00 | 1 |
