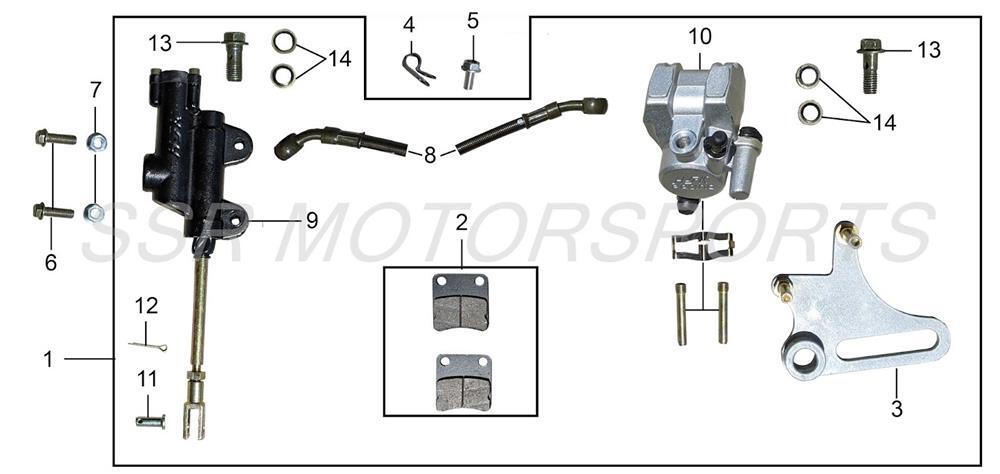

Rear Brake System
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00500-04-00 | REAR BRAKE ASSY | L=580 (INCLUDES #2) | 1 | Assy. | $103.00 |
| 2 | A00478-04-00 | REAR BRAKE PAD SET | 1 | Set | $18.00 | |
| 3 | A00502-04-00 | REAR CALIPER BRACKET | 190 | 1 | Pc. | $23.00 |
| 4 | A00523-04-00 | REAR BRAKE HOSE RETAINER | 2 | Pcs. | $2.00 | |
| 5 | A00031-19-01 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 6 | A00418-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 8 | A00554-04-00 | REAR BRAKE HOSE | L=580 | 1 | Pc. | $21.00 |
| 9 | A00585-04-00 | REAR BRAKE MASTER CYLINDER | 1 | Assy. | $76.00 | |
| 10 | A00586-04-00 | REAR BRAKE CALIPER | 1 | Assy. | $85.00 | |
| 11 | A00417-04-00 | REAR BRAKE PIN | 1 | Pc. | $1.50 | |
| 12 | A00007-25-01 | COTTER PIN | 1 | Pc. | $1.50 | |
| 13 | A00675-04-00 | BANJO BOLT | M8 | 2 | Pcs. | $2.00 |
| 14 | A00676-04-00 | SEALING WASHER | M8 | 4 | Pcs. | $1.50 |
