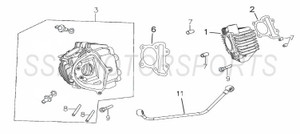

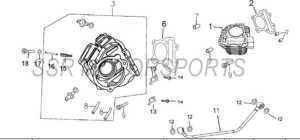

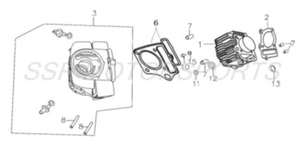

Cylinder Head & Cylinder
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |

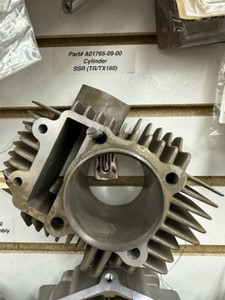

| 1 | A01765-09-00 | CYLINDER | 1 | Pc. | $115.00 | |
| 2 | A00170-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $11.00 | |
| 3 | A01766-09-00 | CYLINDER HEAD ASSY | W/ VALVES | 1 | Assy. | $260.00 |
| 4 | A01767-09-00 | INTAKE VALVE GUIDE | 1 | Pc. | $7.00 | |
| 5 | A01768-09-00 | EXHAUST VALVE GUIDE | 1 | Pc. | $7.00 | |
| 6 | A00171-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $11.00 | |
| 7 | A00002-23-00 | DOWEL PIN | 10X14 | 4 | Pcs. | $1.50 |
| 8 | A00019-19-04 | STUD | M6X38 | 2 | Pcs. | $1.50 |
| 9 | A01769-09-00 | OIL PIPE BOLT | M8x25 | 2 | Pcs. | $1.50 |
| 10 | A00042-27-00 | O-RING | 9X1.6 | 2 | Pcs. | $1.50 |
| 11 | A02724-09-00 | OIL PIPE | 1 | Pc. | $14.00 |
