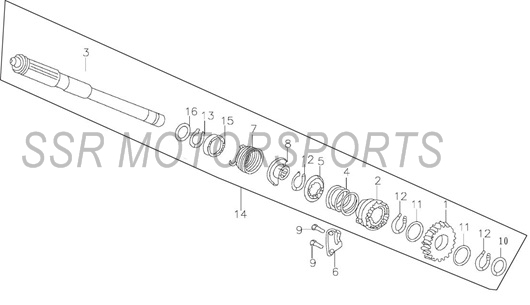

Kickstart Assembly
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01857-09-00 | KICKSTARTER GEAR | 1 | Pc. | $26.00 | |
| 2 | A01858-09-00 | KICKSTARTER RATCHET WHEEL | 1 | Pc. | $18.00 | |
| 3 | A01859-09-00 | KICKSTARTER SHAFT | 1 | Pc. | $42.00 | |
| 4 | A01860-09-00 | SPRING | 1 | Pc. | $2.00 | |
| 5 | A01861-09-00 | RATCHET WASHER | 1 | Pc. | $2.50 | |
| 6 | A01862-09-00 | RATCHET WHEEL GUIDE RUNNER | 1 | Pc. | $6.00 | |
| 7 | A01863-09-00 | STARTING SHAFT SPRING | 1 | Pc. | $2.50 | |
| 8 | A01864-09-00 | STARTING SHAFT SPRING PLATE | 1 | Pc. | $8.00 | |
| 9 | A00006-19-01 | FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 10 | A01123-09-00 | WASHER I | 1 | Pc. | $1.50 | |
| 11 | A01129-09-00 | WASHER II | 2 | Pcs. | $1.50 | |
| 12 | A01130-09-00 | CIRCLIP | 2 | Pcs. | $1.50 | |
| 13 | A01131-09-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 14 | A01865-09-00 | KICKSTARTER SHAFT ASSY | 1 | Assy. | $98.00 | |
| 15 | A01866-09-00 | SPRING COVER | 1 | Pc. | $4.00 | |
| 16 | A00120-21-01 | WASHER | 2 | Pcs. | $1.50 |
