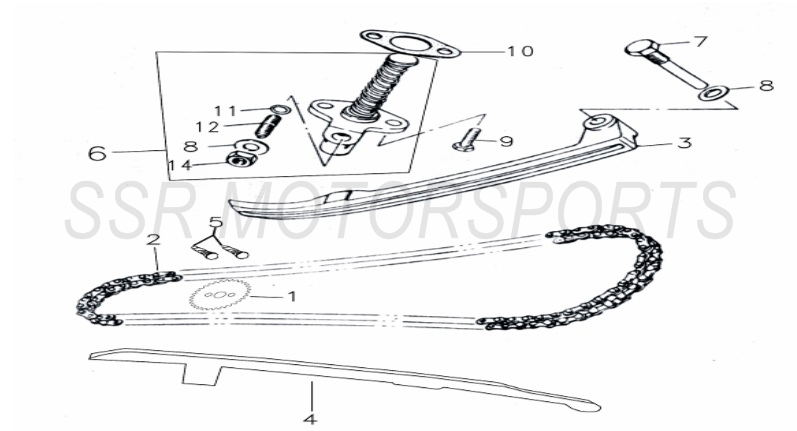

Timing Chain
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01787-09-00 | CAM SPROCKET | 1 | Pc. | $21.00 | |
| 2 | A01788-09-00 | TIMING CHAIN | 1 | Pc. | $63.00 | |
| 3 | A01789-09-00 | UPPER TENSIONER GUIDE | 1 | Pc. | $14.00 | |
| 4 | A01790-09-00 | LOWER TENSIONER GUIDE | 1 | Pc. | $14.00 | |
| 5 | A00011-19-03 | BOLT | M6X14 | 2 | Pcs. | $1.50 |
| 6 | A01791-09-00 | CAM CHAIN TENSIONER ASSY | 1 | Assy. | $14.00 | |
| 7 | A01792-09-00 | UPPER CHAIN SLIDER PIVOT BOLT | 1 | Pc. | $2.00 | |
| 8 | A00004-21-01 | WASHER | M8 | 2 | Pcs. | $1.50 |
| 9 | A00016-19-03 | BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 10 | A00175-13-00 | CAM CHAIN TENTIONER GASKET | 1 | Pc. | $2.50 | |
| 11 | A00097-27-00 | O-RING | 1 | Pc. | $1.50 | |
| 12 | A01793-09-00 | ADJUSTER BOLT | 1 | Pc. | $1.50 | |
| 14 | A00002-22-01 | NUT | M8 | 1 | Pc. | $1.50 |
