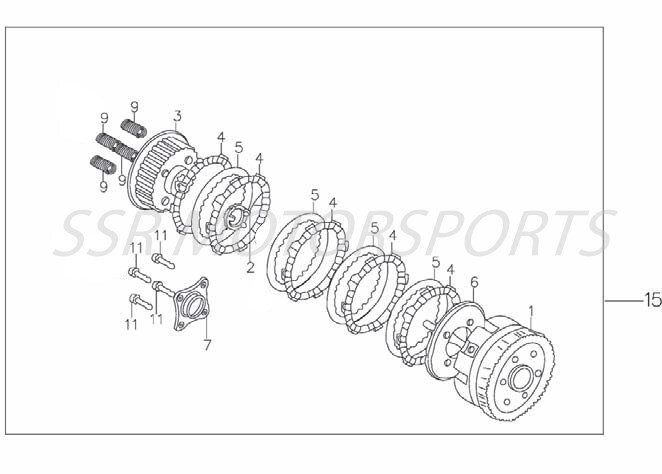

Clutch Assembly
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01829-09-00 | CLUTCH BASKET | 1 | Pc. | $59.00 | |
| 2 | A01830-09-00 | HOLDING RING | 1 | Pc. | $8.00 | |
| 3 | A01831-09-00 | CLUTCH HUB | 1 | Pc. | $36.00 | |
| 4 | A01832-09-00 | CLUTCH FRICTION PLATE | 5 | Pcs. | $14.00 | |
| 5 | A01833-09-00 | CLUTCH STEEL PLATE | 4 | Pcs. | $10.00 | |
| 6 | A01834-09-00 | CLUTCH PRESSURE PLATE | 1 | Pc. | $27.00 | |
| 7 | A01835-09-00 | CLUTCH SPRING RETAINER | 1 | Pc. | $18.00 | |
| 8 | A00120-28-00 | BEARING | 1 | Pc. | $8.00 | |
| 9 | A01836-09-00 | CLUTCH SPRING | 4 | Pcs. | $2.00 | |
| 10 | A01837-09-00 | CLUTCH PUSH ROD | 1 | Pc. | $6.00 | |
| 11 | A00139-19-01 | FLANGE BOLT | 4 | Pcs. | $1.50 | |
| 12 | A00034-22-01 | NUT | 1 | Pc. | $2.50 | |
| 13 | A00118-21-01 | WASHER | 1 | Pc. | $1.50 | |
| 14 | A01838-09-00 | SPLINED SHAFT WASHER | 1 | Pc. | $2.50 | |
| 15 | A01839-09-00 | CLUTCH ASSY | 1 | Assy. | $115.00 |
