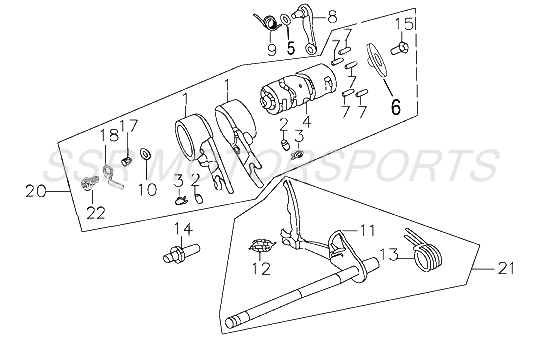

Shifting Mechanism
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01840-09-00 | SHIFT FORK | 2 | Pcs. | $11.00 | |
| 2 | A01841-09-00 | GUIDE PIN | 2 | Pc. | $1.50 | |
| 3 | A01842-09-00 | SPRING CLIP | 2 | Pc. | $1.50 | |
| 4 | A01843-09-00 | SHIFT DRUM | 1 | Pc. | $42.00 | |
| 5 | A01844-09-00 | LOCK WASHER | 1 | Pc. | $7.00 | |
| 6 | A01845-09-00 | SHIFTER PIN BAFFLE | 1 | Pc. | $7.00 | |
| 7 | A01846-09-00 | SHIFTER PIN | 5 | Pcs. | $1.50 | |
| 8 | A01847-09-00 | SHIFTER ACTUATOR | 1 | Pc. | $8.00 | |
| 9 | A01848-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 10 | A00267-21-03 | GROUNDING WASHER | 1 | Pc. | $6.00 | |
| 11 | A01849-09-00 | SHIFT SHAFT | 1 | Pc. | $60.00 | |
| 12 | A01850-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 13 | A01851-09-00 | RETURN SPRING | 1 | Pc. | $2.00 | |
| 14 | A01852-09-00 | RETAINER PIN | 1 | Pc. | $2.50 | |
| 15 | A00031-19-01 | BOLT | M6X12 | 1 | Pc. | $1.50 |
| 17 | A01853-09-00 | SWITCH PLUG | 1 | Pc. | $1.50 | |
| 18 | A00406-17-00 | RUBBER PLUG | 1 | Pc. | $1.50 | |
| 20 | A01855-09-00 | SHIFT DRUM ASSY | 1 | Assy. | $85.00 | |
| 21 | A01856-09-00 | SHIFTING SUBASSEMBLY | 1 | Assy. | $63.00 |
