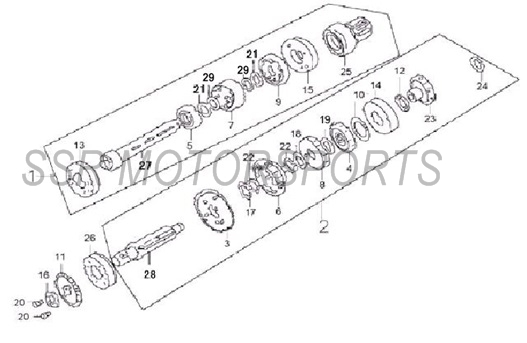

Transmission
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00407-17-00 | MAIN SHAFT ASSY | 1 | Assy. | $115.00 | |
| 2 | A00408-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $115.00 | |
| 3 | A00409-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 4 | A00410-17-00 | GEAR | 1 | Pc. | $10.00 | |
| 5 | A00411-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 6 | A00412-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 7 | A00413-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 8 | A00414-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 9 | A00415-17-00 | GEAR | 1 | Pc. | $18.00 | |
| 10 | A00241-21-01 | WASHER | 1 | Pc. | $6.00 | |
| 11 | A00309-07-00 | COUNTERSHAFT SPROCKET | 15T | 1 | Pc. | $21.00 |
| 11 | A00400-07-00 | COUNTERSHAFT SPROCKET | 16T OPT. | 1 | Pc. | $21.00 |
| 12 | A00242-21-01 | WASHER | 1 | Pc. | $2.00 | |
| 13 | A00003-28-00 | BEARING | 6001 | 1 | Pc. | $8.00 |
| 14 | A00094-28-00 | BEARING | 152712 | 1 | Pc. | $8.00 |
| 15 | A00008-28-00 | BEARING | 6203 | 1 | Pc. | $27.00 |
| 16 | A00214-17-00 | SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 17 | A00244-21-01 | SPLINED SHAFT WASHER | 1 | Pc. | $2.00 | |
| 18 | A00245-21-01 | SPLINED SHAFT WASHER | 1 | Pc. | $2.00 | |
| 19 | A00246-21-01 | WASHER | 1 | Pc. | $2.00 | |
| 20 | A00031-19-03 | BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 21 | A00335-17-00 | SPLINED SHAFT WASHER | 2 | Pcs. | $2.00 | |
| 22 | A00336-17-00 | SHIELD RING | 2 | Pcs. | $2.00 | |
| 23 | A00337-17-00 | STARTER IDLER GEAR | 22T | 1 | Pc. | $21.00 |
| 24 | A00364-17-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 25 | A00338-17-00 | CLUTCH GEAR SLEEVE | 13T | 1 | Pc. | $21.00 |
| 26 | A00095-28-00 | BEARING | 6303X3 | 1 | Pc. | $10.00 |
| 27 | A00416-17-00 | MAINSHAFT | 1 | Pc. | $85.00 | |
| 28 | A00417-17-00 | COUNTERSHAFT | 1 | Pc. | $85.00 | |
| 29 | A00247-21-01 | CIRCLIP | 2 | Pcs. | $1.50 |
