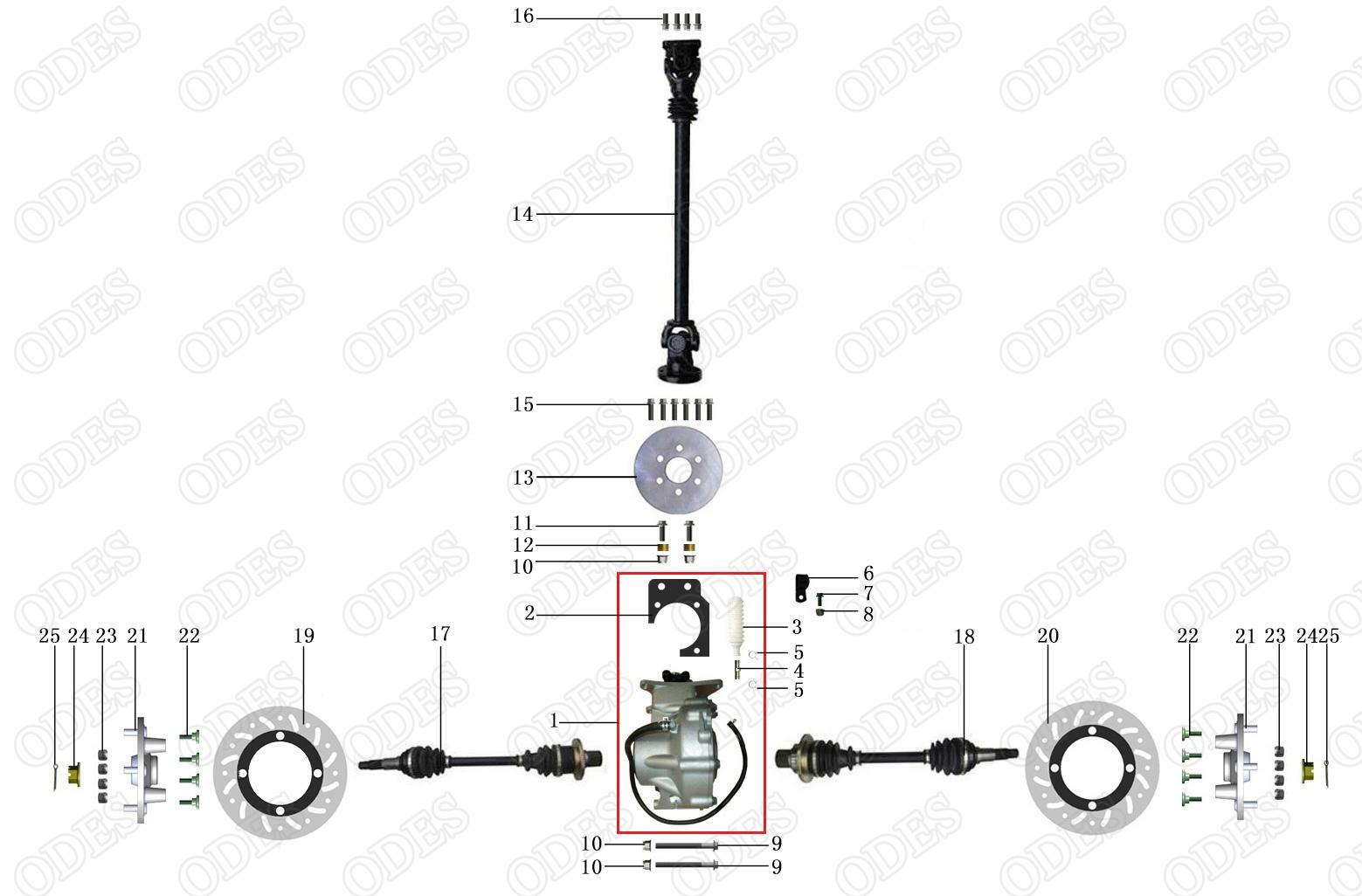

REAR DRIVE SYSTEM
Item # |
Part Number |
Description |
Specification |
Quantity |
Fits Models |
| 1 | 21130100000 | Rear Differential | 1 | 800-4C(19) | |
| 2 | 21130102901 | Rear Differential Front Mount | 1 | 800-4C(19) | |
| 3 | 21130103501 | Vent Bellow | 1 | 800-4C(19)/ATV800(19) | |
| 4 | 21120104601 | Vent Bellow Coupler | 1 | 800-4C(19)/ATV800(19) | |
| 5 | 21130103201 | Clamp | 3 | 800-4C(19)/ATV800(19) | |
| 6 | 10406010090 | Vent Hose Clamp | 1 | 800-7/800-3C/800-4C/ATV800/1000-11A/1000-3A/1000-4A/800-3A/800-4A/UTV170 | |
| 7 | 01254060166 | Hex Flange Bolt | M6x16 | 1 | 800-3C(19)/800-4C(19)/ATV800(19)/1000-11A（19）/1000-3A(19)/1000-4A(19)/800-3A(19)/800-4A(19) |
| 8 | 04612060026 | Hex Flange Locking Nut | M6 | 1 | 800-3C(19)/800-4C(19)/ATV800(19)/1000-11A（19）/1000-3A(19)/1000-4A(19)/800-3A(19)/800-4A(19) |
| 9 | 01256101156 | Hex Flange Bolt | M10x115x1.25 | 2 | 800-3C/800-4C/ATV800 |
| 10 | 04622100026 | Hex Flange Locking Nut | M10x1.25 | 4 | 800-7/800-3C/800-4C/ATV800/1000-11A/1000-3A/1000-4A/800-3A/800-4A |
| 11 | 01256100306 | Hex Flange Bolt | M10x30x1.25 | 2 | 800-4C(19)/1000-11A/1000-3A/1000-4A/800-3A(19)/800-4A |
| 12 | 15906010710 | Mechanical Parking Brake Bushing | 2 | 800-4C(19) | |
| 13 | 10906010030 | Rear Brake Disc | 1 | 800-3C/800-4C | |
| 14 | 10903130000 | Rear Driveshaft | 1 | 800-3C | |
| 15 | 01566100306 | Small Head Hex Flange Bolt | M10x30x1.25 | 6 | 800-3C/800-4C |
| 16 | 01566100206 | Small Head Hex Flange Bolt | M10x20x1.25 | 4 | 800-7/800-3C/800-4C/ATV800/1000-11A/1000-3A/1000-4A/800-3A(19)/800-4A |
| 17 | 13201240000 | Rear C.V Shaft, Lh | 1 | 800-3C/800-4C | |
| 18 | 13201250000 | Rear C.V Shaft, Rh | 1 | 800-3C/800-4C | |
| 19 | 13206010350 | Rear Brake Disc, Rh | 1 | 800-3C/800-4C/ATV800 | |
| 20 | 13206010340 | Rear Brake Disc, Lh | 1 | 800-3C/800-4C/ATV800 | |
| 21 | 13201040000 | Rear Wheel-Hub | 2 | 800-3C/800-4C/ATV800 | |
| 22 | 01824080205 | Allen T Type Bolt | M8x20 | 8 | 800-7/800-3C/800-4C/ATV800/1000-11A/1000-3A/1000-4A/800-3A(19)/800-4A |
| 23 | 04012100021 | Lug Nut | M10×1.5 | 8 | 800-3C/800-4C |
| 24 | 04812220022 | Slotted Flange Nut | M22x1.5 | 2 | 800-7/800-3C/800-4C/1000-11A/1000-3A/1000-4A/800-3A/800-4A |
| 25 | 05011400405 | Cotter Pin | φ4.0x40 | 2 | 800-7/800-3C/800-4C/ATV800/1000-11A/1000-3A/1000-4A/800-3A/800-4A |
