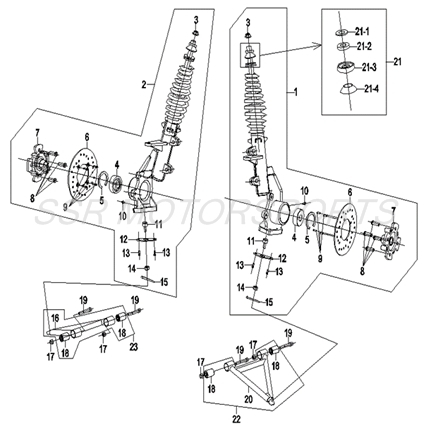

Front Suspension
| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1MUX542502 | FRONT RIGHT SHOCK ABSORBER/STRUT ASSY | 1 | Assy. | $272.00 | |
| 2 | 1MUX542302 | FRONT LEFT SHOCK ABSORBER/STRUT ASSY | 1 | Assy. | $272.00 | |
| 3 | 9330314021361300 | FLANGE NUT | M14 | 2 | Pcs. | $2.50 |
| 4 | 1MU5427000 | BEARING | DAC3506437 | 2 | Pcs. | $45.00 |
| 5 | 9430164000000000 | CIRCLIP | 64 | 2 | Pcs. | $2.50 |
| 6 | 1MU5455300 | FRONT BRAKE ROTOR | 2 | Pcs. | $69.00 | |
| 7 | 1MU5455100 | FRONT WHEEL HUB | 2 | Pcs. | $89.00 | |
| 8 | 1MU555520001 | WHEEL STUD | M12X36 | 8 | Pcs. | $2.50 |
| 9 | 9151308020281300 | BOLT | M8X20 | 8 | Pcs. | $1.50 |
| 10 | 1MU5426000 | GREASE FITTING | M6 | 2 | Pcs. | $1.50 |
| 11 | 1MU5424000 | BALL JOINT | 2 | Pcs. | $36.00 | |
| 12 | 1MU5423200 | MOUNTING PLATE | 2 | Pcs. | $18.00 | |
| 13 | 9254360160101300 | BOLT | M6X16 | 4 | Pcs. | $1.50 |
| 14 | 9383310016261300 | CASTLE NUT | M10 | 2 | Pcs. | $1.50 |
| 15 | 9500325025002300 | COTTER PIN | 2.5X25 | 2 | Pcs. | $1.50 |
| 16 | 2MU5411010 | LEFT FRONT A-ARM | 1 | Pc. | $77.00 | |
| 17 | 9330312018261300 | FLANGE LOCKNUT | M12 | 4 | Pcs. | $3.50 |
| 18 | 1MU5412000 | BUSHING | 4 | Pcs. | $11.00 | |
| 19 | 1MU5410100 | FLANGE BOLT | M12X75 | 4 | Pcs. | $6.00 |
| 20 | 2MU5431010 | RIGHT FRONT A-ARM | 1 | Pc. | $77.00 | |
| 21 | 1MUX542020 | UPPER PIVOT ASSY | 2 | Assy. | $14.00 | |
| 21-1 | 9401314000031300 | WASHER | M14 | 2 | Pcs. | $2.00 |
| 21-2 | 1MU5420900 | RUBBER SPACER | 2 | Pcs. | $11.00 | |
| 21-3 | 1MU5420200 | UPPER PIVOT BALL | 2 | Pcs. | $14.00 | |
| 21-4 | 1MU5420300 | LOWER PIVOT BALL | 2 | Pcs. | $7.00 | |
| 22 | 1MUX543100 | RIGHT A-ARM W/ BUSHING | 1 | Assy. | $89.00 | |
| 23 | 1MUX541100 | LEFT A-ARM W/ BUSHING | 1 | Assy. | $89.00 | |
