| Reference |
Part# |
Description |
Qty |

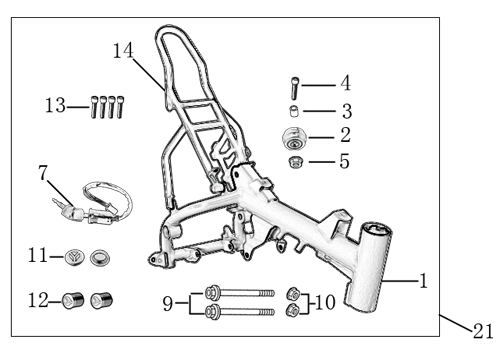

| 21 |
YC50-1621-03-WH |
complète frame YCF50 2020 WHITE (with YC50-1211 2EA) for KRDIRECTION46 |
1 |
| 1 |
YC50-172-02-WH |
YCF50 Frame WHITE +2°d.46mm for KRDIRECTION46 |
1 |
| |
YC110-01-08-BK |
Cable tie ADJUSTABLE BLACK |
1 |
| 2 |
YC50-2201 |
YCF Chain tensioner component （Middle 5.5mm)BLACK |
1 |
| |
FB13-10x14x10-W |
bushing d.10mmxd.14mmx10mm chain tensioner |
1 |
| |
GB70-M10x50x1.5W |
Hex. Bolt M10x50mm for chain tensioner |
1 |
| |
GB6187-M10-1.5-W |
Self-locking Nut M10 for chain tensioner |
1 |
| 14 |
YC50-16-04-BK |
YCF50 Subframe part chromoly 2020 BLACK FOR 125cc 12V/3A Battery and new fixation |
1 |
| |
YC110-1633-02 |
Rubber plug for Subframe part 2020 YCF |
1 |
| 12 |
BT08-M8x10-W |
Hex.Bolt M8x10mm for subframe fixation |
4 |
| 11 |
YC50-1210 |
Rubber cover (swing arm axle) |
2 |
| 11 |
YC50-1211 |
Rubber cover (bottom of frame) 50CC |
2 |
| 9 |
BT08-M8x95-W |
Hex.Bolt M8x95mm for engine pads (botom) |
1 |
| |
BT08-M8x100-W |
Hex.Bolt M8x100mm (for rear engine mounting) |
1 |
| 10 |
GB6187-M8-W |
Self locking nut M8 for engine pads (botom) |
2 |
