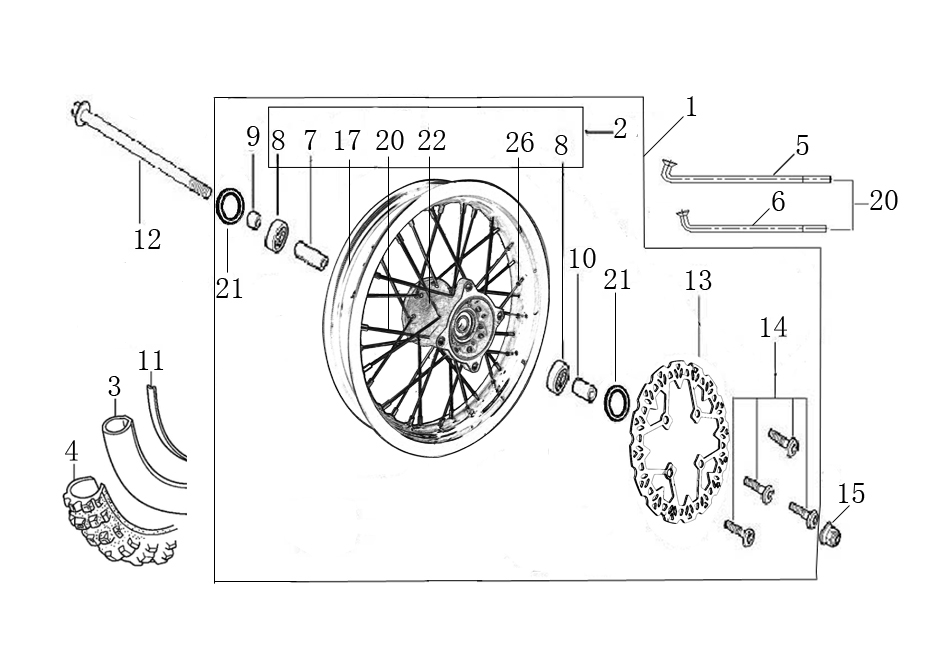

| N° |
Ref. |
Description |
Qty/Bike |
| 1 |
YC50-0601-0401 |
YCF50 Front wheel complete STEEL10', with brake disk. die cast hub 2020 BLACK |
1 |
| 3 |
CHAMBRE10-2.5N |
Tube for front tire 2.50x10' (Air cock 90º) |
1 |
| 4 |
250/10 |
Tire 2.50-10' GUANGLI |
1 |
| 22 |
YC50-0622-03 |
YCF50 Front hub injected with washer 2020 |
1 |
| 7 |
YC50-0607-01 |
Front axle bushing 50A d.14mmxd.20mmx46mm |
1 |
| 8 |
6201RS |
YCF50 Ball bearing 6201RS d.32mmxd.12mmx10mm |
2 |
| 21 |
YC50-0610 |
OIL SEAL d.22mmxd.32mmx5mm |
2 |
| 9 |
YC50-06-052 |
YCF50 Right wheel spacer d.12mmxd.22mmx23mm |
1 |
| 10 |
YC50-06-051 |
Left wheel spacer d.12mmxd.22mmx26mm |
1 |
| 11 |
YC110-11-02 |
tire lining 10" |
1 |
| 12 |
YC50-06-01 |
YCF50 Front Axle 170mm with Self-locking nut d.12mm |
1 |

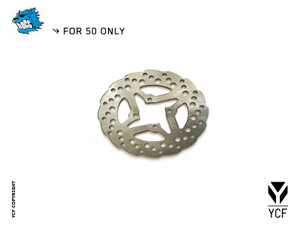

| 13 |
YC50-0513-01 |
Brake disk front/rear d.160 mm |
1 |
| 14 |
GB70.2-M6x16 |
Socket head cap screw M6x16mm for disk |
4 |
| 17 |
YC50-0617-01 |
STEEL Rim for Front wheel 1.4x10' Black |
1 |
| |
JR10-10.6 |
set of spoke 10' 50cc(104mmx8+106mmx16+111mmx8)（3.2mm） |
1 |
