YCF 50A (Stator/Flywheel/Timing Chain)


Reference Part# Description
48 YC50-20-48 Oil level cap M14×1.5
49 YC50-20-49 O-ring φ13.8×2.5
50 YC50-20-50 Cable clamp
51 YC50-20-51 bolt GB5787 (M6×50)
52 YC50-20-52 Engine start cable clamp
53 YC50-20-53 screw GB819 (M5×8)
54 YC50-20-54 stator
55 YC50-20-55 bolt GB5787 (M6×22)
56 YC50-20-56 bolt GB5783 (M5×12)
57 YC50-20-57 nut GB6177 (M10×1.25)
58 YC50-20-58 flywheel rotor
59 YC50-20-59 timing chain 25H-70
60 YC50-20-60 rubber oil sealφ30×15×5

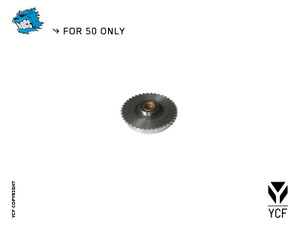

61 YC50-20-61 starter gear
62 YC50-20-62 left chain guide
63 YC50-20-63 oil seal φ42×30×4.5
64 YC50-20-64 right chain guide
65 YC50-20-65 shock absorption
