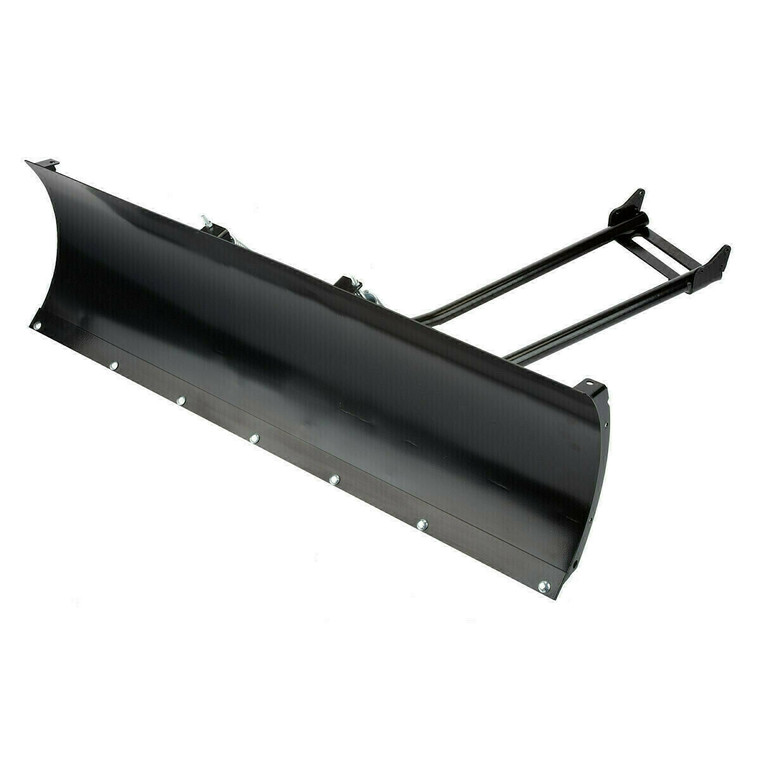

Denali Standard Series ATV Snow Plow Kit - CF Moto Atv's

Fitment:

• CFMoto CForce 800 all model

Please Note: All of our DENALI Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend our VIPER Elite, VIPER Max, or VIPER Midnight winches.

Kit Contents:

• ATV Snow Plow Blade - Straight
• ATV Pushtubes
• One (1) Wearbar
• Skid Feet
• Installation Hardware and Instructions

Plow Features:

• Snow plow blade (17 inch scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
• Four 7 gauge ribs run the full height of the blade
• Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
• 65° attack angle and over center design ensures snow rolls up and is thrown forward
• 7 gauge, Grade 50 steel wear bar(s) included with every kit
• Height and angle adjustable skid feet included
• 3 Year Warranty

Accessories Features:

• Features
•      Upgraded (stiffer) rubber flap
•      Stainless steel base on markers
•      Flexible to -50° F (markers)
•      Highly visible orange color

• Kit Contents
•      One (1) rubber flap
•      One (1) metal hold down bar
•      Two (2) plow markers/flags
•      One (1) standard spool plow roller
•      One (1) sheave (pulley, 1/4″ clevis hook, nylon strap)
•      One (1) plow cable
•      Installation hardware

Plow Pulley Fairlead Features:

• Roller
•      Replaces the winch fairlead during the plow season
•      For use with Steel AND Synthetic cables
•      Curved cable groove helps eliminate flattening and breaking of cable
•      Bolt Patterns:
•         Standard Spool: 3″ x 4.875″
•         Wide Spool: 3" x 6.67″

• Sheave
•      Includes pulley, 1/4″ clevis hook and nylon strap
•      Allows greater precision when raising/lowering plow blade and increases the angle of pull

• Cable
•      12′ length, 1/4″ diameter
•      Single braid, dyneema rope with galvanized steel thimble/eyelet
