Product Description
Fitment:
MA11117
• 2000-2006 Rancher (TRX350FM) 4x4
• 2000-2006 Rancher (TRX350FE) 4x4
• 2004-2007 Rancher AT (TRX400FA) 4x4, (TRX400FG) 4x4
• 2007 Rancher AT GPScape (TRX500FGA) 4x4
MA11119-R
• 2007-2013 Rancher (TRX420TM) 2x4, ES (TRX420TE) 2x4
• 2007-2013 Rancher (TRX420FM) 4x4, EX (TRX420FE) 4x4
• 2009-2013 Rancher ES (TRX420FPM) 4x4, (TRX420FPE) 4x4
• 2009-2013 Rancher AT (TRX420FA), AT ESP (TRX420FPA)
• 2014 Rancher TRX420 IRS (AT) 4x4
MA11122-R
• 2014-2019 Rancher TRX420 (AT)(FM)(EPS)(FE)(FPE)(FPA)(FPM) 4x4
MA11116
• 2005-2011 Foreman (TRX500TM) 2x4, 4x4
• 2007-2011 Foreman (TRX500FPM) 4x4
• 2005-2011 Foreman ES (TRX500FE) 4x4
• 2008-2011 Foreman ES (TRX500FPE) 4x4
MA11119
• 2012-2013 Foreman (TRX500TM) 4x4
MA11122
• 2014-2019 Foreman TRX500 (FE)(FM)(FPE)(FPM) 4x4
MA11114
- 2003-2006 Rincon 650 FA (TRX650FA) 4x4
- 2007-2014 Rincon GPScape (TRX680FGA) 4x42005-2014 Rubicon (TRX500FA) 4x4
MA11116-R
- 2005-2014 Rubicon (TRX500FG) 4x4
- 2007-2008 Rubicon GPScape (TRX500FGA) 4x4
- 2009 Rubicon GPScape EPS (TRX500FPA) 4x4

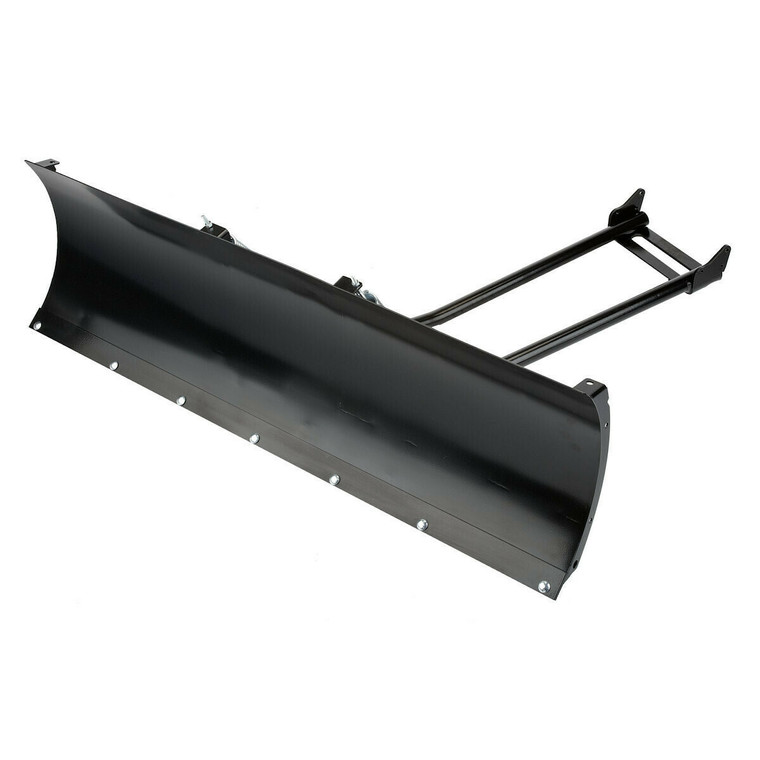

DENALI Standard Series ATV Snow Plows are made to handle the toughest conditions and hold up against sand, snow and ice. The central mounting position of the plow kit disperses the force of impact to the sturdiest part of the ATV, preventing damage to the front end or other vehicle parts from sudden impact. Our easy-connect design makes for a quick attachment of the plow to your ATV for when the snow begins to fly. Then, when winter draws to a close, take the plow back off in a matter of minutes. The durable snowplow mount plate is specifically engineered to fit the frame of your ATV and can remain on your vehicle year round.
Please Note: All of our DENALI Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend our VIPER Elite, VIPER Max, or VIPER Midnight winches.
Kit Contents:
- ATV Snow Plow Blade - Straight
- ATV Pushtubes
- One (1) Wearbar
- Skid Feet
- Installation Hardware and Instructions
Plow Features:
- Snow plow blade (17 inch scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
- Four 7 gauge ribs run the full height of the blade
- Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
- 65° attack angle and over center design ensures snow rolls up and is thrown forward
- 7 gauge, Grade 50 steel wear bar(s) included with every kit
- Height and angle adjustable skid feet included
- 3 Year Warranty
Accessories Features:
- Features
- Upgraded (stiffer) rubber flap
- Stainless steel base on markers
- Flexible to -50° F (markers)
- Highly visible orange color
- Kit Contents
- One (1) rubber flap
- One (1) metal hold down bar
- Two (2) plow markers/flags
- One (1) standard spool plow roller
- One (1) sheave (pulley, 1/4″ clevis hook, nylon strap)
- One (1) plow cable
- Installation hardware
Plow Pulley Fairlead Features:
- Roller
- Replaces the winch fairlead during the plow season
- For use with Steel AND Synthetic cables
- Curved cable groove helps eliminate flattening and breaking of cable
- Bolt Patterns:
- Standard Spool: 3″ x 4.875″
- Wide Spool: 3" x 6.67″
- Sheave
- Includes pulley, 1/4″ clevis hook and nylon strap
- Allows greater precision when raising/lowering plow blade and increases the angle of pull
- Cable
- 12′ length, 1/4″ diameter
- Single braid, dyneema rope with galvanized steel thimble/eyelet
