Product Description
Fitment:
MA11101
1998-2000 Sportsman 335 4x4
2001-2007 Sportsman 400 4x4
2006 Sportsman 450
1996-2008 Sportsman 500 4x4
2001-2002 Sportsman 500 DUSE 4x4, RSE 4x4
2000 Sportsman 500 Remington 4x4
Please Note: will NOT fit Sportsman X2 machines
MA11102
2008-2010 Sportsman 500 Touring 4x4
2008 Sportsman 700 X2 4x4
2008-2009 Sportsman 800 Touring 4x4
2009 Sportsman 800 X2 4x4
MA11104
2009-2014 Sportsman 550 all models
2009-2014 Sportsman 850 all models
2012-2014 Scrambler 850 all models
MA11106
2003-2005 Sportsman 600 Twin 4x4
2002-2006 Sportsman 700 Twin 4x4
2005-2010 Sportsman 800 4x4
MA11109
2011-2014 Sportsman 400/500/800
2016-2020 Sportsman 450 HO, 450 HD 2x4
2010 Sportsman 500 HO
2014-2017 Sportsman 570 EFI & 570 EFI HD
2018-2020 Sportsman 570, 570 EPS EU, 570 EPS EU SP
2021 Sportsman 570 Touring
2015 Sportsman ETX
Please Note: call for fitment on
2017 Sportsman 570 EFI UTE HD
2017 Sportsman EFI UTE MD
2017 Sportsman EFI X2 EPS
2017 Sportsman SP
MA11110
2015-2020 Sportsman 850, 850 Touring SP & 850 SP
2015-2020 Sportsman 1000, 1000 XP, 1000 XP EU, Touring
2017-2020 Sportsman High Lifter 850
2018-2020 Sportsman High Lifter 1000
2015-2020 Scrambler 850 all models
2015-2020 Scrambler 1000, 1000 XP, 1000 XP EU

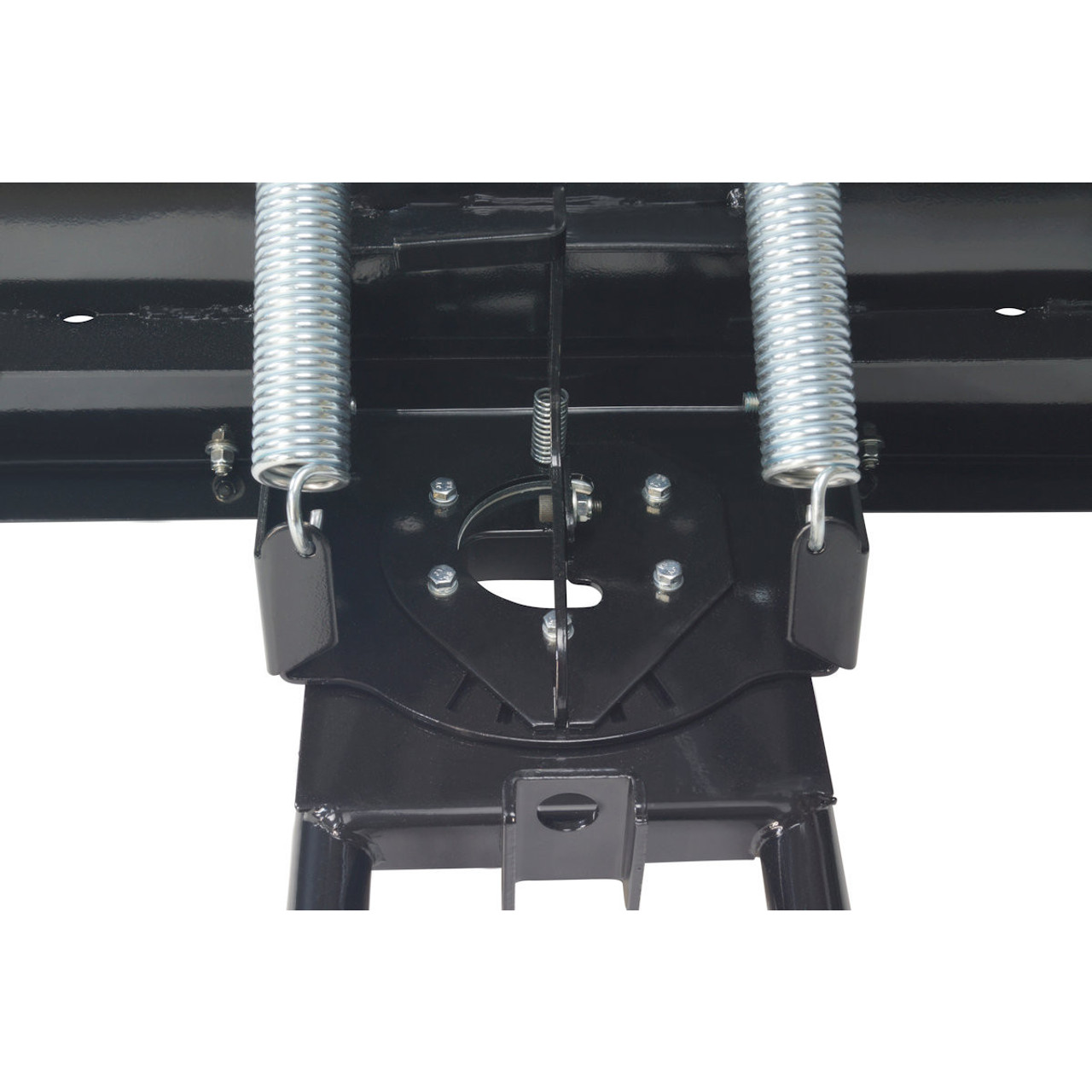

DENALI Standard Series ATV Snow Plows are made to handle the toughest conditions and hold up against sand, snow and ice. The central mounting position of the plow kit disperses the force of impact to the sturdiest part of the ATV, preventing damage to the front end or other vehicle parts from sudden impact. Our easy-connect design makes for a quick attachment of the plow to your ATV for when the snow begins to fly. Then, when winter draws to a close, take the plow back off in a matter of minutes. The durable snowplow mount plate is specifically engineered to fit the frame of your ATV and can remain on your vehicle year round.
Please Note: All of our DENALI Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend our VIPER Elite, VIPER Max, or VIPER Midnight winches.
Kit Contents:
- ATV Snow Plow Blade - Straight
- ATV Pushtubes
- One (1) Wearbar
- Skid Feet
- Installation Hardware and Instructions
Plow Features:
- Snow plow blade (17 inch scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
- Four 7 gauge ribs run the full height of the blade
- Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
- 65° attack angle and over center design ensures snow rolls up and is thrown forward
- 7 gauge, Grade 50 steel wear bar(s) included with every kit

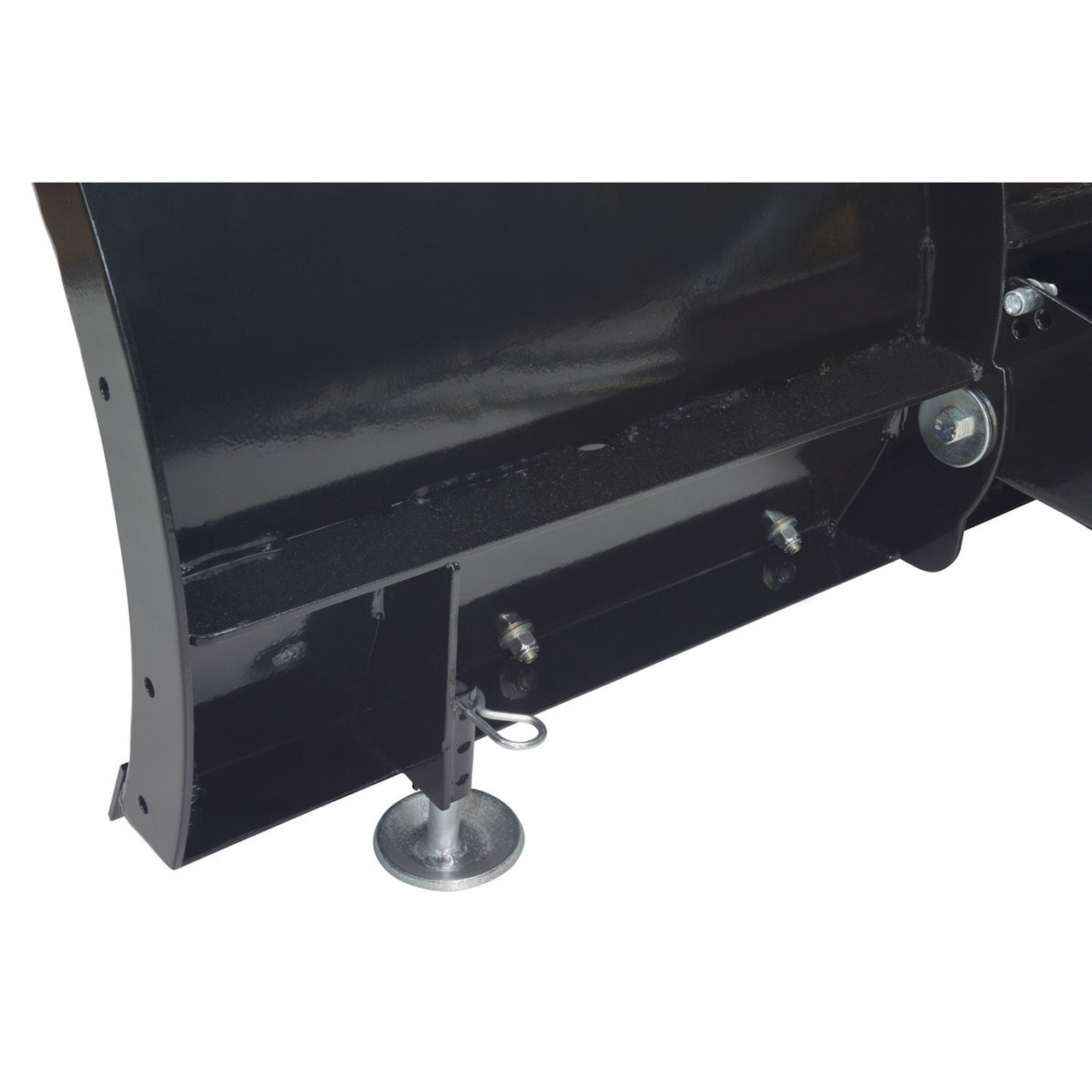

- Height and angle adjustable skid feet included
- 3 Year Warranty
Accessories Features:
- Features
- Upgraded (stiffer) rubber flap
- Stainless steel base on markers
- Flexible to -50° F (markers)
- Highly visible orange color
- Kit Contents
- One (1) rubber flap
- One (1) metal hold down bar
- Two (2) plow markers/flags
- One (1) standard spool plow roller
- One (1) sheave (pulley, 1/4″ clevis hook, nylon strap)
- One (1) plow cable
- Installation hardware
Plow Pulley Fairlead Features:
- Roller
- Replaces the winch fairlead during the plow season
- For use with Steel AND Synthetic cables
- Curved cable groove helps eliminate flattening and breaking of cable
- Bolt Patterns:
- Standard Spool: 3″ x 4.875″
- Wide Spool: 3" x 6.67″
- Sheave
- Includes pulley, 1/4″ clevis hook and nylon strap
- Allows greater precision when raising/lowering plow blade and increases the angle of pull
- Cable
- 12′ length, 1/4″ diameter
- Single braid, dyneema rope with galvanized steel thimble/eyelet
