Product Description
Fitment:
MA11103
• 2002-2008 Grizzly 660 Automatic 4x4
MA11120
• 2008-2013 Grizzly 350 Auto 2x4
• 2007-2013 Grizzly 350 Auto, 350 Auto IRS 4x4
• 2005-2009 Grizzly 400 Automatic 4x4
• 2005-2008 Grizzly 450 Automatic 4x4
• 2009-2014 Grizzly 450 4x4
• 2004-2006 Bruin 350 2x4, 4x4
• 2007-2012 Kodiak 350 Auto, 350 Auto IRS 4x4
• 2003-2004 Kodiak 400 Automatic 2x4
• 2003-2009 Kodiak 400 Automatic 4x4
• 2003-2008 Kodiak 450 Automatic 4x4
MA11120_SD Scratch and Dent Plow Mount (Hardware may not be included or complete.)
• 2008-2013 Grizzly 350 Auto 2x4
• 2007-2013 Grizzly 350 Auto, 350 Auto IRS 4x4
• 2005-2009 Grizzly 400 Automatic 4x4
• 2005-2008 Grizzly 450 Automatic 4x4
• 2009-2014 Grizzly 450 4x4
• 2004-2006 Bruin 350 2x4, 4x4
• 2007-2012 Kodiak 350 Auto, 350 Auto IRS 4x4
• 2003-2004 Kodiak 400 Automatic 2x4
• 2003-2009 Kodiak 400 Automatic 4x4
• 2003-2008 Kodiak 450 Automatic 4x4
MA11125
• 2009-2011 Grizzly 550 4x4, EPS 4x4
• 2007 Grizzly 700 4x4
• 2008-2011 Grizzly 700 EPS 4x4
• 2011-2012 Grizzly 700 FI Auto EPS Special Edition 4x4
• Please Note: 2012-2014 Grizzly 700s have welded foot pegs and will NOT work with this mount
MA11127
• 2012-2016 Grizzly 550 4x4
• 2012-2019 Grizzly 700 4x4 (EPS) (LE) (SE)
• 2016-2019 Kodiak 700 all models
• 2018-2019 Kodiak 450 4x4

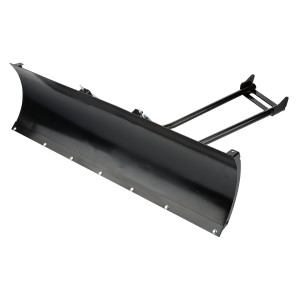

DENALI Standard Series ATV Snow Plows are made to handle the toughest conditions and hold up against sand, snow and ice. The central mounting position of the plow kit disperses the force of impact to the sturdiest part of the ATV, preventing damage to the front end or other vehicle parts from sudden impact. Our easy-connect design makes for a quick attachment of the plow to your ATV for when the snow begins to fly. Then, when winter draws to a close, take the plow back off in a matter of minutes. The durable snowplow mount plate is specifically engineered to fit the frame of your ATV and can remain on your vehicle year round.
Please Note: All of our DENALI Plow Systems require a winch (not included) to raise and lower the plow blade. We recommend our VIPER Elite, VIPER Max, or VIPER Midnight winches.
Kit Contents:
- ATV Snow Plow Blade - Straight
- ATV Pushtubes
- One (1) Wearbar
- Skid Feet
- Installation Hardware and Instructions
Plow Features:
- Snow plow blade (17 inch scoop) and leading horizontal supports are formed from a single piece of 11 gauge steel
- Four 7 gauge ribs run the full height of the blade
- Three additional 7 gauge horizontal stabilizers support the deepest point of the blade
- 65° attack angle and over center design ensures snow rolls up and is thrown forward
- 7 gauge, Grade 50 steel wear bar(s) included with every kit
- Height and angle adjustable skid feet included
- 3 Year Warranty
Accessories Features:
- Features
- Upgraded (stiffer) rubber flap
- Stainless steel base on markers
- Flexible to -50° F (markers)
- Highly visible orange color
- Kit Contents
- One (1) rubber flap
- One (1) metal hold down bar
- Two (2) plow markers/flags
- One (1) standard spool plow roller
- One (1) sheave (pulley, 1/4″ clevis hook, nylon strap)
- One (1) plow cable
- Installation hardware
Plow Pulley Fairlead Features:
- Roller
- Replaces the winch fairlead during the plow season
- For use with Steel AND Synthetic cables
- Curved cable groove helps eliminate flattening and breaking of cable
- Bolt Patterns:
- Standard Spool: 3″ x 4.875″
- Wide Spool: 3" x 6.67″
- Sheave
- Includes pulley, 1/4″ clevis hook and nylon strap
- Allows greater precision when raising/lowering plow blade and increases the angle of pull
- Cable
- 12′ length, 1/4″ diameter
- Single braid, dyneema rope with galvanized steel thimble/eyelet
