Cylinder Head Assembly for Kayo TT140
Kayo
$153.00
(No reviews yet)
Write a Review
Kayo
Cylinder Head Assembly for Kayo TT140
Cylinder Head Assembly for Kayo TT140
OEM Part # 101020-0260

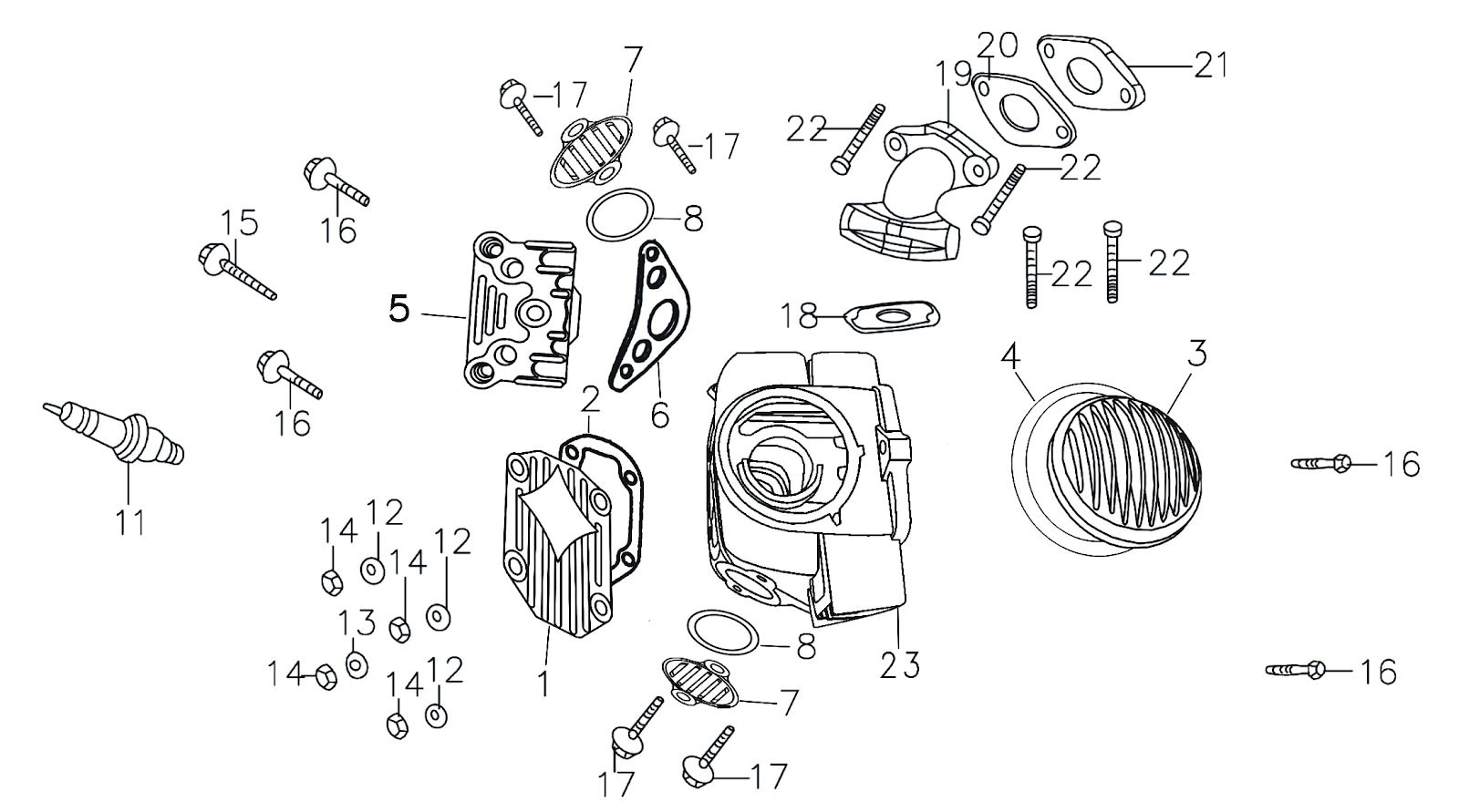

#23 shown in parts schematic below
| NO. | U8 Parts No. | ENGLISH DESCRIPTION | Qty/vehicle | QTY | Retail |
| 1 | 101020-0240 | CYLINDER HEAD COVER | 1 | /ea | $ 25.50 |
| 2 | 101020-0552 | CYLINDER HEAD COVER SEAL PACKING(EPA) | 1 | /ea | $ 13.60 |
| 3 | 101020-0242 | CYLINDER HEAD LEFT COVER | 1 | /ea | $ 25.50 |
| 4 | 101020-0553 | CYLINDER HEAD LEFT COVER SEAL PACKING(EPA) | 1 | /ea | $ 13.60 |
| 5 | 101020-0244 | CYLINDER HEAD RIGHT COVER | 1 | /ea | $ 25.50 |
| 6 | 101020-0554 | CYLINDER HEAD RIGHT COVER SEAL RING(EPA) | 1 | /ea | $ 13.60 |
| 7 | 101020-0246 | VALVA COVER | 2 | /ea | $ 17.00 |
| 8 | 101020-0247 | SEAL FOR INTAKE VALVE | 2 |
/ea |
$ 8.50 |
| 11 | 101018-0618 | SPARK PLUG A7RTC(EPA) | 1 | /ea | $ 17.00 |
| 12 | 101020-0249 | CUSHION RING | 3 | /ea | $ 5.10 |
| 13 | 101020-0250 | CUSHION RING | 1 | /ea | $ 5.10 |
| 14 | 101020-0251 | NUT | 4 | /ea | $ 5.10 |
| 15 | 101020-0252 | BOLT | 1 | /ea | $ 5.10 |
| 16 | 101020-0253 | SCREW | 4 | /ea | $ 5.10 |
| 17 | 101020-0254 | PLATE BOLT | 4 | /ea | $ 5.10 |
| 18 | 101020-0555 | SEAL PACKING FOR THE INTAKE(EPA) | 1 | /ea | $ 10.20 |
| 19 | 101001-0027 | INTAKE | 1 | /ea | $ 20.40 |
| 20 | 101020-0556 | SEAL PACKING(EPA) | 1 | /ea | $ 10.20 |
| 21 | 101020-0258 | CARBURETOR SEAL PACKING | 1 | /ea | $ 13.60 |
| 22 | 101020-0259 | PLATE BOLT | 4 | /ea | $ 3.40 |
| 23 | 101020-0260 | CYLINDER HEAD ASSY | 1 | /ea | $ 153.00 |
