Engine Internals Parts Schematic for SSR SR110SE
SSRCALL TO ORDER (320)-358-1994
(No reviews yet)
Write a Review
SSR
Engine Internals Parts Schematic for SSR SR110SE

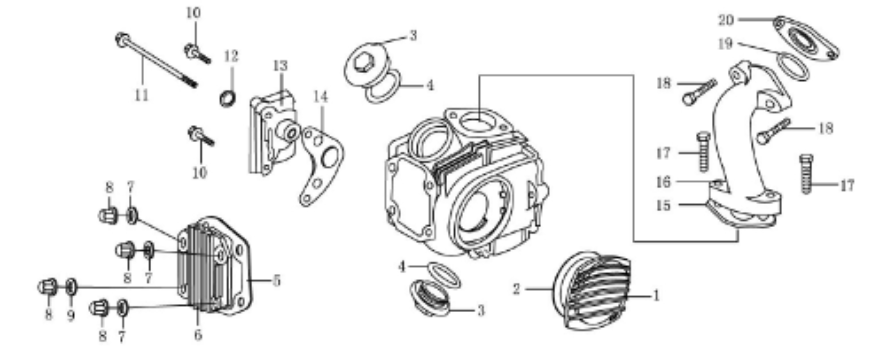

| CYLINDER HEAD COVERS + INTAKE MANIFOLD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01173-09-00 | LEFT CYLINDER HEAD COVER | CHROME | 1 | Pc. | $18.00 |
| 2 | A00112-13-00 | LEFT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 3 | A01174-09-00 | TAPPET COVER | CHROME | 2 | Pcs. | $8.00 |
| 4 | A00004-27-00 | O-RING | 30.8X3.2 | 2 | Pcs. | $3.50 |
| 5 | A00127-13-00 | CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 6 | A02928-09-00 | CYLINDER HEAD COVER | 1 | Pc. | $21.00 | |
| 7 | A00017-21-01 | WASHER | M6 | 3 | Pcs. | $1.50 |
| 8 | A00003-22-36 | FLANGE CAP NUT | M6 | 4 | Pcs. | $1.50 |
| 9 | A00272-21-01 | COPPER WASHER | M6 | 1 | Pc. | $1.50 |
| 10 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 11 | A00439-19-07 | SPECIAL FLANGE BOLT | M6X110 | 1 | Pc. | $2.50 |
| 12 | A01177-09-00 | ALUMINUM WASHER | M6 | 1 | Pc. | $1.50 |
| 13 | A01172-09-00 | RIGHT CYLINDER HEAD COVER | 1 | Pc. | $18.00 | |
| 14 | A00128-13-00 | RIGHT CYLINDER HEAD COVER GASKET | 1 | Pc. | $8.00 | |
| 15 | A00227-14-00 | INTAKE MANIFOLD GASKET | 1 | Pc. | $4.00 | |
| 16 | A00264-14-00 | INTAKE MANIFOLD | 1 | Pc. | $27.00 | |
| 17 | A00421-19-08 | CASE FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 18 | A00423-19-08 | CASE FLANGE BOLT | M6X30 | 2 | Pcs. | $1.50 |
| 19 | A00005-27-00 | INSULATOR O-RING | 25.4X2.5 | 1 | Pc. | $2.50 |
| 20 | A00126-13-00 | INTAKE INSULATOR | 1 | Pc. | $6.00 | |

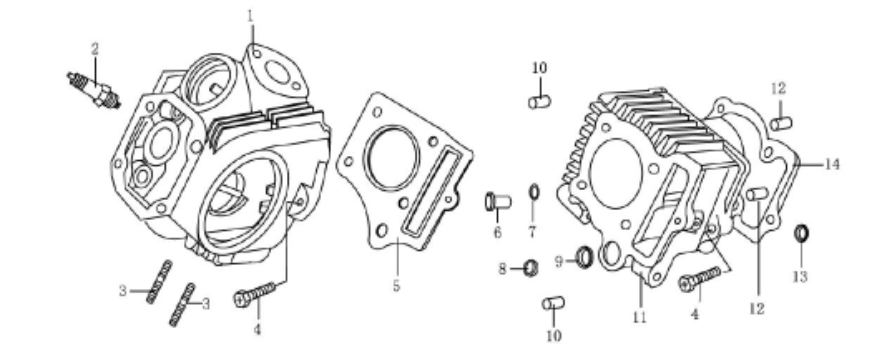

| CYLINDER HEAD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02324-09-00 | CYLINDER HEAD ASSY COMPLETE | W/ VALVES | 1 | Assy. | $115.00 |
| 2 | C7HSA | SPARK PLUG | C7HSA | 1 | Pc. | $8.00 |
| 3 | A00001-19-04 | STUD | M6X32 | 2 | Pcs. | $1.50 |
| 4 | A00002-19-03 | BOLT | M6X23 | 1 | Pc. | $1.50 |
| 5 | A00196-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $11.00 | |
| 6 | A00118-23-00 | SPECIAL PIN | 8X11 | 1 | Pc. | $2.50 |
| 7 | A00042-27-00 | O-RING | 9X1.6 | 1 | Pc. | $1.50 |
| 8 | A00000-21-01 | WASHER | 11.5X15X1.5 | 1 | Pc. | $1.50 |
| 9 | A00008-27-00 | O-RING | 14.5X2.5 | 1 | Pc. | $1.50 |
| 10 | A00001-23-00 | DOWEL PIN | M8X14 | 2 | Pcs. | $1.50 |
| 11 | A02325-09-00 | CYLINDER | 1 | Pc. | $98.00 | |
| 12 | A00003-23-00 | DOWEL PIN | M8X12 | 2 | Pcs. | $1.50 |
| 13 | A00009-27-00 | O-RING | 11.5X2.6 | 1 | Pc. | $1.50 |
| 14 | A00259-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $11.00 | |

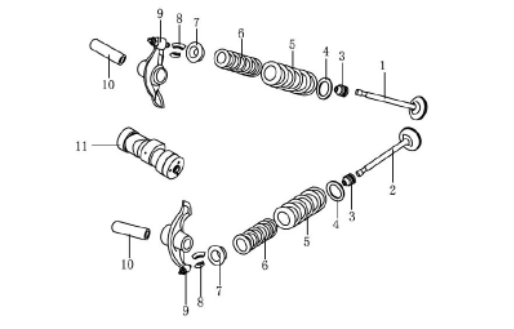

| CAMSHAFT & VALVES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02835-09-00 | INTAKE VALVE | 1 | Pc. | $13.00 | |
| 2 | A02836-09-00 | EXHAUST VALVE | 1 | Pc. | $13.00 | |
| 3 | A02858-09-00 | VALVE STEM SEAL | 2 | Pcs. | $2.50 | |
| 4 | A02840-09-00 | LOWER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 5 | A02837-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 6 | A02838-09-00 | INNER VALVE SPRING | 2 | Pcs. | $6.00 | |
| 7 | A02839-09-00 | UPPER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 8 | A02841-09-00 | COLLET | 4 | Pcs. | $2.00 | |
| 9 | A01197-09-00 | ROCKER ARM ASSY | 2 | Assy. | $21.00 | |
| 10 | A01188-09-00 | ROCKER ARM SHAFT | 2 | Pcs. | $6.00 | |
| 11 | A01185-09-00 | CAMSHAFT | 1 | Pc. | $63.00 | |
| A02842-09-00 | VALVE ADJUSTING SCREW | 2 | Pcs. | $2.00 | ||
| A02833-09-00 | ROCKER ARM | 2 | Pcs. | $18.00 | ||
| A02832-09-00 | VALVE ADJUSTING NUT | 2 | Pcs. | $2.00 | ||

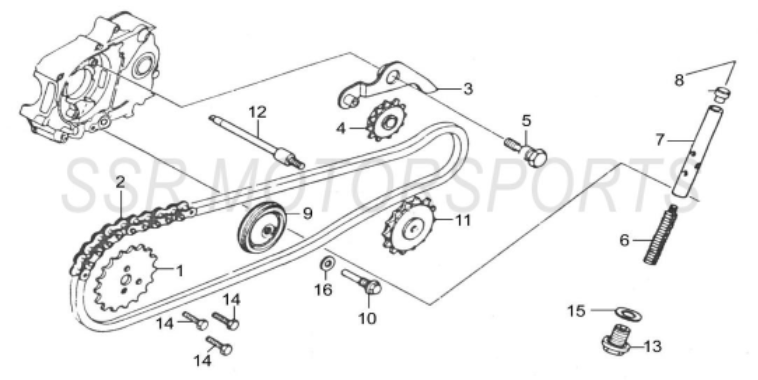

| TIMING CHAIN & TENSIONER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01329-09-00 | CAMSHAFT SPROCKET | 28T | 1 | Pc. | $21.00 |
| 2 | A02442-09-00 | TIMING CHAIN | 82 | 1 | Pc. | $18.00 |
| 3 | A02444-09-00 | CAM CHAIN TENSIONER ARM | 1 | Pc. | $8.00 | |
| 4 | A01257-09-00 | TENSIONER SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 5 | A01321-09-00 | CHAIN TENSIONER ARM BOLT | 1 | Pc. | $2.00 | |
| 6 | A01322-09-00 | TENSIONER SPRING | 1 | Pc. | $2.50 | |
| 7 | A01323-09-00 | TENSIONER ROD | 1 | Pc. | $7.00 | |
| 8 | A01299-09-00 | TENSIONER ROD HEAD | 1 | Pc. | $2.50 | |
| 9 | A01300-09-00 | CHAIN ROLLER | RUBBER | 1 | Pc. | $14.00 |
| 10 | A01303-09-00 | ROLLER GUIDE BOLT | 1 | Pc. | $1.50 | |
| 11 | A01304-09-00 | GUIDE SPROCKET | RUBBER | 1 | Pc. | $10.00 |
| 12 | A01305-09-00 | OIL PUMP SHAFT | 1 | Pc. | $6.00 | |
| 13 | A02455-09-00 | TENSIONER BOLT | M14X1.5 | 1 | Pc. | $2.50 |
| 14 | A00025-19-03 | BOLT | M5X12 | 3 | Pcs. | $1.50 |
| 15 | A01307-09-00 | TENSIONER SEAL | 1 | Pc. | $1.50 | |
| 16 | A00094-21-01 | WASHER | 8X14X1.5 | 1 | Pc. | $1.50 |

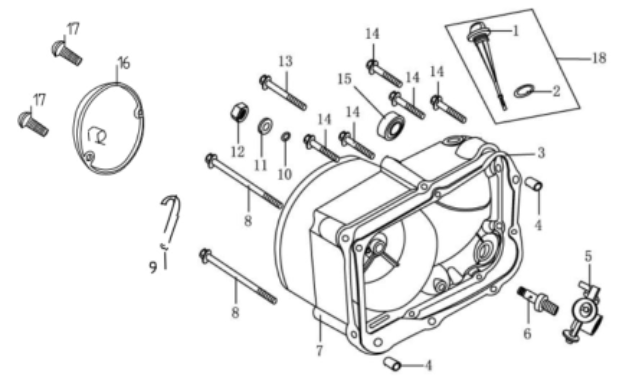

| RIGHT ENGINE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01311-09-00 | OIL LEVEL DIPSTICK | 1 | Pc. | $8.00 | |
| 2 | A00090-27-00 | O-RING | 18X3 | 1 | Pc. | $2.50 |
| 3 | A00120-13-00 | CLUTCH COVER GASKET | 1 | Pc. | $14.00 | |
| 4 | A00003-23-00 | DOWEL PIN | 8X12 | 2 | Pcs. | $1.50 |
| 5 | A03323-09-00 | CLUTCH LIFTER | 1 | Pc. | #N/A | |
| 6 | A02331-09-00 | CLUTCH ADJUSTING BOLT | M8 | 1 | Pc. | $6.00 |
| 7 | A03324-09-00 | RIGHT ENGINE COVER | 1 | Pc. | $85.00 | |
| 8 | A00436-19-08 | CASE FLANGE BOLT | M6X80 | 2 | Pcs. | $2.00 |
| 9 | A01310-09-00 | COIL WIRE RETAINER | 1 | Pc. | $1.50 | |
| 10 | A00019-27-00 | O-RING | 8X2 | 1 | Pc. | $1.50 |
| 11 | A00004-21-01 | WASHER | 8MM | 1 | Pc. | $1.50 |
| 12 | A00002-22-01 | NUT | M8 | 2 | Pcs. | $1.50 |
| 13 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 5 | Pcs. | $2.00 |
| 14 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 2 | Pcs. | $1.50 |
| 15 | A00005-26-00 | OIL SEAL | 13.7X24X5 | 1 | Pc. | $6.00 |
| 16 | A03325-09-00 | CLUTCH ADJUSTMENT COVER | 1 | Pc. | $21.00 | |
| 17 | A00003-20-12 | CS PHILLIPS BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 18 | A03326-09-00 | DIPSTICK ASSY | W/ O-RING | 1 | Assy. | #N/A |
| CLUTCH | ||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01327-09-00 | CLUTCH WASHER | 1 | Pc. | $3.50 | |
| 2 | A01271-09-00 | PRIMARY DRIVE GEAR BUSHING | 1 | Pc. | $6.00 | |
| 3 | A01302-09-00 | GEAR | 18T | 1 | Pc. | $18.00 |
| 4 | A01301-09-00 | GEAR | 67T | 1 | Pc. | $21.00 |
| 5 | A00036-24-07 | CIRCLIP | 1 | Pc. | $1.50 | |
| 6 | A01213-09-00 | CLUTCH | 1 | Pc. | $76.00 | |
| 7 | A01283-09-00 | TONGUE WASHER | 1 | Pc. | $2.50 | |
| 8 | A01284-09-00 | PRIMARY DRIVE DISHED WASHER | 1 | Pc. | $1.50 | |
| 9 | A01282-09-00 | PRIMARY DRIVE GEAR LOCKNUT | M14X1 | 1 | Pc. | $2.50 |
| 10 | A00308-13-00 | CLUTCH LIFTER PLATE GASKET | 1 | Pc. | $8.00 | |
| 11 | A03025-09-00 | CLUTCH LIFTER PLATE | 1 | Pc. | $18.00 | |
| 12 | A00007-20-01 | SCREW | M5X12 | 4 | Set | $1.50 |
| 13 | A01280-09-00 | SPRING | 1 | Pc. | $1.50 | |
| 14 | A01279-09-00 | COLLAR | 1 | Pc. | $1.50 | |
| 16 | A02715-09-00 | CLUTCH ASSEMBLY | 1 | Assy. | $98.00 | |

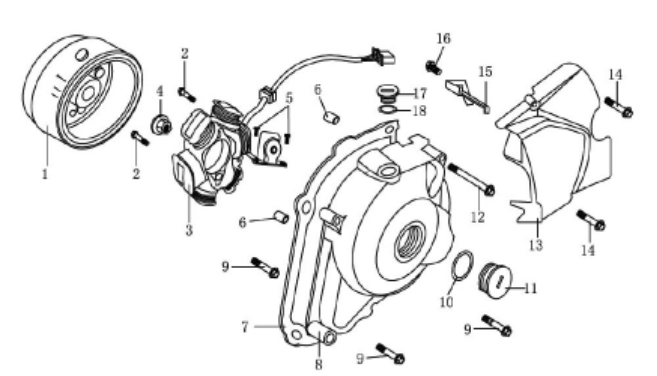

| LEFT ENGINE COVER & STATOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02513-09-00 | FLYWHEEL/STARTER CLUTCH | 1 | Assy. | $63.00 | |
| 2 | FLANGE BOLT? | M6X20 | 2 | Pcs. | #N/A | |
| 3 | A02711-09-00 | STATOR PLATE ASSY | 1 | Assy. | $85.00 | |
| 4 | A00005-22-08 | SPECIAL NUT | M10X1.25 | 1 | Pc. | $1.50 |
| 5 | PHILLIPS BOLT | M5X16 | 2 | Pcs. | #N/A | |
| 6 | A00003-23-00 | DOWEL PIN | M8X12 | 2 | Pcs. | $1.50 |
| 7 | A00244-13-00 | STATOR COVER GASKET | 1 | Pc. | $10.00 | |
| 8 | A01214-09-00 | STATOR COVER | 1 | Pc. | $48.00 | |
| 9 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 3 | Pcs. | $1.50 |
| 10 | A00055-27-00 | O-RING | 27.4X2.4 | 1 | Pc. | $1.50 |
| 11 | A02310-09-00 | CRANK INSPECTION PLUG | 1 | Pc. | $14.00 | |
| 12 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 13 | A03327-09-00 | COUNTERSHAFT SPROCKET COVER | 1 | Pc. | #N/A | |
| 15 | A02509-09-00 | STATOR WIRE CLAMP | 1 | Pc. | $2.50 | |
| 16 | A00445-19-08 | CASE FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 17 | A02512-09-00 | TIMING PLUG | CHROME | 1 | Pc. | $4.00 |
| 18 | A00056-27-00 | O-RING | 13.8X2.5 | 1 | Pc. | $2.50 |

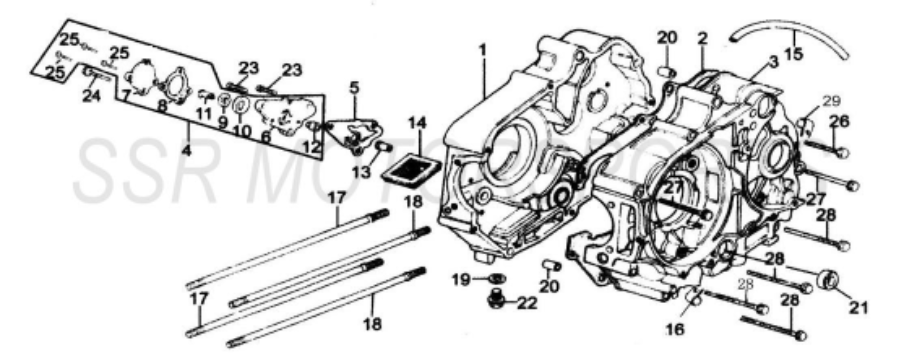

| CRANKCASE & OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02767-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $85.00 | |
| 2 | A00122-13-00 | CENTER CASE GASKET | 1 | Pc. | $14.00 | |
| 3 | A02769-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $90.00 | |
| 4 | A01221-09-00 | OIL PUMP ASSY | 1 | Assy. | $42.00 | |
| 5 | A00123-13-00 | OIL PUMP GASKET | 1 | Pc. | $6.00 | |
| 6 | A01222-09-00 | OIL PUMP BODY | 1 | Pc. | $18.00 | |
| 7 | A01225-09-00 | OIL PUMP COVER | 1 | Pc. | $8.00 | |
| 8 | A00124-13-00 | OIL PUMP COVER GASKET | 1 | Pc. | $4.00 | |
| 9 | A01226-09-00 | OIL PUMP INNER ROTOR | 1 | Pc. | $8.00 | |
| 10 | A01227-09-00 | OIL PUMP OUTER ROTOR | 1 | Pc. | $8.00 | |
| 11 | A01228-09-00 | OIL PUMP SHAFT | 1 | Pc. | $8.00 | |
| 12 | A01229-09-00 | OIL PUMP SHAFT BUSHING | 1 | Pc. | $2.00 | |
| 13 | A01230-09-00 | OIL PUMP SPROCKET BUSHING | 1 | Pc. | $2.00 | |
| 14 | A01098-09-00 | OIL SCREEN | 1 | Pc. | $10.00 | |
| 15 | A02356-09-00 | CRANKCASE VENT HOSE | 1 | Pc. | $10.00 | |
| 16 | A01100-09-00 | PIPE CLAMP | 1 | Pc. | $1.50 | |
| 17 | A00491-19-04 | CYLINDER STUD A | M6X202MM | 2 | Pcs. | $8.00 |
| 18 | A00128-19-04 | CYLINDER STUD B | M6X196MM | 2 | Pcs. | $8.00 |
| 19 | A00012-21-04 | CRUSH WASHER | 12X20X1.5 | 1 | Pc. | $1.50 |
| 20 | A00002-23-00 | DOWEL PIN | 10X14 | 2 | Pcs. | $1.50 |
| 21 | A00002-26-00 | OIL SEAL | 11.6X24X10 | 1 | Pc. | $4.00 |
| 22 | A01102-09-00 | OIL DRAIN BOLT | 1 | Pc. | $4.00 | |
| 23 | A00001-19-03 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 24 | A00024-19-01 | FLANGE BOLT | M6X22 | 1 | Pc. | $1.50 |
| 25 | A00037-19-01 | FLANGE BOLT | M5X10 | 3 | Pcs. | $1.50 |
| 26 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 1 | Pc. | $1.50 |
| 27 | A00429-19-08 | CASE FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 28 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 4 | Pcs. | $2.00 |
| 29 | A02576-09-00 | VENT HOSE CLAMP | 1 | Pc. | $1.50 | |

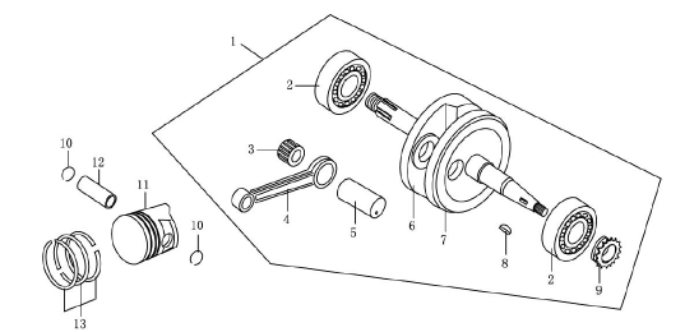

| CRANKSHAFT & PISTON | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02774-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $98.00 | |
| 2 | A02785-09-00 | BEARING | 6304 | 2 | Pcs. | $11.00 |
| 3 | A02786-09-00 | BEARING | 1 | Pc. | $8.00 | |
| 4 | A02779-09-00 | CONNECTING ROD | 1 | Pc. | $10.00 | |
| 5 | A02782-09-00 | CRANKSHAFT PIN | 1 | Pc. | $6.00 | |
| 6 | A02780-09-00 | RIGHT CRANKSHAFT HALF | 1 | Pc. | $33.00 | |
| 7 | A02781-09-00 | LEFT CRANKSHAFT HALF | 1 | Pc. | $33.00 | |
| 8 | A01113-09-00 | WOODRUFF KEY | 2 | Pc. | $1.50 | |
| 9 | A02783-09-00 | CAM CHAIN SPROCKET | 1 | Pc. | $8.00 | |
| 10 | A02778-09-00 | PISTON PIN CIRCLIP | 2 | Pcs. | $1.50 | |
| 11 | A02776-09-00 | PISTON | 1 | Pc. | $32.00 | |
| 12 | A02777-09-00 | PISTON PIN | 1 | Pc. | $6.00 | |
| 13 | A02775-09-00 | PISTON RING SET | 1 | Set | $32.00 | |

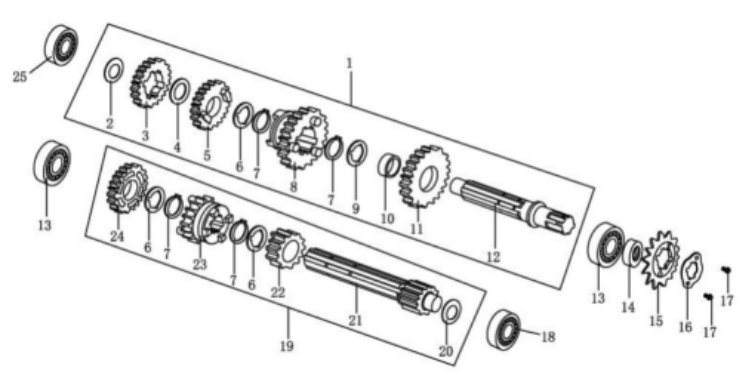

| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00221-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $77.00 | |
| 2 | A00217-17-00 | WASHER | 1 | Pc. | $1.50 | |
| 3 | A00212-17-00 | COUNTERSHAFT 4TH GEAR | 1 | Pc. | $13.00 | |
| 4 | A00215-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 5 | A00210-17-00 | COUNTERSHAFT 3RD GEAR | 1 | Pc. | $13.00 | |
| 6 | A00218-17-00 | WASHER | 3 | Pcs. | $2.00 | |
| 7 | A00220-17-00 | CIRCLIP | 4 | Pcs. | $1.50 | |
| 8 | A00208-17-00 | COUNTERSHAFT 2ND GEAR | 1 | Pc. | $13.00 | |
| 9 | A00219-17-00 | WASHER | 1 | Pc. | $2.00 | |
| 10 | A00206-17-00 | COUNTERSHAFT BUSHING | 1 | Pc. | $7.00 | |
| 11 | A00205-17-00 | COUNTERSHAFT 1ST GEAR | 1 | Pc. | $13.00 | |
| 12 | A00204-17-00 | COUNTER SHAFT | 1 | Pc. | $51.00 | |
| 13 | A00008-28-00 | BEARING | 6203 | 2 | Pcs. | $27.00 |
| 14 | A00001-26-00 | OIL SEAL | 17X29X5 | 1 | Pc. | $4.00 |
| 15 | A00307-07-00 | COUNTERSHAFT SPROCKET | 14T | 1 | Pc. | $14.00 |
| 16 | A00214-17-00 | SPROCKET RETAINER PLATE | 1 | Pc. | $4.00 | |
| 17 | A00031-19-03 | BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 18 | A00003-28-00 | BEARING | 6001 | 1 | Pc. | $8.00 |
| 19 | A00232-17-00 | MAINSHAFT ASSY | 1 | Assy. | $77.00 | |
| 20 | A00216-17-00 | WASHER | 1 | Pc. | $1.50 | |
| 21 | A00203-17-00 | MAINSHAFT | 11T | 1 | Pc. | $51.00 |
| 22 | A00207-17-00 | MAINSHAFT 2ND GEAR | 16T | 1 | Pc. | $13.00 |
| 23 | A00209-17-00 | MAINSHAFT 3RD GEAR | 20T | 1 | Pc. | $13.00 |
| 24 | A00211-17-00 | MAINSHAFT 4TH GEAR | 23T | 1 | Pc. | $13.00 |
| 25 | A00005-28-00 | BEARING | 6201 | 1 | Pc. | $8.00 |

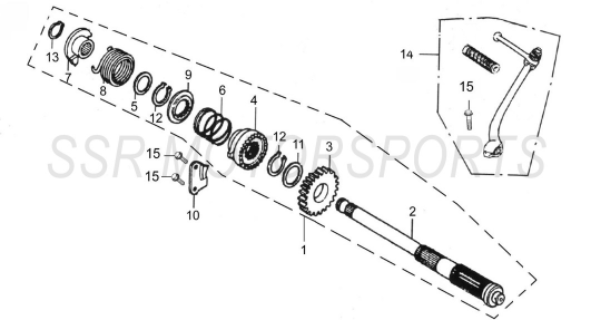

| KICKSTARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02363-09-00 | KICK STARTER SHAFT ASSY | 1 | Assy. | $51.00 | |
| 2 | A02364-09-00 | KICK STARTER SHAFT | 1 | Pc. | $18.00 | |
| 3 | A02365-09-00 | KICK START GEAR | 1 | Pc. | $18.00 | |
| 4 | A02366-09-00 | RATCHET | 1 | Pc. | $13.00 | |
| 5 | A02367-09-00 | WASHER I | 1 | Pc. | $1.50 | |
| 6 | A02368-09-00 | SPRING | 1 | Pc. | $2.00 | |
| 7 | A02369-09-00 | SPRING SEAT | 1 | Pc. | $4.00 | |
| 8 | A02370-09-00 | RETURN SPRING | 1 | Pc. | $2.50 | |
| 9 | A02371-09-00 | SPRING SEAT | 1 | Pc. | $2.50 | |
| 10 | A02372-09-00 | RETAINER PLATE | 1 | Pc. | $4.00 | |
| 11 | A02373-09-00 | WASHER II | 1 | Pc. | $1.50 | |
| 12 | A01130-09-00 | CIRCLIP | 2 | Pcs. | $1.50 | |
| 13 | A01131-09-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 14 | A00321-05-00 | KICKSTARTER LEVER ASSY | 1 | Assy. | $23.00 | |
| 15 | A00047-19-03 | HEX BOLT | M6X20 | 3 | Pcs. | $1.50 |

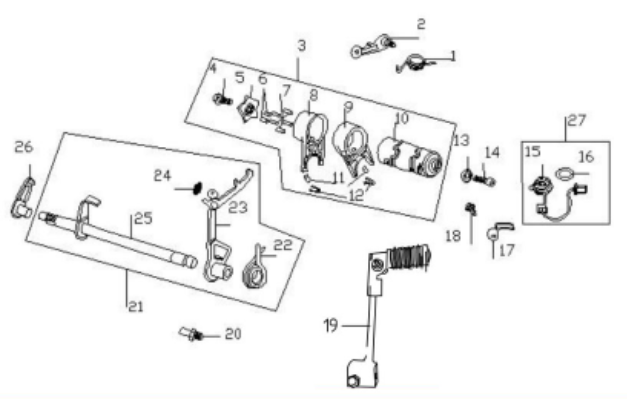

| GEAR SHIFT DRUM | ||||||
 |

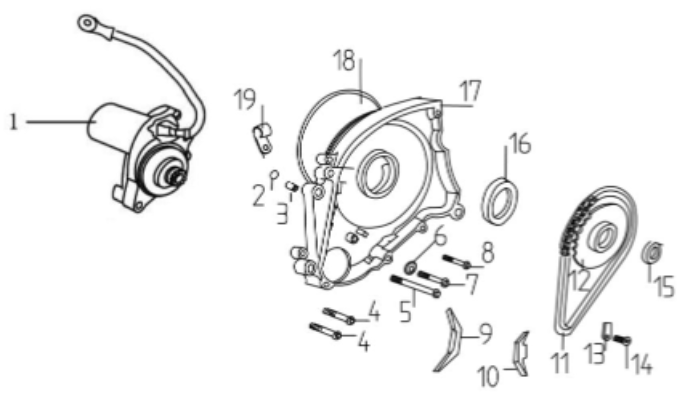

||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01145-09-00 | GEAR SETTING ARM | 1 | Pc. | $8.00 | |
| 2 | A01147-09-00 | TORSION SETTING PLATE SPRING | 1 | Pc. | $1.50 | |
| 3 | A01141-09-00 | GEARSHIFT DRUM ASSY | 1 | Assy. | $59.00 | |
| 4 | A00002-19-05 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 5 | A01144-09-00 | GEAR INDICATING PIN PLATE | 1 | Pc. | $6.00 | |
| 6/7 | A01143-09-00 | PIN | 5 | Pcs. | $1.50 | |
| 8/9 | A01148-09-00 | SHIFT FORK | 2 | Pcs. | $11.00 | |
| 10 | A01142-09-00 | GEARSHIFT DRUM | 1 | Pc. | $39.00 | |
| 11 | A01149-09-00 | STRIKING PIN | 2 | Pcs. | $1.50 | |
| 12 | A01150-09-00 | CLIP | 2 | Pcs. | $1.50 | |
| 13 | A00011-21-01 | WASHER | 6X18X1.5 | 1 | Pc. | $1.50 |
| 14 | A00006-20-01 | PHILLIPS BOLT | M6X12 | 1 | Pc. | $1.50 |
| 15 | A01151-09-00 | RUBBER PLUG | 1 | Pc. | $2.50 | |
| 16 | O-RING? | PROB NOT | ||||
| 17 | WIRE RETAINER | 1 | Pc. | #N/A | ||
| 18 | BOLT | M6X12 | 1 | Pc. | #N/A | |
| 19 | A00567-05-00 | GEARSHIFT LEVER ASSY | 1 | Assy. | $24.00 | |
| 20 | A01140-09-00 | RETURN SPRING STOPPER | 1 | Pc. | $2.50 | |
| 21 | A02894-09-00 | GEARSHIFT SHAFT ASSY | 1 | Assy. | $59.00 | |
| 22 | A01138-09-00 | GEARSHIFT SPRING | 1 | Pc. | $2.00 | |
| 23 | A02896-09-00 | GEAR SHIFT ARM ASSY | 1 | Assy. | $24.00 | |
| 24 | A01137-09-00 | SHIFTER ARM SPRING | 1 | Pc. | $1.50 | |
| 25 | A02895-09-00 | GEARSHIFT SHAFT | 1 | Pc. | $35.00 | |
| ADD | A00022-19-03 | BOLT | M6X30 | 1 | Pc. | $1.50 |
| STARTER MOTOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02510-09-00 | STARTER MOTOR ASSY | 1 | Assy. | $85.00 | |
| 2 | O-RING | 5.8X1.9 | 1 | Pc. | #N/A | |
| 3 | A00003-23-00 | DOWEL PIN | 8X12 | 2 | Pcs. | $1.50 |
| 4 | A00424-19-08 | CASE FLANGE BOLT | M6X32 | 2 | Pcs. | $1.50 |
| 5 | A00437-19-08 | CASE FLANGE BOLT | M6X105 | 1 | Pc. | $2.00 |
| 6 | A01177-09-00 | ALUMINUM WASHER | M6 | 1 | Pc. | $1.50 |
| 7 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 1 | Pc. | $1.50 |
| 8 | A00424-19-08 | CASE FLANGE BOLT | M6X32 | 1 | Pc. | $1.50 |
| 9 | A02433-09-00 | STARTER CHAIN SLIDER A | 1 | Pc. | $4.00 | |
| 10 | A02435-09-00 | STARTER CHAIN SLIDER B | 1 | Pc. | $4.00 | |
| 11 | A02520-09-00 | STARTER CHAIN | 62L | 1 | Pc. | $11.00 |
| 12 | A02436-09-00 | STARTER PINION GEAR | 1 | Pc. | $23.00 | |
| 13 | A03009-09-00 | STARTER CLUTCH SPRKT RETAINING PLATE | 1 | Pc. | $1.50 | |
| 14 | A00445-19-08 | CASE FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 15 | A00003-26-00 | OIL SEAL | 18.9X30X5 | 1 | Pc. | $4.00 |
| 16 | A00059-26-00 | OIL SEAL | 30X42X4.5 | 1 | Pc. | $4.00 |
| 17 | A02504-09-00 | STARTER MOTOR BRACKET | 1 | Pc. | $27.00 | |
| 18 | A00093-27-00 | O-RING | 116.8X2 | 1 | Pc. | $8.00 |
| 19 | A01310-09-00 | COIL WIRE RETAINER | 2 | Pcs. | $1.50 | |
| ENGINE PART SETS | ||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | COMPLETE ENGINE GASKET SET | 1 | Set | #N/A | ||
| 2 | COMPLETE ENGINE SEALS SET | 1 | Set | #N/A | ||
| 3 | COMPLETE TOP END GASKET SET | 1 | Set | #N/A | ||
-
-
-
-
-
Sale
