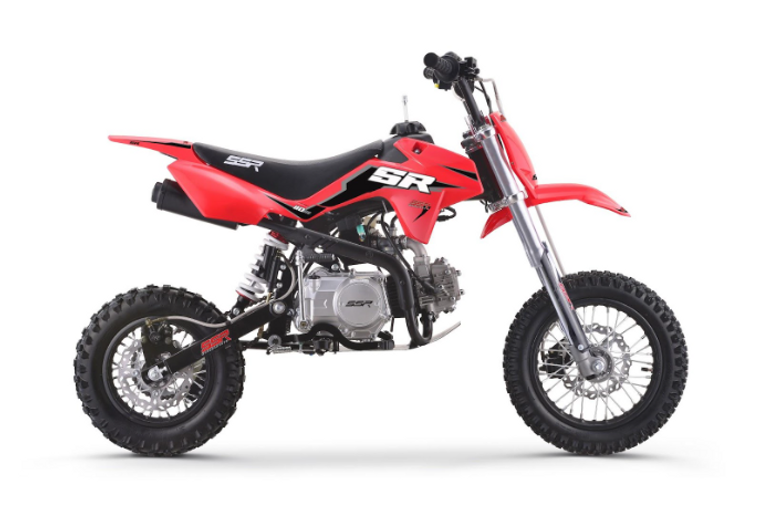

SSR SR110SE Parts Schematic (2025)
 |
||||||
| HANDLEBARS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00397-05-00 | THROTTLE GRIP W/ TUBE | 1 | Assy. | $8.00 | |
| 2 | A00310-05-00 | HANDLEBAR | SR110/125 | 1 | Pc. | $32.00 |
| 3 | A00311-05-00 | THROTTLE HOUSING | 1 | Pc. | $18.00 | |
| 4 | A00345-05-00 | THROTTLE CABLE | 780 119 | 1 | Pc. | $18.00 |
| 5 | A00401-05-00 | HANDLEBAR PAD COVER (SSR) | 220X172 | 1 | Pc. | $8.00 |
| 6 | A00402-05-00 | HANDLEBAR PAD | 12X53X220 | 1 | Pc. | $8.00 |
| 7 | A00001-24-01 | ZIP-TIE | 5X200MM/380 | 2 | Pc. | $1.50 |
| 8 | A00676-08-00 | KILL SWITCH | L=750 | 1 | Pc. | $11.00 |
| 8-1 | A00675-08-00 | START SWITCH | L=750 | 1 | Pc. | $18.00 |
| 9 | A00347-05-00 | LEFT HANDLEBAR GRIP | 1 | Pc. | $7.00 | |
| 10 | A00511-05-00 | RIGHT HANDLEBAR GRIP (ONLY) | 1 | Pc. | $7.00 | |
| 11 | A00510-05-00 | THROTTLE TUBE (ONLY) | 1 | Pc. | $4.00 | |

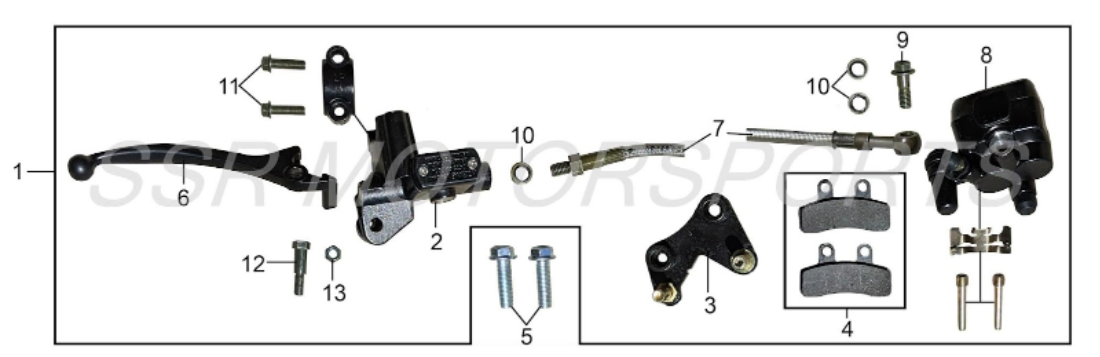

| FRONT BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00783-04-00 | FRONT BRAKE ASSY | 1 | Assy. | $98.00 | |
| 2 | A00787-04-00 | FRONT BRAKE MASTER CYLINDER | 1 | Assy. | $63.00 | |
| 3 | A00784-04-00 | FRONT BRAKE CALIPER BRACKET | 1 | Pc. | $18.00 | |
| 4 | A00467-04-00 | FRONT BRAKE PAD SET | 1 | Set | $18.00 | |
| 5 | A00041-19-01 | FLANGE BOLT | GB5789-86 M8X30 S12 | 2 | Pcs. | $1.50 |
| 6 | A00785-04-00 | FRONT BRAKE LEVER | 1 | Pc. | $18.00 | |
| 7 | A00786-04-00 | FRONT BRAKE HOSE | 1000MM | 1 | Pc. | $18.00 |
| 8 | I THINK SAME... | FRONT BRAKE CALIPER | 1 | Assy. | $76.00 | |
| 9 | A00675-04-00 | BANJO BOLT | M8 | 1 | Pc. | $2.00 |
| 10 | A00676-04-00 | SEALING WASHER | M8 | 3 | Pcs. | $1.50 |
| 11 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 12 | A00481-19-07 | LEVER PIVOT BOLT | 1 | Pc. | $2.00 | |
| 13 | A00005-22-X4 | LOCKNUT | M6 | 1 | Pc. | $1.50 |

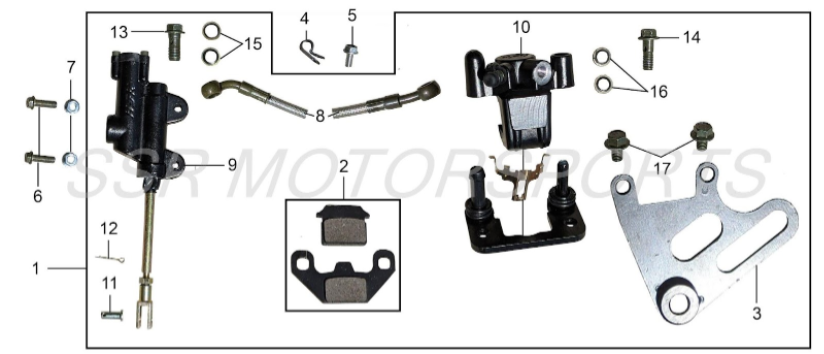

| REAR BRAKE SYSTEM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00529-04-00 | REAR BRAKE ASSY | L=470 | 1 | Assy. | $103.00 |
| 2 | A00469-04-00 | REAR BRAKE PAD SET | 1 | Set | $18.00 | |
| 3 | A00470-04-00 | REAR BRAKE CALIPER CARRIER | 190 12 | 1 | Pc. | $23.00 |
| 4 | A00523-04-00 | REAR BRAKE HOSE RETAINER | 1 | Pc. | $2.00 | |
| 5 | A00006-20-01 | PHILLIPS BOLT | M6X12 | 1 | Pc. | $1.50 |
| 6 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 7 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 8 | A00593-04-00 | REAR BRAKE HOSE | L=470 | 1 | Pc. | $21.00 |
| 9 | A00585-04-00 | REAR BRAKE MASTER CYLINDER | 1 | Assy. | $76.00 | |
| 10 | A00584-04-00 | REAR BRAKE CALIPER | 1 | Assy. | $85.00 | |
| 11 | A00417-04-00 | REAR BRAKE PIN | 1 | Pc. | $1.50 | |
| 12 | A00007-25-01 | COTTER PIN | 1.5X16 | 1 | Pc. | $1.50 |
| 13 | A00688-04-00 | BANJO BOLT | M10 | 1 | Pc. | $2.00 |
| 14 | A00675-04-00 | BANJO BOLT | M8 | 1 | Pc. | $2.00 |
| 15 | A00549-04-00 | SEALING WASHER | M10 | 2 | Pcs. | $1.50 |
| 16 | A00676-04-00 | SEALING WASHER | M8 | 2 | Pcs. | $1.50 |
| 17 | A00089-19-X1 | FLANGE BOLT | M8X12 | 2 | Pcs. | $1.50 |

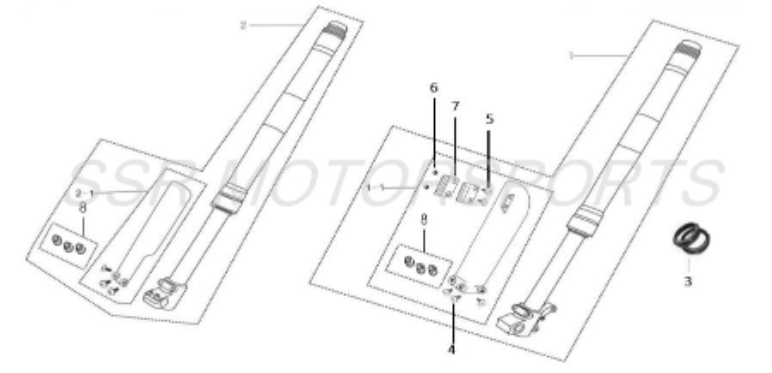

| FRONT SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00767-16-00 | LEFT FORK ASSY | 45/48X630 | 1 | Assy. | #N/A |
| 1-1 | A00703-02-02 | LEFT FORK PROTECTOR | BLACK | 1 | Pc. | $14.00 |
| 2 | A00768-16-00 | RIGHT FORK ASSY | 45/48X630 | 1 | Assy. | #N/A |
| 2-1 | A00704-02-02 | RIGHT FORK PROTECTOR | BLACK | 1 | Pc. | $14.00 |
| 3 | A00751-16-00 | FORK/DUST SEAL SET | 33X46X10.5 + 33X46X15 | 2 | Set | $11.00 |
| 4 | A00106-19-01 | BUTTON HEAD ALLEN BOLT | M6X16 | 8 | Pcs. | $1.50 |
| 6 | A00005-22-04 | LOCKNUT | M6 | 2 | Pcs. | $1.50 |
| 7 | A00800-02-00 | BRAKE LINE HOLDER SET | 1 | Set | $2.50 | |
| 8 | A00701-16-00 | COLLAR | 12X6.5X8.5 | 6 | Pcs. | $1.50 |

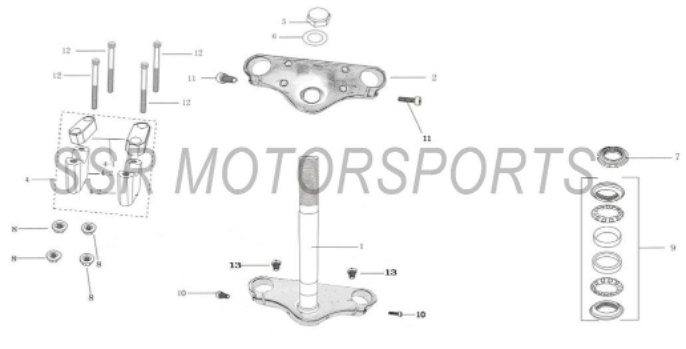

| UPPER AND LOWER TRIPLE CLAMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00423-15-00 | LOWER TRIPLE CLAMP W/ STEERING STEM | CNC | 1 | Pc. | $72.00 |
| 2 | A00424-15-00 | UPPER TRIPLE CLAMP | CNC | 1 | Pc. | $59.00 |
| 4 | A00425-15-00 | HANDLEBAR RISER ASSY | CNC | 1 | Assy. | $30.00 |
| 4-1 | A00421-15-00 | UPPER HANDLEBAR CLAMP | CNC | 2 | Pcs. | $8.00 |
| 4-2 | A00422-15-00 | LOWER HANDLEBAR CLAMP | CNC | 2 | Pcs. | $10.00 |
| 5 | A00166-15-00 | STEERING STEM NUT | M22 | 1 | Pc. | $6.00 |
| 6 | A00170-15-00 | STEERING STEM WASHER | 23X36X2 | 1 | Pc. | $2.50 |
| 7 | A00219-15-00 | STEERING STEM ADJUSTER NUT | CRF | 1 | Pc. | $4.00 |
| 8 | A00007-19-02 | ALLEN BOLT | M8X40 | 4 | Pcs. | $1.50 |
| 8-1 | A00001-21-02 | LOCK WASHER | 8X13X2 | 4 | Pcs. | $1.50 |
| 8-2 | A00013-21-01 | WASHER | 8X16X1.5 | 4 | Pcs. | $1.50 |
| 9 | A00168-15-00 | STEERING STEM BEARING SET | 1 | Set | $30.00 | |
| 10 | A00251-19-02 | ALLEN BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 11 | A00251-19-02 | ALLEN BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 12 | A00125-19-02 | ALLEN BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 13 | A00251-19-02 | ALLEN BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 14 | A00006-21-04 | LOCK WASHER | 8X12X2.5 | 2 | Pcs. | $1.50 |
| 15 | A00002-22-01 | NUT | M8 | 2 | Pcs. | $1.50 |

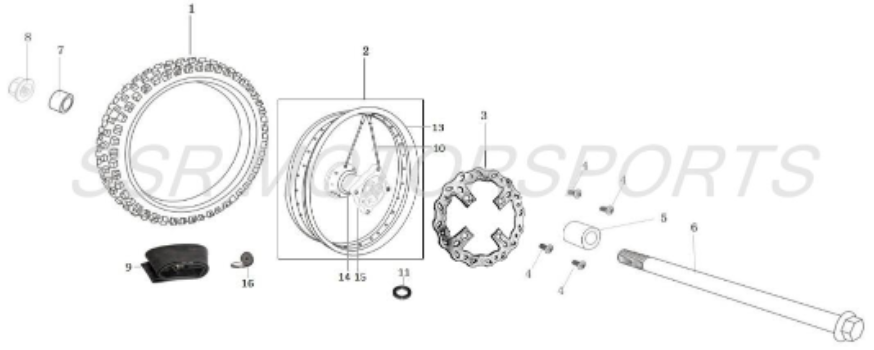

| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00525-18-00 | FRONT TIRE | 2.75-12 | 1 | Pc. | $32.00 |
| 2 | A00356-18-00 | FRONT WHEEL ASSY | 1.6-12/SSR | 1 | Assy. | $92.00 |
| 3 | A00779-04-00 | FRONT BRAKE ROTOR | 210 | 1 | Pc. | $27.00 |
| 4 | A00034-19-10 | ROTOR BOLT | M8X16 ALLEN | 4 | Pcs. | $1.50 |
| 5 | A00665-18-00 | FRONT LEFT WHEEL SPACER | 12X20XH25 | 1 | Pc. | $5.00 |
| 6 | A00331-18-00 | FRONT WHEEL AXLE | 12X215X12X1.25MM | 1 | Pc. | $11.00 |
| 7 | A00664-18-00 | FRONT RIGHT WHEEL SPACER | 12X20XH20 | 1 | Pc. | $6.00 |
| 8 | A00001-22-03 | FLANGE NUT | GB6187-86 M12X1.25 | 1 | Pc. | $2.00 |
| 9 | A00358-18-00 | INNERTUBE | 2.75-12 | 1 | Pc. | $16.00 |
| 10 | A00507-18-00 | FRONT SPOKE SET | 1 | Set | $21.00 | |
| 11 | A00075-28-00 | WHEEL BEARING | 6301RS | 2 | Pcs. | $6.00 |
| 14 | A00399-18-00 | FRONT WHEEL HUB | 1 | Pc. | $72.00 | |
| 16 | A00292-18-00 | RIM STRIP | 12" | Pc. | $6.00 | |

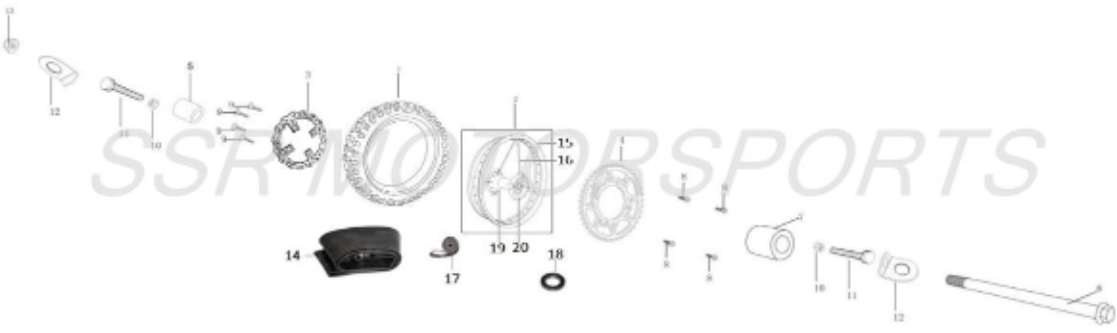

| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00526-18-00 | REAR TIRE | 3.00-10 | 1 | Pc. | $32.00 |
| 2 | A00360-18-00 | REAR WHEEL ASSY | 1.85-10/SSR | 1 | Assy. | $92.00 |
| 3 | A00782-04-00 | REAR BRAKE ROTOR | 190 | 1 | Pc. | $27.00 |
| 4 | A00310-07-00 | REAR SPROCKET | 420/37 76 | 1 | Pc. | $21.00 |
| 5 | A00283-18-00 | REAR RIGHT WHEEL SPACER | 12X20XH27 | 1 | Pc. | $6.00 |
| 6 | A00284-18-00 | REAR AXLE | 12X210XM12X1.25MM | 1 | Pc. | $11.00 |
| 7 | A00285-18-00 | REAR LEFT WHEEL SPACER | X12X20XH33 | 1 | Pc. | $6.00 |
| 8 | A00007-19-01 | FLANGE BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 9 | A00034-19-10 | ROTOR BOLT | M8X16 ALLEN | 4 | Pcs. | $1.50 |
| 10 | A00002-22-01 | NUT | 94001-08000-0S M8 | 2 | Pcs. | $1.50 |
| 11 | A00286-18-00 | BOLT | M8X40 S12 | 2 | Pcs. | $2.00 |
| 12 | A00464-18-00 | CHAIN ADJUSTER PLATE | L34X19X36X3X13 | 2 | Pcs. | $6.00 |
| 13 | A00001-22-03 | FLANGE NUT | M12 | 1 | Pc. | $2.00 |
| 14 | A00362-18-00 | INNERTUBE | 3.00-10 | 1 | Pc. | $16.00 |
| 15 | A00410-18-00 | REAR RIM | 1.85-10 | 1 | Pc. | $39.00 |
| 16 | A00461-18-00 | REAR SPOKE SET | 32 PCS/SET | 1 | SET | $21.00 |
| 17 | A00334-18-00 | RIM STRIP | 10" | 1 | Pc. | $6.00 |
| 18 | A00075-28-00 | WHEEL BEARING | 6301RS | 2 | Pcs. | $6.00 |
| 19 | A00412-18-00 | REAR HUB (PRO) | 110DX ALUMINUM | 1 | Pc. | $76.00 |
| 20 | A00404-08-00 | REAR WHEEL HUB | 1 | Pc. | $72.00 | |

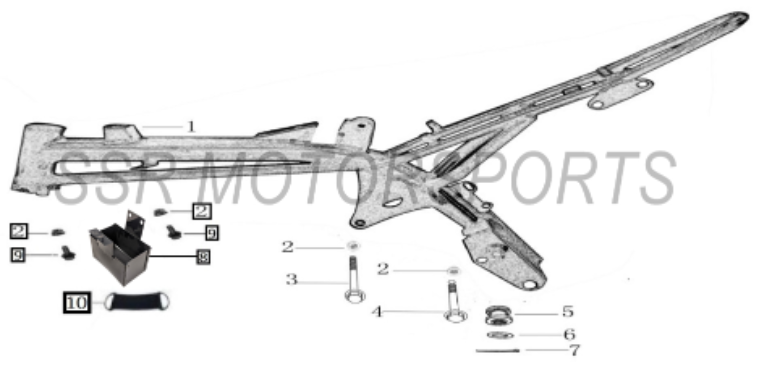

| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00423-05-00 | FRAME | 41X10 *OVERSIZE* | 1 | Pc. | $164.00 |
| 2 | A00100-22-34 | FLANGE LOCKNUT | M8 | 4 | Pcs. | $1.50 |
| 3 | A00046-19-01 | FLANGE BOLT | GB5787-86 M8X110 | 1 | Pc. | $2.50 |
| 4 | A00047-19-01 | FLANGE BOLT | M8X110 (NOTCHED) | 1 | Pc. | $2.50 |
| 5 | A00367-11-00 | CHAIN ROLLER | 1 | Pc. | $8.00 | |
| 6 | A00014-21-01 | WASHER | GB97.1-85 10X20X2 | 1 | Pc. | $1.50 |
| 7 | A00019-28-01 | COTTER PIN | GB91-86 2.5X24 | 1 | Pc. | $1.50 |
| 8 | A00391-11-00 | BATTERY BOX | 1 | Pc. | $26.00 | |
| 9 | A00251-19-02 | ALLEN BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 10 | A00476-08-00 | BATTERY STRAP | 1 | Pc. | $8.00 | |
| 11 | A00013-21-01 | WASHER | 8X16X1.5 | 2 | Pcs. | $1.50 |

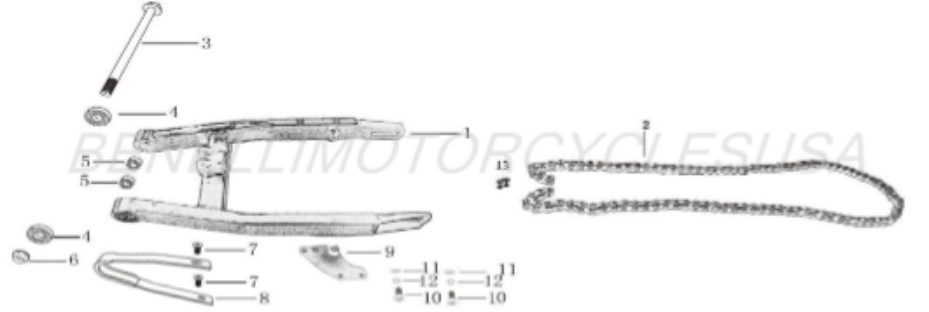

| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00543-11-00 | SWINGARM | 1 | Pc. | $85.00 | |
| 2 | A00290-07-00 | DRIVE CHAIN | 420-92L | 1 | Pc. | $39.00 |
| 3 | A00369-11-00 | SWINGARM AXLE | 10X190XM10X1.25MM | 1 | Pc. | $10.00 |
| 4 | A00011-28-00 | BEARING | 6200Z | 2 | Pcs. | $8.00 |
| 5 | A00373-11-00 | SLEEVE | 10.2X22.5XH17 | 2 | Pcs. | $6.00 |
| 6 | A00004-22-34 | FLANGE LOCKNUT | GB6187-86 M10X1.25 | 1 | Pc. | $2.00 |
| 7 | A00006-20-12 | CS SCREW | M6X12 | 2 | Pcs. | $1.50 |
| 8 | A00542-11-00 | FRONT CHAIN SLIDER | 1 | Pc. | $11.00 | |
| 9 | A00371-11-00 | LOWER CHAIN GUIDE | 1 | Pc. | $21.00 | |
| 10 | A00251-19-02 | ALLEN BOLT | GB70-85 M8X20 | 2 | Pcs. | $1.50 |
| 11 | A00013-21-01 | WASHER | 8X16X1.5MM | 2 | Pcs. | $1.50 |
| 12 | A00001-21-02 | LOCK WASHER | GB93-87 8X13X2 | 2 | Pcs. | $1.50 |
| 13 | A00287-07-00 | CLIP LINK | 420 | 1 | Pc. | $6.00 |
| 14 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 3 | Pcs. | $1.50 |
| 15 | A00005-22-04 | LOCKNUT | M6 | 3 | Pcs. | $1.50 |

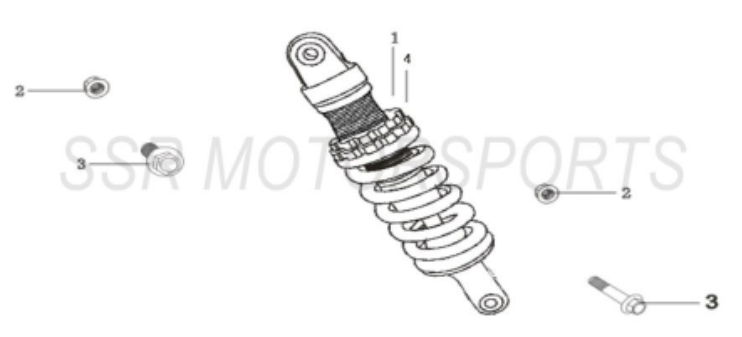

| REAR SHOCK ABSORBER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00766-16-00 | REAR SHOCK ABSORBER | SSR/K-00 L=280 11 | 1 | Pc. | $98.00 |
| 2 | A00004-22-03 | FLANGE NUT | GB6187-86 M10X1.25 | 2 | Pcs. | $1.50 |
| 3 | A00046-19-03 | FLANGE BOLT | GB5787-86 M10X40X1.25 | 2 | Pcs. | $3.50 |

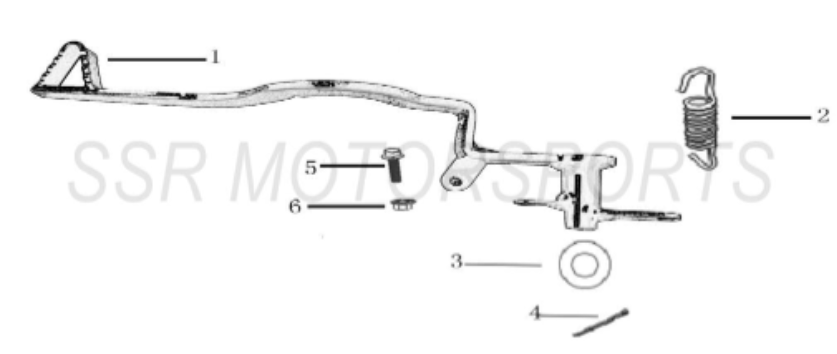

| REAR BRAKE PEDAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00662-05-00 | REAR BRAKE PEDAL | 1 | Pc. | $27.00 | |
| 2 | A00320-05-00 | REAR BRAKE PEDAL RETURN SPRING | 13X2.4XH24X10 | 1 | Pc. | $2.00 |
| 3 | A00015-21-01 | WASHER | 15X30X2.5 | 1 | Pc. | $1.50 |
| 4 | A00019-28-01 | COTTER PIN | 2.5X24 | 1 | Pc. | $1.50 |
| 5 | A00003-19-01 | FLANGE BOLT | M6X25 S10 | 1 | Pc. | $1.50 |
| 6 | A00001-22-01 | NUT | GB6170-86 M6 | 1 | Pc. | $1.50 |

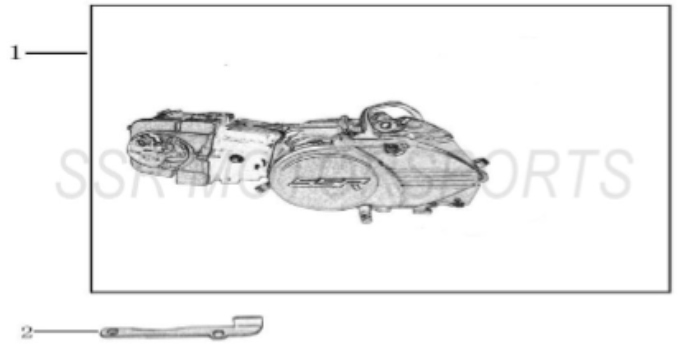

| ENGINE ASSY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03322-09-00 | ENGINE COMPLETE | SEMI *OVERSIZE* | 1 | Pc. | $269.00 |
| 2 | A00323-05-00 | REAR BRAKE PEDAL STOPPER | 1 | Pc. | $10.00 | |

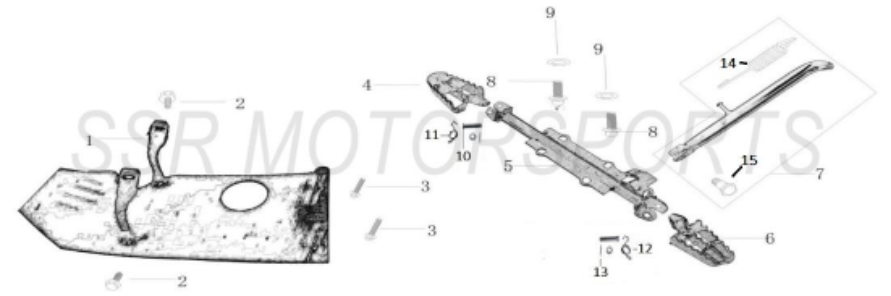

| FOOTPEGS AND SKID PLATE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00372-11-00 | SKID PLATE | STEEL | 1 | Pc. | $42.00 |
| 1 | A00425-11-00 | SKID PLATE | ALUMINUM (SR110DX) | 1 | Pc. | $63.00 |
| 2 | A00002-19-01 | FLANGE BOLT | M6X16 S10 | 2 | Pcs. | $1.50 |
| 3 | A00021-19-01 | FLANGE BOLT | GB5787-86 M8X40 | 2 | Pcs. | $2.00 |
| 4 | A00324-05-00 | RIGHT FOOTPEG | 1 | Pc. | $18.00 | |
| 5 | A00325-05-00 | FOOTPEG BRACKET | 1 | Pc. | $27.00 | |
| 6 | A00326-05-00 | LEFT FOOTPEG | 1 | Pc. | $18.00 | |
| 7 | A00507-05-00 | SIDE STAND ASSY | L=265 | 1 | Assy. | $27.00 |
| 8 | A00015-19-01 | FLANGE BOLT | GB5789-86 M8X20 S12 | 2 | Pcs. | $1.50 |
| 9 | A00004-21-01 | WASHER | 2 | Pcs. | $1.50 | |
| 10 | A00336-05-00 | FOOTPEG PIVOT PIN | 2 | Pcs. | $1.50 | |
| 11 | A00505-05-00 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 12 | A00506-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 13 | A00019-28-01 | COTTER PIN | 2.5X24 | 2 | Pcs. | $1.50 |
| 14 | A00455-05-00 | SIDE STAND SPRING | 1 | Pc. | $2.50 | |
| 15 | A00456-19-07 | SIDE STAND BOLT | M10X26 | 1 | Pc. | $1.50 |

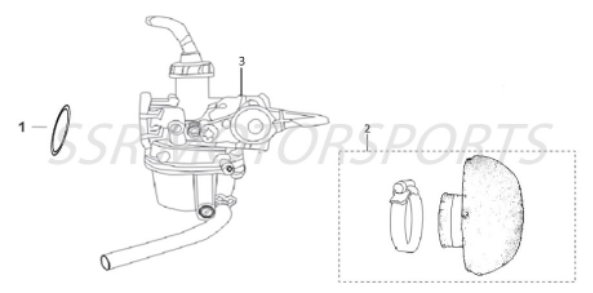

| CARBURETOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00150-27-00 | O-RING | 1 | Pc. | $2.50 | |
| 2 | A00379-14-00 | AIR FILTER ELEMENT - BUTTON | 35 EPA | 1 | Pc. | $23.00 |
| 3 | A00481-12-00 | CARBURETOR | JK 19 EPA | 1 | Pc. | $76.00 |
| 4 | A00416-12-00 | FLOAT BOWL O-RING | 1 | Pc. | $2.50 | |

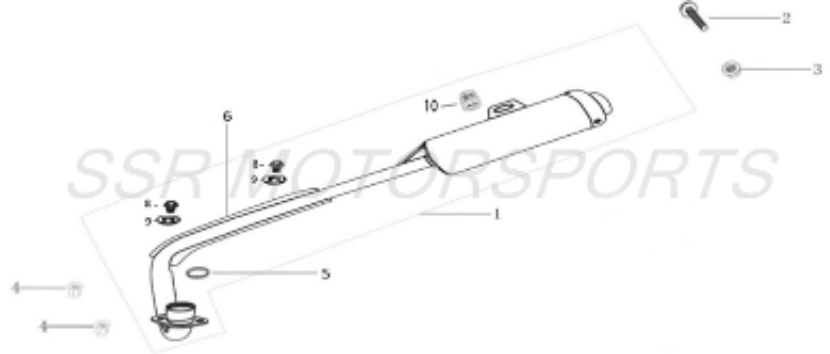

| MUFFLER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00081-10-00 | EXHAUST SYSTEM | BLACK | 1 | Assy. | $76.00 |
| 2 | A00049-19-01 | FLANGE BOLT | GB5789-86 M8X35 S12 | 1 | Pc. | $2.00 |
| 3 | A00100-22-34 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 4 | A00001-22-01 | NUT | GB923 M6 | 2 | Pcs. | $1.50 |
| 5 | A00115-13-00 | EXHAUST GASKET | 1 | Pc. | $6.00 | |
| 6 | A00094-10-00 | MUFFLER GUARD | 1 | Pc. | $14.00 | |
| 8 | A00090-20-01 | MED PANHEAD PHILLIPS BOLT | M6X8 | 2 | Pcs. | $1.50 |
| 9 | A00002-21-02 | LOCK WASHER | M6 | 2 | Pcs. | $1.50 |
| 10 | A00118-10-00 | RUBBER DAMPER | 1 | Pc. | $1.50 | |
| 11 | A00082-01-00 | PRO CIRCUIT T-4 EXHAUST SYSTEM | OPTIONAL ACCESSORY | 1 | Assy. | $488.00 |
| WIRE HARNESS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00013-08-0A | WIRE HARNESS | 1 | Pc. | $42.00 | |
| 2 | A00475-08-00 | STARTER RELAY | 1 | Pc. | $27.00 | |
| 3 | YTX4L-BS | BATTERY | 12V4Ah | 1 | Pc. | $63.00 |
| 4 | A00476-08-00 | BATTERY STRAP | DB70/KMB | 1 | Pc. | $8.00 |
| 5 | A00477-08-00 | REGULATOR / RECTIFIER | 1 | Pc. | $21.00 | |
| 6 | A00478-08-00 | IGNITION SWITCH | W/ 2 KEYS | 1 | Pc. | $30.00 |
| 7 | A00479-08-00 | CDI | 1 | Pc. | $21.00 | |
| 8 | A00480-08-00 | IGNITION COIL | 1 | Pc. | $27.00 | |
| 9 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |
| 10 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 11 | A00156-08-00 | FUSE | 10A | 1 | Pc. | $2.50 |

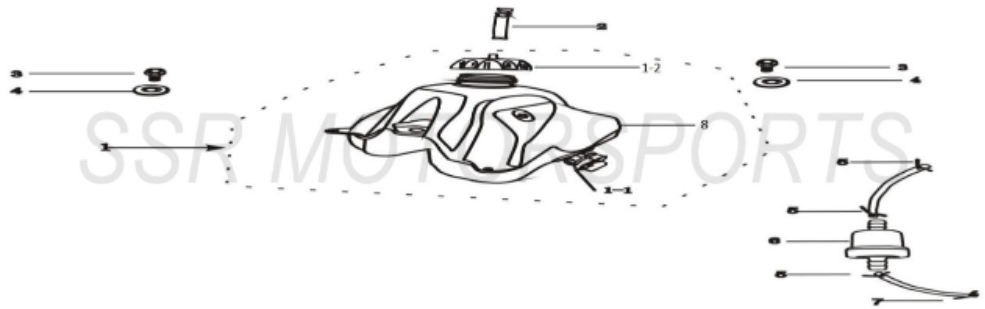

| FUEL TANK | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00482-12-00 | FUEL TANK ASSY | EPA | 1 | Assy. | $56.00 |
| 1-1 | A00330-12-00 | FUEL PETCOCK | 1 | Pc. | $18.00 | |
| 1-2 | A00317-12-00 | FUEL TANK CAP | BLACK PLASTIC | 1 | Pc. | $14.00 |
| 2 | A00332-12-00 | FUEL TANK CAP VENT | 1 | Pc. | $6.00 | |
| 3 | A00007-19-01 | FLANGE BOLT | M8X25 | 2 | Pcs. | $1.50 |
| 4 | A00012-21-01 | WASHER | 8X28X1.5 | 2 | Pcs. | $1.50 |
| 5 | A00002-24-03 | WIRE HOSE CLAMP | 7.5 | 3 | Pcs. | $1.50 |
| 6 | A00254-12-00 | FUEL FILTER | ONLY | 1 | Pc. | $4.00 |
| 6 | A00483-12-00 | FUEL FILTER W/ HOSES + CLAMPS | EPA | 1 | Assy. | $6.00 |
| 7 | A00003-24-03 | WIRE HOSE CLAMP | 9 | 1 | Pc. | $1.50 |
| 8 | A00484-12-00 | FUEL TANK | ONLY - EPA | 1 | Pc. | $42.00 |
| 9 | A00485-12-00 | FUEL HOSE | EPA A=70MM B=210MM | 1 | Set | $4.00 |
| 10 | A00468-12-00 | FUEL PETCOCK GASKET | 1 | Pc. | $7.00 | |

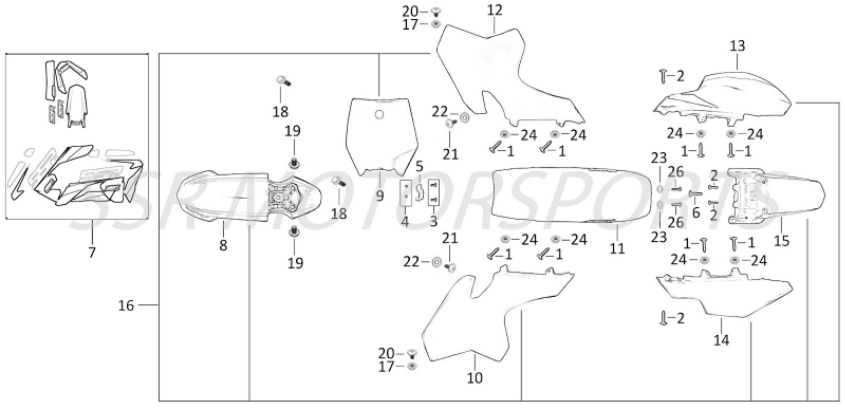

| BODY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00010-20-03 | SCREW | ST4.2X16 | 8 | Pcs. | $1.50 |
| 2 | A00002-20-03 | SCREW | ST4.2X12 | 4 | Pcs. | $1.50 |
| 3 | A00009-20-01 | SCREW | M4X12 | 2 | Pcs. | $1.50 |
| 4 | A00348-22-04 | LOCKNUT | M4 | 2 | Pcs. | $1.50 |
| 5 | A00684-02-00 | FRONT BRAKE HOSE GUIDE | WHITE | 1 | Pc. | $1.50 |
| 6 | A00009-20-03 | ST SCREW | ST4.8X16 | 1 | Pc. | $1.50 |
| 7 | A01159-02-00 | GRAPHIC KIT | SILVER | 1 | Kit | $39.00 |
| 7 | A01160-02-00 | GRAPHIC KIT | BLUE | 1 | Kit | $39.00 |
| 8 | A00685-02-02 | FRONT FENDER | BLACK | 1 | Pc. | $14.00 |
| 8 | A00685-02-18 | FRONT FENDER | RED | 1 | Pc. | $14.00 |
| 9 | A00686-02-02 | FRONT NUMBER PLATE | BLACK | 1 | Pc. | $14.00 |
| 9 | A00686-02-18 | FRONT NUMBER PLATE | RED | 1 | Pc. | $14.00 |
| 10 | A00687-02-02 | LEFT FUEL TANK SHROUD | BLACK | 1 | Pc. | $14.00 |
| 10 | A00687-02-18 | LEFT FUEL TANK SHROUD | RED | 1 | Pc. | $14.00 |
| 11 | A00717-02-00 | SEAT | LOW | 1 | Pc. | $45.00 |
| 11 | A00666-02-02 | SEAT | TALL (110DX) | 1 | Pc. | $45.00 |
| 12 | A00688-02-02 | RIGHT FUEL TANK SHROUD | BLACK | 1 | Pc. | $14.00 |
| 12 | A00688-02-18 | RIGHT FUEL TANK SHROUD | RED | 1 | Pc. | $14.00 |
| 13 | A00689-02-02 | RIGHT REAR NUMBER PLATE | BLACK | 1 | Pc. | $14.00 |
| 13 | A00689-02-18 | RIGHT REAR NUMBER PLATE | RED | 1 | Pc. | $14.00 |
| 14 | A00690-02-02 | LEFT REAR NUMBER PLATE | BLACK | 1 | Pc. | $14.00 |
| 14 | A00690-02-18 | LEFT REAR NUMBER PLATE | RED | 1 | Pc. | $14.00 |
| 15 | A00691-02-02 | REAR FENDER | BLACK | 1 | Pc. | $14.00 |
| 15 | A00691-02-18 | REAR FENDER | RED | 1 | Pc. | $14.00 |
| 16 | A00692-02-02 | COMPLETE PLASTIC KIT | BLACK | 1 | Kit | $42.00 |
| 16 | A00692-02-18 | COMPLETE PLASTIC KIT | RED | 1 | Kit | $42.00 |
| 17 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 18 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 19 | A00008-19-03 | BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 20 | A00003-20-01 | PHILLIPS BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 21 | A00010-19-29 | PAN HEAD PHILLIPS BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 22 | A00016-21-01 | RUBBER WASHER | 6X17X3.5 | 2 | Pcs. | $1.50 |
| 23 | A00011-21-01 | WASHER | 6X18X1.5 | 2 | Pcs. | $1.50 |
| 24 | A00017-21-01 | WASHER | 6X12X1.5 | 6 | Pcs. | $1.50 |
| 26 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 27 | A00685-02-00 | SPACER | 8X16XH6.5 | 1 | Pc. | $1.50 |
SSR SR110SE Parts Schematic (2025)
The SSR SR110SE Parts Schematic (2025) is a comprehensive and detailed guide to all the components and parts that make up the SSR SR110SE pit bike. This schematic is an essential resource for owners, mechanics, and enthusiasts who need to maintain, repair, or upgrade their SSR SR110SE. It provides a complete breakdown of every part, including part numbers, descriptions, specifications, quantities, and retail prices, ensuring you have all the information needed to keep your pit bike in top condition.
Key Features of the SSR SR110SE Parts Schematic
-
Detailed Part Listings:
-
The schematic includes every component of the SSR SR110SE, from the handlebars and brakes to the engine and body panels. Each part is listed with its part number, description, specifications, quantity, unit, and retail price, making it easy to identify and order the correct parts.
-
-
Organized by System:
-
The parts are organized into logical sections, such as Handlebars, Front Brake System, Rear Brake System, Front Suspension, Frame, Swingarm, Engine Assembly, and more. This organization ensures quick and easy navigation.
-
-
High-Quality Components:
-
The SSR SR110SE is built with premium parts, including DOT-approved tires, steel-belted radial tires, CNC-machined triple clamps, and high-performance shock absorbers. The schematic highlights these high-quality components, ensuring you can maintain the bike's performance and durability.
-
-
Compatibility Information:
-
The schematic specifies which parts are compatible with specific models, such as the SR110/125 handlebars and the 420-92L drive chain. This ensures you purchase the correct parts for your bike.
-
-
Easy Installation Guidance:
-
Many parts, such as the handlebar assembly, brake systems, and footpegs, come with installation instructions or reuse existing hardware, making repairs and upgrades straightforward.
-
-
Customization Options:
-
The schematic includes optional accessories, such as the Pro Circuit T-4 Exhaust System and graphic kits in various colors, allowing you to personalize your SSR SR110SE.
-
Sections Included in the Schematic
-
Handlebars:
-
Includes throttle grips, handlebars, throttle housing, kill switch, start switch, and handlebar pads.
-
-
Front Brake System:
-
Features front brake assemblies, master cylinders, brake pads, brake levers, and brake hoses.
-
-
Rear Brake System:
-
Includes rear brake assemblies, calipers, master cylinders, brake hoses, and sealing washers.
-
-
Front Suspension:
-
Covers fork assemblies, fork protectors, dust seals, and brake line holders.
-
-
Upper and Lower Triple Clamp:
-
Includes CNC-machined triple clamps, handlebar risers, and steering stem components.
-
-
Front and Rear Wheels:
-
Features tires, wheel assemblies, brake rotors, spokes, wheel bearings, and axle components.
-
-
Frame and Swingarm:
-
Includes the frame, swingarm, chain rollers, and battery box.
-
-
Rear Shock Absorber:
-
Covers the rear shock absorber and mounting hardware.
-
-
Engine Assembly:
-
Includes the complete engine assembly, carburetor, air filter, and exhaust system.
-
-
Footpegs and Skid Plate:
-
Features footpegs, footpeg brackets, side stand, and skid plates.
-
-
Carburetor and Fuel System:
-
Includes the carburetor, fuel tank, fuel petcock, fuel filter, and fuel hoses.
-
-
Muffler and Exhaust System:
-
Covers the exhaust system, muffler guard, and optional Pro Circuit T-4 exhaust.
-
-
Wire Harness and Electrical Components:
-
Includes the wire harness, battery, starter relay, ignition switch, CDI, and ignition coil.
-
-
Body and Plastic Components:
-
Features front and rear fenders, number plates, fuel tank shrouds, seats, and graphic kits.
-
Why Choose the SSR SR110SE Parts Schematic?
-
Comprehensive Resource: Covers every part of the SSR SR110SE, ensuring you have all the information needed for maintenance and repairs.
-
Easy to Use: Organized by system, with clear part numbers and descriptions.
-
High-Quality Parts: Highlights premium components for optimal performance.
-
Customization Options: Includes optional accessories for personalization.
-
Cost-Effective: Provides retail prices, helping you budget for repairs and upgrades.
SSR SR110SE parts schematic, SSR SR110SE parts list, SSR SR110SE parts diagram, SSR SR110SE handlebars, SSR SR110SE brake system, SSR SR110SE suspension, SSR SR110SE wheels, SSR SR110SE frame, SSR SR110SE engine, SSR SR110SE exhaust, SSR SR110SE carburetor, SSR SR110SE fuel system, SSR SR110SE wire harness, SSR SR110SE body panels, SSR SR110SE graphic kit, SSR SR110SE maintenance, SSR SR110SE repair, SSR SR110SE upgrade, SSR SR110SE parts catalog, SSR SR110SE parts pricing.
