Exhaust Pipe for Kayo K4
Kayo
$127.50
(No reviews yet)
Write a Review
Kayo
Exhaust Pipe for Kayo K4
Exhaust Pipe for Kayo K4

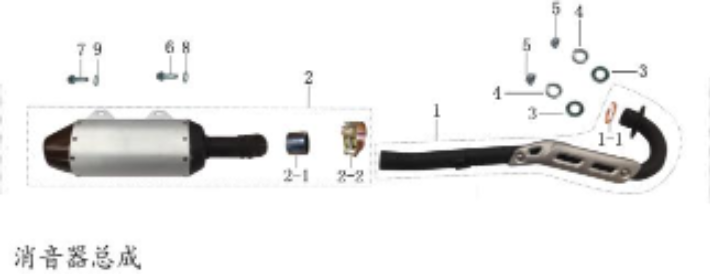

#1 in parts schematic (see below)
OEM Part# 106001-0081
 |
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 106001-0081 | exhaust pipe | 1 | /ea | $ 127.50 |
| 1--1 | 106003-0001 | exhaust pipe gasket | 1 | /ea | $ 8.50 |
| 2 | 106002-0012 | muffler | 1 | /ea | $ 178.50 |
| 2--1 | 106006-0001 | graphite sleeve | 1 | /ea | $ 17.00 |
| 2--2 | 106004-0006 | collar | 1 | /ea | $ 13.60 |
| 3 | 903002-0004 | flat washer | 2 | /ea | $ 3.40 |
| 4 | 903001-0004 | spring washer | 2 | /ea | $ 3.40 |
| 5 | 903007-0005 | flange locknut | 2 | /ea | $ 3.40 |
| 6 | 903019-0013 | flange bolt | 1 | /ea | $ 3.40 |
| 7 | 903019-0018 | flange bolt | 1 | /ea | $ 5.10 |
| 8 | 902001-0011 | busher | 1 | /ea | $ 3.40 |
| 9 | 902001-0009 | busher | 1 | /ea | $ 5.10 |
