Product Description
Rear Brake Assembly for Kayo K2 230
OEM Part # 405000-0133

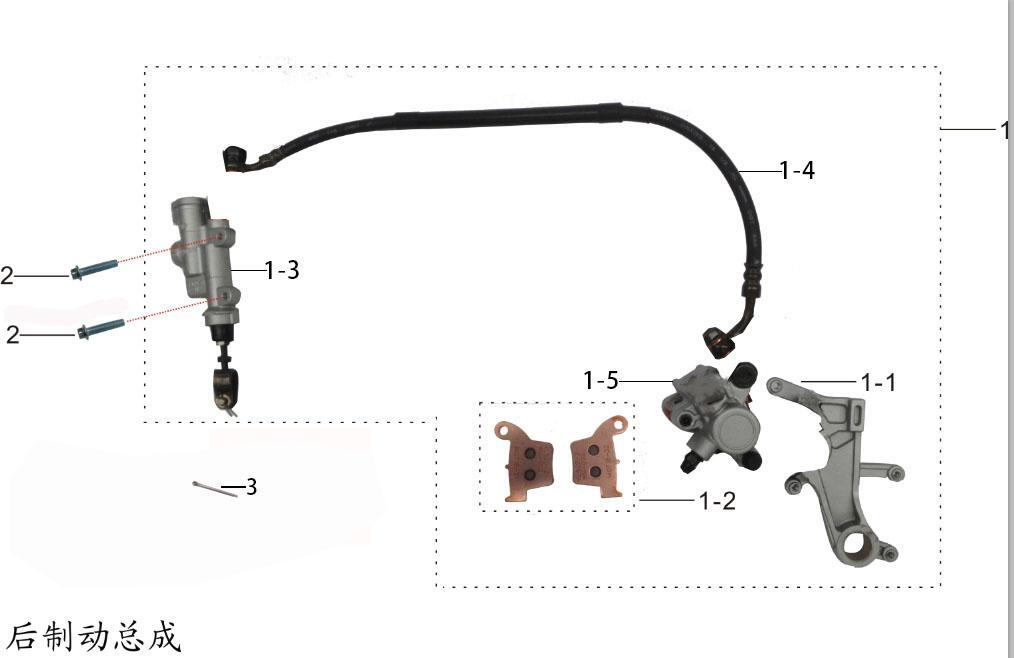

#1 shown in parts schematic
| No. | U8 Code | Model | EN name | Qty/vehicle | QTY | Retail |
| 1 | 405000-0133 | K2 EPA | rear brake assy L=585 | 1 | /ea | $ 136.00 |
| 1-1 | 405009-0013 | K2 EPA | rear bracket | 1 | /ea | $ 32.30 |
| 1-2 | 405008-0015 | K2 EPA | rear brake pad | 1 | /ea | $ 25.50 |
| 1-3 | 405004-0020 | K2 EPA | rear brake master cylinder | 1 | /ea | $ 51.00 |
| 1-4 | 405006-0025 | K2 EPA | rear brake oil pipe L=585mm | 1 | /ea | $ 25.50 |
| 1-5 | 405007-0029 | K2 EPA | rear brake caliper | 1 | /ea | $ 59.50 |
| 2 | 903020-0034 | K2 EPA | screw M6*20 | 2 | /ea | $ 3.40 |
| 2 | 903020-0034-02 | K2 EPA | screw M6*20(11.1.23~) | 2 | /ea | $ 3.40 |
| 3 | 904002-0001 | K2 EPA | cotter pin 2*20 | 1 | /ea | $ 1.70 |
| 3 | 904002-0001-03 | K2 EPA | cotter pin 2*20 (11.1.23~) | 1 | /ea | $ 1.70 |
