Snow Track Kit For Kayo Predator 125
Kayo
$0.00
(No reviews yet)
Write a Review
Kayo

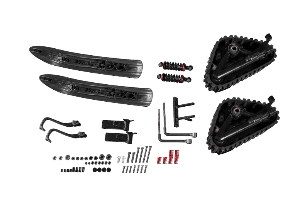

Snow Track Kit For Kayo Predator 125
 |
|||||||
 |
 |
||||||
 |
 |
||||||
| part number | desription | qty per kit | MSRP | ||||
 |
|||||||
| 1 | 402009-0004 | SNOW KIT COMPLETE | 1 | $615.00 | |||
| REPLACMENT PARTS | |||||||
 |
|||||||
| part number | desCription | qty per kit | MSRP | ||||
| 1 | 402009-0002-03 | ski set | ea | 2 | $76.50 | ||
| 2 | 402009-0005 | ski shock | ea | 2 | $37.40 | ||
|
3
|
402009-0002-01 | track set-L | ea | 1 | $323.00 | ||
| 402009-0002-02 | track set-R | ea | 1 | $323.00 | |||
| 4 | 402009-0007 | ski hoop front | ea | 2 | $34.00 | ||
|
5
|
402009-0006 | spinlde ski mount-L | ea | 1 | $68.00 | ||
| 402009-0006-02 | spinlde ski mount-R | ea | 1 | $68.00 | |||
| 6 | 402009-0008 | anti roll brakcet | ea | 2 | $42.50 | ||
| 7 | 402009-0009 | anti roll bracket | ea | 1 | $51.00 | ||
| 8 | 402009-0010 | anti roll springs big | ea | 2 | $23.80 | ||
| 9 | 402009-0011 | anti roll springs small | ea | 2 | $20.40 | ||
| 10 | 402009-0013 | ski bolts | ea | 2 | $10.20 | ||
| 11 | 402009-0012 | lower hoop bolts | ea | 2 | $5.10 | ||
| 12 | 402009-0016 | upper hoop bolts | ea | 2 | $13.60 | ||
| 13 | 402009-0022 | upper shock bolts | ea | 2 | $6.80 | ||
| 14 | 402009-0024 | nut | ea | 2 | $10.20 | ||
| 15 | 402009-0020 | nut | ea | 2 | $5.10 | ||
| 16 | 402009-0019 | nut | ea | 4 | $5.10 | ||
| 17 | 402009-0021 | nut | ea | 4 | $5.10 | ||
| 18 | 402009-0023 | nut | ea | 2 | $5.10 | ||
| 19 | 402009-0025 | bushing small | ea | 4 | $6.80 | ||
| 20 | 402009-0026 | bushing large | ea | 4 | $10.20 | ||
| 21 | 402009-0018 | nut | ea | 2 | $3.40 | ||
| 22 | 402009-0027 | bushing | ea | 4 | $8.50 | ||
| 23 | 402009-0017 | nut | ea | 6 | $5.10 | ||
| 24 | 402009-0014 | bolt | ea | 3 | $6.80 | ||
| 25 | 402009-0015 | bolt | ea | 4 | $6.80 | ||
