SSR XD250 Engine Internal Schematics
| CYLINDER HEAD & CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03062-09-00 | CYLINDER HEAD ASSY | 1 | Pc. | $376.00 | |
| 2 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 4 | Pcs. | $1.50 |
| 3 | A00013-23-00 | DOWEL PIN | 8X10 | 2 | Pcs. | $1.50 |
| 4 | D8EA | SPARK PLUG | NGK | 1 | Pc. | $10.00 |
| 5 | A03063-09-00 | VALVE INSPECTION CAP | 2 | Pcs. | $7.00 | |
| 6 | A00052-27-00 | O-RING | 35X3 | 2 | Pcs. | $2.50 |
| 7 | A00005-22-06 | CAP NUT | M8X18 | 4 | Pcs. | $2.50 |
| 8 | A00001-21-04 | COPPER WASHER | 8X18X2.5 | 4 | Pcs. | $2.50 |
| 9 | A00309-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $13.00 | |
| 10 | A00010-19-04 | STUD | M8X35 | 2 | Pcs. | $1.50 |
| 11 | A00372-14-00 | INTAKE MANIFOLD W/ FLANGE | RUBBER | 1 | Pc. | $13.00 |
| 12 | A00292-21-01 | WASHER | 6X11X1.5 | 1 | Pc. | $1.50 |
| 13 | A00001-19-08 | CASE FLANGE BOLT | M6X125 | 1 | Pc. | $2.00 |
| 14 | A03064-09-00 | LEFT CYLINDER HEAD COVER | 1 | Pc. | $10.00 | |
| 15 | A00002-27-00 | O-RING | 75X2.5 | 1 | Pc. | $5.00 |
| 16 | A00310-13-00 | LEFT CYLINDER HEAD COVER GASKET | 1 | Pc. | $1.50 | |
| 17 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 18 | A00018-23-00 | DOWEL PIN | 10X20 | 2 | Pcs. | $1.50 |
| 19 | A03065-09-00 | CYLINDER | 1 | Pc. | $216.00 | |
| 20 | A00311-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $8.00 | |
| VALVES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03080-09-00 | VALVE STEM SEAL | 5X10.6X8.4 | 2 | Pcs. | $3.50 |
| 2 | A03066-09-00 | CAMSHAFT SPROCKET | 34T | 1 | Pc. | $11.00 |
| 3 | A03067-09-00 | CAMSHAFT | 1 | Pc. | $101.00 | |
| 4 | A03068-09-00 | ROCKER ARM | 2 | Pcs. | $21.00 | |
| 5 | A03069-09-00 | ROCKER ARM SHAFT | 12X64 | 2 | Pcs. | $13.00 |
| 6 | A03070-09-00 | ROCKER ARM SHAFT RETAINER PLATE | 1 | Pc. | $7.00 | |
| 7 | A03071-09-00 | INTAKE VALVE | 1 | Pc. | $30.00 | |
| 8 | A03072-09-00 | EXHAUST VALVE | 1 | Pc. | $30.00 | |
| 9 | A03073-09-00 | OUTER VALVE SPRING | 2 | Pcs. | $8.00 | |
| 10 | A00015-19-03 | HEX BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 11 | A03074-09-00 | UPPER VALVE SPRING RETAINER | 2 | Pcs. | $7.00 | |
| 12 | A03075-09-00 | OUTER VALVE SPRING SEAT | 2 | Pcs. | $3.50 | |
| 13 | A00006-19-07 | CROSS RECESSED COUNTERSUNK HEAD BOLT | M6X16 | 1 | Pc. | $1.50 |
| 14 | A03076-09-00 | VALVE STEM COLLET | 4 | Pcs. | $2.00 | |
| 15 | A03081-09-00 | ADJUSTER SCREW | M6X21.5X0.75 | 2 | Pcs. | $2.00 |
| 16 | A03082-09-00 | ADJUSTER NUT | M6X0.75 | 2 | Pcs. | $2.00 |
| 17 | A03077-09-00 | ROCKER ARM ASSY | 2 | Assy. | $21.00 | |
| 18 | A03078-09-00 | COLLET & UPPER VALVE SPRING RETAINER KIT | 2 | Kit | $8.00 | |
| 19 | A03079-09-00 | INTAKE & EXHAUST VALVE SET | 1 | Set | $53.00 | |
| TIMING CHAIN | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03083-09-00 | TIMING CHAIN | 104T | 1 | Pc. | $59.00 |
| 2 | A03084-09-00 | FRONT CAM CHAIN GUIDE | 1 | Pc. | $18.00 | |
| 3 | A03085-09-00 | CAM CHAIN GUIDE | 1 | Pc. | $18.00 | |
| 4 | A03086-09-00 | CAM CHAIN GUIDE PIVOT BOLT | M8X32.5 | 1 | Pc. | $3.50 |
| 5 | A00089-21-01 | ALUMINUM WASHER | 8X14X1.5 | 1 | Pc. | $1.50 |
| 6 | A03087-09-00 | CAM CHAIN TENSIONER ASSY | 1 | Assy. | $14.00 | |
| 7 | A00418-19-08 | CASE FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 8 | A00312-13-00 | CAM CHAIN TENSIONER GASKET | 1 | Pc. | $2.50 | |
| 9 | A00008-20-02 | PAN HEAD SCREW | M6X6 | 1 | Pc. | $1.50 |
| 10 | A00003-27-00 | O-RING | 9.6X1.7 | 1 | Pc. | $2.00 |
| RIGHT CRANKCASE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 10 | Pcs. | $1.50 |
| 2 | A00006-27-00 | O-RING | 18X3.5 | 1 | Pc. | $2.50 |
| 3 | A03088-09-00 | OIL LEVEL DIPSTICK | 1 | Pc. | $10.00 | |
| 4 | A03089-09-00 | CLUTCH ACTUATOR LEVER | 1 | Pc. | $3.50 | |
| 5 | A00140-27-00 | O-RING | 8.8X1.9 | 2 | Pcs. | $1.50 |
| 6 | A03090-09-00 | CLUTCH RELEASE SPRING | 1 | Pc. | $2.00 | |
| 7 | A00003-25-03 | ROLL PIN | 3.2X16 | 1 | Pc. | $1.50 |
| 8 | A03091-09-00 | CLUTCH COVER | 1 | Pc. | $77.00 | |
| 9 | A00313-13-00 | CLUTCH COVER GASKET | 1 | Pc. | $21.00 | |
| 10 | A00001-23-00 | DOWEL PIN | 8X14 | 2 | Pcs. | $1.50 |
| OIL PUMP / OIL SLING | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03092-09-00 | OIL PUMP ASSY | 1 | Assy. | $39.00 | |
| 2 | A00027-20-01 | CS SCREW | M6X30 | 2 | Pcs. | $1.50 |
| 3 | A00018-24-07 | CIRCLIP | 5 | 1 | Pc. | #N/A |
| 4 | A03093-09-00 | OIL PUMP DRIVEN SPROCKET | 34T | 1 | Pc. | #N/A |
| 5 | A03094-09-00 | OIL PUMP BODY | 1 | Pc. | #N/A | |
| 6 | A03095-09-00 | OUTER ROTOR | 1 | Pc. | #N/A | |
| 7 | A03096-09-00 | INNER ROTOR | 1 | Pc. | #N/A | |
| 8 | A03097-09-00 | OIL PUMP SHAFT | 1 | Pc. | #N/A | |
| 9 | A00004-25-03 | ROLL PIN | 2.5X10 | 1 | Pc. | #N/A |
| 10 | A03098-09-00 | OIL PUMP CAP | 1 | Pc. | #N/A | |
| 11 | A00102-20-01 | CS SCREW | M6X10 | 2 | Pcs. | $1.50 |
| 12 | A00051-27-00 | O-RING | 9.4X2.4 | 2 | Pcs. | $1.50 |
| 13 | A02247-09-00 | OIL STRAINER ASSY | 1 | Pc. | $30.00 | |
| 14 | A03099-09-00 | FILTER BOLT | M8X20 | 1 | Pc. | #N/A |
| 15 | A00007-20-01 | C/S SCREW | M5X12 | 3 | Pcs. | $1.50 |
| 16 | A02238-09-00 | OIL PASSAGE SPRING | 1 | Pc. | $2.50 | |
| 17 | A02237-09-00 | ROTOR CAP | 1 | Pc. | $11.00 | |
| 18 | A00036-25-01 | COTTER PIN | 1 | Pc. | $1.50 | |
| 19 | A02236-09-00 | SPLINED NUT | M16 | 1 | Pc. | $4.00 |
| 20 | A00072-21-01 | DISHED WASHER | 16X27X2 | 1 | Pc. | $2.50 |
| 21 | A00222-13-00 | OIL STRAINER BODY GASKET | 1 | Pc. | $7.00 | |
| 22 | A02235-09-00 | OIL STRAINER BODY | 1 | Pc. | $13.00 | |
| CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03100-09-00 | COMPLETE CLUTCH ASSY | 1 | Assy. | $13.00 | |
| 2 | A03101-09-00 | CLUTCH PUSH ROD | 1 | Pc. | $2.00 | |
| 3 | A00061-19-01 | CASE FLANGE BOLT | M5X20 | 6 | Pcs. | $1.50 |
| 4 | A00069-28-00 | BEARING | 16003/P6 | 1 | Pc. | $5.00 |
| 5 | A03102-09-00 | CLUTCH RELEASE PLATE | 1 | Pc. | $18.00 | |
| 6 | A02236-09-00 | SPLINED NUT | M16 | 1 | Pc. | $4.00 |
| 7 | A03103-09-00 | CLUTCH SPRING | 6 | Pcs. | $2.00 | |
| 8 | A00072-21-01 | WASHER | 16X27X2 | 1 | Pc. | $2.50 |
| 9 | A03104-09-00 | PRESSURE PLATE | 1 | Pc. | $39.00 | |
| 10 | A03105-09-00 | FRICTION PLATE | 7 | Pcs. | $7.00 | |
| 11 | A03106-09-00 | STEEL PLATE | 6 | Pcs. | $4.00 | |
| 12 | A03107-09-00 | INNER CLUTCH HUB | 1 | Pc. | $59.00 | |
| 13 | A03110-09-00 | SPLINE WASHER | 20X37X2.6 | 1 | Pc. | $2.00 |
| 14 | A03108-09-00 | OUTER CLUTCH BASKET | 1 | Pc. | $104.00 | |
| 15 | A03109-09-00 | PRIMARY DRIVING GEAR | 21T | 1 | Pc. | $10.00 |
| LEFT CRANKCASE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03111-09-00 | STATOR W/ FLYWHEEL ASSY | 1 | Assy. | $150.00 | |
| 2 | A03112-09-00 | FLYWHEEL | 1 | Pc. | $89.00 | |
| 3 | A03113-09-00 | STATOR ASSY | 1 | Assy. | $77.00 | |
| 4 | A00003-19-01 | FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 7 | A00001-19-09 | PAN HEAD BOLT W/ LOCK WASHER+WASHER | M4X12 | 2 | Pcs. | $2.00 |
| 8 | A00424-19-08 | CASE FLANGE BOLT | M6X32 | 2 | Pcs. | $1.50 |
| 9 | A00056-27-00 | O-RING | 13.8X2.5 | 1 | Pc. | $2.50 |
| 10 | A03114-09-00 | INSPECTION PLUG | TIMING | 1 | Pc. | $8.00 |
| 11 | A03115-09-00 | STATOR COVER | 1 | Pc. | $83.00 | |
| 12 | A00057-27-00 | O-RING | 63X3 | 1 | Pc. | $2.50 |
| 13 | A03118-09-00 | STARTER MOTOR CAP | 1 | Pc. | $39.00 | |
| 14 | A00419-19-08 | CASE FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 15 | A00426-19-08 | CASE FLANGE BOLT | M6X40 | 4 | Pcs. | $1.50 |
| 16 | A00055-27-00 | O-RING | 27.4X2.4 | 1 | Pc. | $1.50 |
| 17 | A03116-09-00 | INSPECTION PLUG | CRANK | 1 | Pc. | $8.00 |
| 18 | A00012-19-03 | CASE FLANGE BOLT | M6X55 | 1 | Pc. | $1.50 |
| 19 | A00422-19-08 | CASE FLANGE BOLT | M6X28 | 2 | Pcs. | $1.50 |
| 20 | A03117-09-00 | COUNTERSHAFT SPROCKET COVER | 1 | Pc. | $45.00 | |
| 21 | A00314-13-00 | STARTOR COVER GASKET | 1 | Pc. | #N/A | |

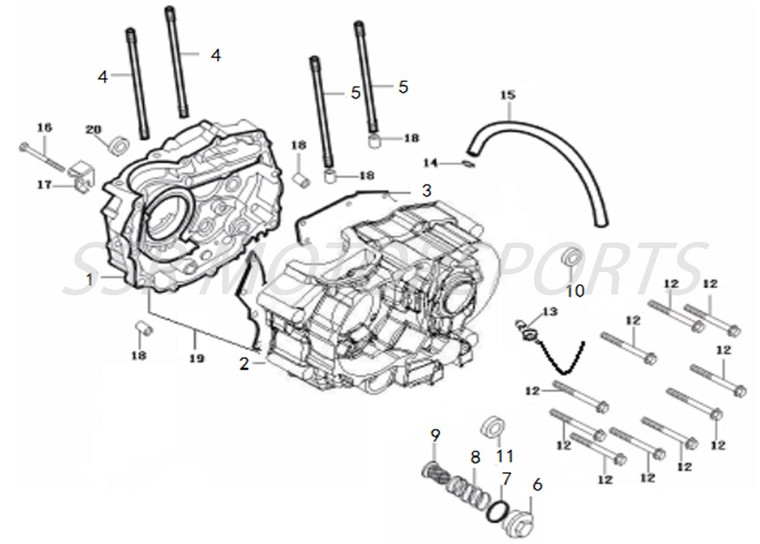

| CRANKCASE | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03119-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $124.00 | |
| 2 | A03120-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $131.00 | |
| 3 | A00315-13-00 | CENTER CASE GASKET | 1 | Pc. | $23.00 | |
| 4 | A00025-19-04 | STUD B | M8X228 | 2 | Pcs. | $4.00 |
| 5 | A00026-19-04 | STUD A | M8X241 | 2 | Pcs. | $4.00 |
| 6 | A03121-09-00 | OIL FILTER SCREEN CAP | 1 | Pc. | $7.00 | |
| 7 | A00052-27-00 | O-RING | 35X3 | 1 | Pc. | $2.50 |
| 8 | A02298-09-00 | SPRING | 1 | Pc. | $3.50 | |
| 9 | A00660-09-00 | OIL FILTER SCREEN | 1 | Pc. | $8.00 | |
| 10 | A00038-26-00 | OIL SEAL | 20X34X7 | 1 | Pc. | $4.00 |
| 11 | A00037-26-00 | OIL SEAL | 14X28X7 | 1 | Pc. | $4.00 |
| 12 | A00428-19-08 | CASE FLANGE BOLT | M6X50 | 10 | Pcs. | $1.50 |
| 13 | A03122-09-00 | NEUTRAL SWITCH | 1 | Pc. | $32.00 | |
| 14 | A00067-24-03 | WIRE HOSE CLAMP | 15 | 1 | Pc. | $2.50 |
| 15 | A03124-09-00 | CRANKCASE BREATHER HOSE | 11X15X315 | 1 | Pc. | $7.00 |
| 16 | A00440-19-08 | CASE FLANGE BOLT | M6X55 | 1 | Pc. | $1.50 |
| 17 | A03125-09-00 | CLUTCH CABLE CLAMP | 1 | Pc. | $2.50 | |
| 18 | A00002-23-00 | DOWEL PIN | 10X14 | 4 | Pcs. | $1.50 |
| 19 | A03123-09-00 | CRANKCASE ASSY | 1 | Assy. | $229.00 | |
| 20 | A00070-28-00 | BEARING | HK212810 | 1 | Pc. | $7.00 |
| CRANKSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03126-09-00 | PISTON RING SET | 1 | Set | $48.00 | |
| 2 | A03127-09-00 | PISTON PIN CIRCLIP | 2 | Pcs. | $1.50 | |
| 3 | A03128-09-00 | PISTON PIN | 1 | Pc. | $14.00 | |
| 4 | A03129-09-00 | PISTON | 1 | Pc. | $61.00 | |
| 5 | A03130-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $209.00 | |
| 6 | A03131-09-00 | CRANK PIN | 1 | Pc. | #N/A | |
| 7 | A00073-28-00 | NEEDLE BEARING | 30X38X17.8 | 1 | Pc. | #N/A |
| 8 | A03132-09-00 | CONNETING ROD | 1 | Pc. | #N/A | |
| 9 | A00071-28-00 | BEARING | TM-SC06B42 | 2 | Pcs. | $10.00 |
| 10 | A03133-09-00 | RIGHT CRANKSHAFT HALF | 1 | Pc. | #N/A | |
| 11 | A03134-09-00 | LEFT CRANKSHAFT HALF | 1 | Pc. | #N/A | |
| 12 | A03135-09-00 | WOODRUFF KEY | 25X14X4H4.5 | 1 | Pc. | $1.50 |
| 13 | A03136-09-00 | CRANKSHAFT TIMING GEAR | 1 | Pc. | #N/A | |
| 14 | A00088-19-01 | FLANGE BOLT | M10X35X1.25 | 1 | Pc. | $2.00 |
| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00435-17-00 | TRANSMISSION ASSY | 1 | Assy. | $167.00 | |
| 2 | A00293-21-06 | THRUST WASHER | 15X25X1 | 1 | Pc. | $2.00 |
| 3 | A00436-17-00 | 2ND DRIVING GEAR | 1 | Pc. | $21.00 | |
| 4 | A00437-17-00 | 5TH DRIVING GEAR | 1 | Pc. | $21.00 | |
| 5 | A00294-21-06 | SPLINED WASHER | 20X26X1.6 | 3 | Pcs. | $2.00 |
| 6 | A00294-21-01 | WASHER | 20 | 3 | Pcs. | $2.00 |
| 7 | A00438-17-00 | 4TH DRIVING GEAR | 1 | Pc. | $21.00 | |
| 8 | A00439-17-00 | 3RD DRIVING GEAR | 1 | Pc. | $21.00 | |
| 9 | A00440-17-00 | MAINSHAFT | 1 | Pc. | $39.00 | |
| 10 | A00295-21-01 | WASHER | 20X27X0.5 | 1 | Pc. | $2.00 |
| 11 | A00441-17-00 | KICK STARTER GEAR | 1 | Pc. | $18.00 | |
| 12 | A00442-17-00 | MAINSHAFT ASSY | 1 | Assy. | $96.00 | |
| 13 | A00443-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $89.00 | |
| 14 | A00003-21-06 | THRUST WASHER | 15X30X1 | 1 | Pc. | $2.00 |
| 15 | A00444-17-00 | STARTER IDLER GEAR | 1 | Pc. | $18.00 | |
| 16 | A00445-17-00 | STARTER IDLER GEAR BUSHING | 1 | Pc. | $2.00 | |
| 17 | A00296-21-06 | THRUST WASHER | 16X24X0.5 | 2 | Pcs. | $2.00 |
| 18 | A00446-17-00 | 1ST DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 19 | A00447-17-00 | 3RD DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 22 | A00448-17-00 | 4TH DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 23 | A00449-17-00 | COUNTERSHAFT | 1 | Pc. | $39.00 | |
| 24 | A00450-17-00 | BUSHING | 19.5X16.5X7.5 | 1 | Pc. | $2.00 |
| 25 | A00451-17-00 | 5TH DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 26 | A00452-17-00 | 2ND DRIVEN GEAR | 1 | Pc. | $21.00 | |
| 27 | A00267-21-01 | WASHER | 20X27X1 | 1 | Pc. | $2.00 |
| 28 | A00020-28-00 | BEARING | 6204 | 1 | Pc. | $30.00 |
| 29 | A00072-28-00 | BEARING | TM6202-RS/P5 | 1 | Pc. | $30.00 |
| 30 | A00067-28-00 | ROLLER BEARING | 6006 | 1 | Pc. | $11.00 |
| 31 | A00074-28-00 | BEARING | NK152312 | 1 | Pc. | $29.00 |
| 32 | A00453-17-00 | BUSHING | 23X20X12 | 2 | Pcs. | $2.00 |
| KICKSTARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03137-09-00 | COMPLETE KICK STARTER ASSY | 1 | Assy. | $51.00 | |
| 2 | A00016-24-07 | CIRCLIP | 16 | 1 | Pc. | $1.50 |
| 3 | A03138-09-00 | RATCHET GUIDE PLATE | 1 | Pc. | $7.00 | |
| 4 | A00294-21-01 | WASHER | 20 | 2 | Pcs. | $1.50 |
| 5 | A03139-09-00 | KICKSTARTER RATCHET SPRING | 1 | Pc. | $2.50 | |
| 6 | A03140-09-00 | KICK STARTER RATCHET | 1 | Pc. | $13.00 | |
| 8 | A00295-21-01 | THRUST WASHER | 20X27X0.5 | 1 | Pc. | $2.00 |
| 9 | A03141-09-00 | KICK STARTER GEAR | 1 | Pc. | $18.00 | |
| 10 | A03142-09-00 | KICK STARTER SHAFT | 1 | Pc. | $18.00 | |
| 11 | A03143-09-00 | KICK START SPRING SEAT | 1 | Pc. | $5.00 | |
| 12 | A03144-09-00 | KICK STARTER SPRING | 1 | Pc. | $3.50 | |
| 13 | A03145-09-00 | KICK STARTER SHAFT GUIDE | 1 | Pc. | $3.50 | |
| 14 | A00298-21-01 | WASHER | 16X24X1 | 1 | Pc. | $2.00 |
| 15 | A00299-21-01 | WASHER | 12X18X1 | 1 | Pc. | $2.00 |
| SHIFT DRUM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03146-09-00 | SHIFT DRUM ASSY | 1 | Assy. | $139.00 | |
| 2 | A03147-09-00 | SHIFT SHAFT ASSY | 1 | Assy. | $66.00 | |
| 3 | A00003-19-01 | FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 5 | A03148-09-00 | GEAR SHIFT CAM | 1 | Pc. | $18.00 | |
| 6 | A00002-25-03 | PIN | 4X10 | 1 | Pc. | $1.50 |
| 7 | A03149-09-00 | SHIFT DRUM | 1 | Pc. | $96.00 | |
| 8 | A03150-09-00 | SHIFT FORK SHAFT | 1 | Pc. | $11.00 | |
| 9 | A03151-09-00 | RIGHT SHIFT FORK | 1 | Pc. | $18.00 | |
| 10 | A03152-09-00 | MIDDLE SHIFT FORK | 1 | Pc. | $18.00 | |
| 11 | A03153-09-00 | LEFT SHIFT FORK | 1 | Pc. | $18.00 | |
| 12 | A00003-24-07 | CIRCLIP | 12 | 1 | Pc. | $2.00 |
| 13 | A03154-09-00 | GEAR SHIFT RETURN SPRING | 1 | Pc. | $2.00 | |
| 14 | A03155-09-00 | GEAR SHIFT PLATE | 1 | Pc. | $11.00 | |
| 15 | A03156-09-00 | GEAR SHIFT SHAFT | 1 | Pc. | $51.00 | |
| 16 | A03157-09-00 | GEAR SHIFT PLATE SPRING | 1 | PC | $4.00 | |
| 17 | A00270-21-06 | THRUST WASHER | 14X20X0.5 | 2 | Pcs. | $2.00 |
| 18 | A00005-24-07 | CIRCLIP | 14 | 1 | Pc. | $1.50 |
| 19 | A03158-09-00 | GEAR SHIFT STOPPER | 1 | Pc. | $7.00 | |
| 20 | A03159-09-00 | STOPPER SPRING | 1 | Pc. | $2.00 | |
| STARTER MOTOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A03160-09-00 | STARTER MOTOR | 11T | 1 | Pc. | $104.00 |
| 2 | A00071-21-01 | THRUST WASHER | 10.5X18X0.5 | 4 | Pcs. | $1.50 |
| 3 | A03161-09-00 | STARTER IDLER GEAR | 1 | Pc. | $24.00 | |
| 4 | A03162-09-00 | STARTER GEAR SHAFT | 1 | Pc. | $5.00 | |
| 5 | A03163-09-00 | STARTER GEAR | 1 | Pc. | $29.00 | |
| 6 | A00011-19-02 | ALLEN BOLT | M6X16 | 3 | Pcs. | $1.50 |
| 7 | A03164-09-00 | STARTER CLUTCH ASSY | 1 | Assy. | $44.00 | |
| 13 | A03165-09-00 | STARTER CLUTCH GEAR | 1 | Pc. | $38.00 | |
| 14 | A03166-09-00 | STARTER IDLER GEAR SHAFT | 10X51.5 | 1 | Pc. | $5.00 |
| 15 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
