Trailmaster Mid XRS (Gas)

Trailmaster Mid XRS (Gas)

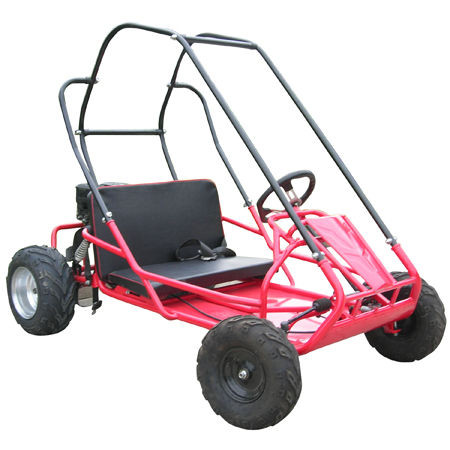

The Trailmaster Mid XRS is the perfect go-kart for beginners and families looking for safe, simple off-road fun. Built tough and designed for easy operation, it’s low maintenance, reliable, and ready to go — just fuel up and start riding!

Powered by a 196cc 4-stroke, 6.3HP engine, the Mid XRS reaches speeds up to 25 MPH and can climb slopes up to 12 degrees. Its live axle 2-wheel drive system and full front and rear suspension give it excellent traction and control over rough terrain. With a durable tubular steel frame and compact design, it’s easy to maneuver through tight trails while keeping the rider protected from brush and debris.

Specifications

• Engine Type: 4-stroke, single cylinder, air-cooled
• Displacement: 200cc
• Max Power: 6.3 HP @ 3600 RPM
• Max Torque: 9.6 lb-ft @ 2500 RPM
• Bore x Stroke: 2.6 x 2.1 inches
• Top Speed: 25 mph
• Climbing Ability: 12 degrees
• Ignition: C.D.I
• Starting System: Manual pull start
• Battery: 12V 9Ah (optional with electric start)
• Carburetor Brand: JF (RX)
• Engine Oil: SAE 15W-40
• Clutch: Automatic CVT
• Drive System: Chain / Dual-wheel drive
• Suspension (F/R): Double oil damped shock
• Brakes (Rear): Hydraulic disc brake
• Tires (F/R): 145/70-6 / 16x6-8
• Fuel Capacity: 1 gallon
• Weight (G.W./N.W.): 386 / 330 lbs
• Max Load: 400 lbs
• Wheelbase: 48.4 inches
• Dimensions (L x W x H): 67 x 43.3 x 51.2 inches
• Seat Height: 10.2 inches
• Ground Clearance: 2.8 inches
• Pedal to Seat Back Distance: 31.5 to 34 inches

Key Features

• Reliable 6.3HP 4-stroke OHV engine
• Rack-and-pinion steering for smooth handling
• Two-wheel drive with live axle for solid traction
• Front and rear suspension for a comfortable ride
• Hydraulic rear disc brake for strong stopping power
• Adjustable pedals to fit different drivers
• Durable steel frame and protective brush guard
• Speed governor for parental control
• Safety seat belt and enclosed bottom for added safety
• Available in Pink, Red, Blue, and Black

The Trailmaster Mid XRS is built for young riders (recommended for ages 7–12) who are ready to explore the trails. It’s dependable, fun, and designed with safety in mind — the perfect go-kart for family adventure and off-road excitement!

Specifications subject to change without notice. © BV Powersports, LLC
