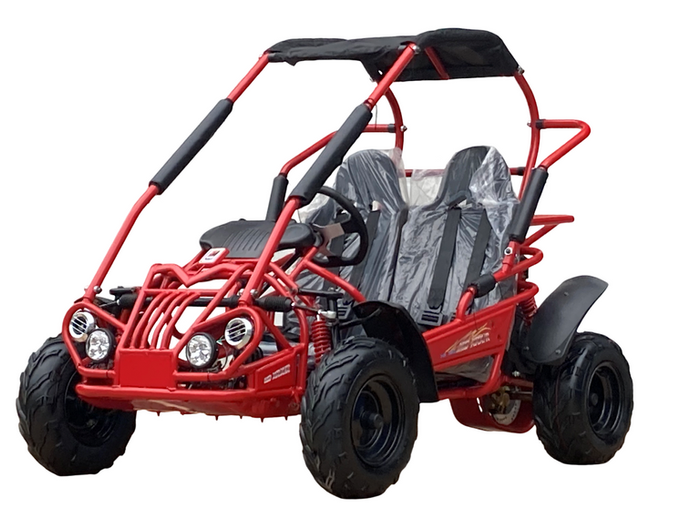

Trailmaster Mid XRX/R+ (Gas)

Trailmaster Mid XRX/R+ (Gas)

The Trailmaster Mid XRX/R+ is one of the best-selling youth go-karts in the Trailmaster lineup. This upgraded “+” version features a wider frame, taller roll cage, extra legroom, and larger tires for improved comfort and control. Built tough and proven reliable, the Mid XRX/R+ is perfect for riders aged 7 to 11 years who want real off-road excitement.

Powered by a 212cc 7HP 4-stroke engine and equipped with electric start and pull-start backup, this go-kart is easy to drive and maintain. The R+ version includes a built-in reverse gear for added maneuverability — great for beginners learning control.

Specifications

• Engine Type: 4-stroke, single cylinder, air-cooled
• Displacement: 212cc
• Max Power: 7 HP @ 3600 RPM
• Max Torque: 12.5 N·m @ 2500 RPM
• Bore x Stroke: 70 x 55 mm
• Max Speed: 31 mph (adjustable via governor)
• Climbing Ability: 12 degrees
• Ignition: CDI
• Starting System: Electric start / pull backup
• Battery: 12V 9Ah
• Carburetor Brand: JF (RX)
• Engine Oil: SG15W-40
• Clutch: Automatic CVT with reverse
• Drive System: Chain / Dual-wheel drive
• Suspension (F/R): Double A-arm / Double Oil Damped Shock
• Brakes (F/R): None / Hydraulic Disc
• Tires (F/R): 16x6-8 / 16x7-8
• Fuel Capacity: 1 gallon
• Weight (G.W./N.W.): 386 / 330 lbs
• Max Load: 400 lbs
• Wheelbase: 48.4 inches
• Dimensions (L x W x H): 67 x 43.3 x 51.2 inches
• Seat Height: 10.2 inches
• Ground Clearance: 2.8 inches
• Pedal to Seat Distance: 34–39 inches (adjustable)

Key Features

• Durable 212cc 7HP 4-stroke engine
• Automatic CVT transmission with reverse (R+)
• Electric start with pull-start backup
• LED headlights for visibility and safety
• Remote start and kill switch for parental control
• Adjustable seat and pedals
• Five-point safety harness
• Speed governor for learning control
• Live axle with dual-wheel drive
• Double A-arm front suspension and hydraulic rear disc brake
• Wider frame and taller roll cage for extra comfort
• Comes nearly pre-assembled for easy setup
• Available colors: Red, Blue, Black, Green, and Pink

The Trailmaster Mid XRX/R+ is designed to deliver safe, reliable fun for the entire family. Whether cruising around the yard or tackling trails, this kart’s combination of power, comfort, and control makes it one of the most trusted mid-size go-karts in the U.S.

Specifications subject to change without notice. © BV Powersports, LLC
