SSR SR125RB Parts Schematics (2025)

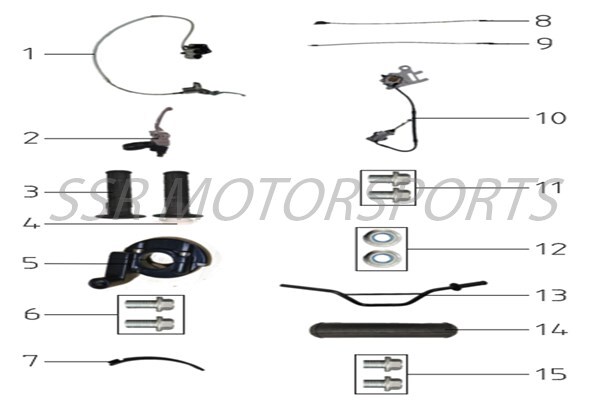

| HANDLEBARS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00768-04-00 | FRONT BRAKE ASSY | L=1130 | 1 | Assy. | $98.00 |
| 1-1 | A00638-05-00 | FRONT BRAKE LEVER | FOLDING | 1 | Pc. | #N/A |
| 2 | A00617-05-00 | CLUTCH PERCH ASSY | 1 | Assy. | $26.00 | |
| 2-1 | A00639-05-00 | CLUTCH LEVER | FOLDING | 1 | Pc. | #N/A |
| 3 | A00347-05-00 | LEFT HANDLEBAR GRIP | BLACK | 1 | Pc. | $7.00 |
| 4 | A00397-05-00 | THROTTLE GRIP W/ TUBE | BLACK | 1 | Pc. | $8.00 |
| 5 | A00311-05-00 | THROTTLE HOUSING | BLACK | 1 | Pc. | $18.00 |
| 6 | A00012-19-01 | FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 7 | A00622-05-00 | RUBBER CABLE STRAP | 2 | Pcs. | $2.00 | |
| 8 | A00618-05-00 | CLUTCH CABLE | 850 70 | 1 | Pc. | $18.00 |
| 9 | A00619-05-00 | THROTTLE CABLE | 800 105 | 1 | Pc. | $18.00 |
| 10 | A00769-04-00 | REAR BRAKE ASSY | L=520 | 1 | Assy. | $98.00 |
| 11 | A00003-19-01 | FLANGE BOLT | M6X25 | 1 | Pc. | $1.50 |
| 12 | A00005-22-04 | FLANGE LOCKNUT | M6 | 3 | Pcs. | $1.50 |
| 13 | A00623-05-00 | HANDLEBAR | 735X165 | 1 | Pc. | $32.00 |
| 14 | A00624-05-00 | HANDLEBAR PAD | 15X48XL220 | 1 | Pc. | $8.00 |
| 15 | A00024-19-01 | FLANGE BOLT | M6X22 | 2 | Pcs. | $1.50 |
| FRONT BRAKE SYSTEM | ||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | 1 | Assy. | #N/A | |||
| 2 | 1 | Assy. | #N/A | |||
| 3 | 1 | Pc. | #N/A | |||
| 4 | 1 | Set | #N/A | |||
| 5 | 2 | Pcs. | #N/A | |||
| 6 | 1 | Pc. | #N/A | |||
| 7 | 1 | Pc. | #N/A | |||
| 8 | 1 | Assy. | #N/A | |||
| 9 | 1 | Pc. | #N/A | |||
| 10 | 3 | Pcs. | #N/A | |||
| 11 | 2 | Pcs. | #N/A | |||
| 12 | 1 | Pc. | #N/A | |||
| 13 | 1 | Pc. | #N/A | |||
| REAR BRAKE SYSTEM | ||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | Assy. | #N/A | ||||
| 2 | Set | #N/A | ||||
| 3 | Pc. | #N/A | ||||
| 4 | Pc. | #N/A | ||||
| 5 | Pc. | #N/A | ||||
| 6 | Pcs. | #N/A | ||||
| 7 | Pcs. | #N/A | ||||
| 8 | Pc. | #N/A | ||||
| 9 | Assy. | #N/A | ||||
| 10 | Assy. | #N/A | ||||
| 11 | Pc. | #N/A | ||||
| 12 | Pc. | #N/A | ||||
| 13 | Pc. | #N/A | ||||
| 14 | Pc. | #N/A | ||||
| 15 | Pcs. | #N/A | ||||
| 16 | Pcs. | #N/A | ||||
| 17 | Pcs. | #N/A | ||||

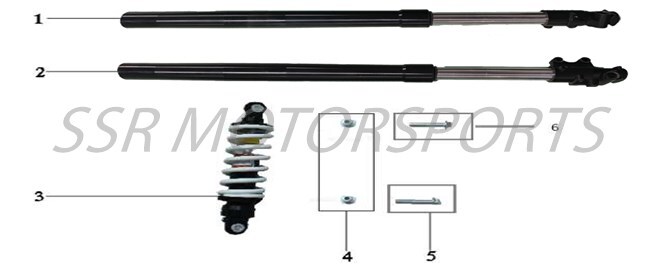

| FRONT & REAR SUSPENSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00754-16-00 | LEFT FRONT FORK ASSY | L=770 | 1 | Assy. | $115.00 |
| 2 | A00755-16-00 | RIGHT FRONT FORK ASSY | L=770 | 1 | Assy. | $115.00 |
| 3 | A00756-16-00 | REAR SHOCK ABSORBER | SX Φ11 L=280 Φ10孔 800LBS | 1 | Assy. | $103.00 |
| 4 | A00004-22-34 | FLANGE LOCKNUT | M10X1.25 | 2 | Pcs. | $2.00 |
| 5 | A00086-19-01 | FLANGE BOLT | M10X55X1.25 | 1 | Pc. | $1.50 |
| 6 | A00053-19-01 | FLANGE BOLT | M8X50 | 1 | Pc. | $2.00 |
| 7 | A00757-16-00 | FORK+DUST SEAL | 2 | Set | #N/A | |

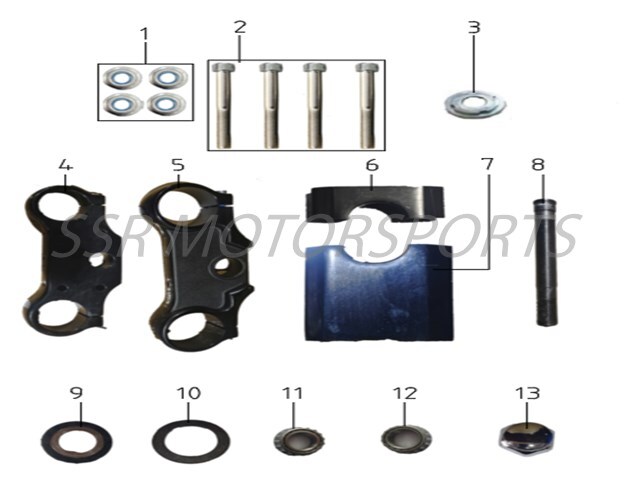

| TRIPLE CLAMPS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00001-22-04 | FLANGE LOCKNUT | M8 | 2 | Pcs. | $1.50 |
| 2 | A00417-19-02 | ALLEN BOLT | M8X105 12.9 | 4 | Pcs. | $2.50 |
| 3 | A00166-15-00 | STEERING STEM ADJUSTMENT NUT | M22X1 | 1 | Pc. | $6.00 |
| 4 | A00625-05-00 | UPPER TRIPLE CLAMP | 1 | Pc. | $59.00 | |
| 5 | A00626-05-00 | LOWER TRIPLE CLAMP | 1 | Pc. | $59.00 | |
| 6 | A00627-05-00 | UPPER HANDLEBAR CLAMP | 2 | Pcs. | $7.00 | |
| 7 | A00628-05-00 | LOWER HANDLEBAR CLAMP | 2 | Pcs. | $11.00 | |
| 8 | A00020-19-04 | STUD | L=248 | 1 | Pc. | $18.00 |
| 9 | A00758-16-00 | DUST SEAL | 24/45 | 1 | Pc. | $4.00 |
| 10 | A00047-21-01 | WASHER | 22X34X1 | 1 | Pc. | $1.50 |
| 11 | A00182-15-00 | UPPER STEERING STEM BEARING | 320/22 22X44XH15 | 1 | Pc. | $14.00 |
| 12 | A00183-15-00 | LOWER STEERING STEM BEARING | 320/23.5 23.5X44XH15 | 1 | Pc. | $14.00 |
| 13 | A00166-15-00 | STEERING STEM NUT | M22X1 | 1 | Pc. | $6.00 |

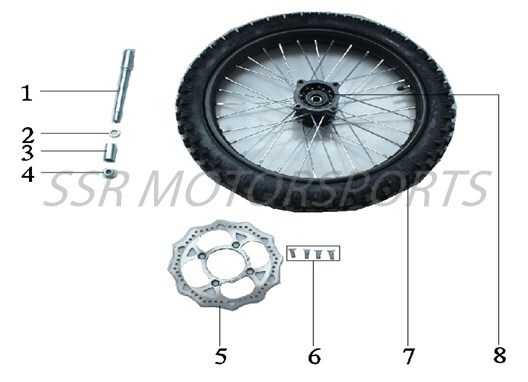

| FRONT WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00657-18-00 | FRONT WHEEL AXLE | M15X225X14X1.5 | 1 | Pc. | $30.00 |
| 2 | A00658-18-00 | FRONT RIGHT WHEEL SPACER | M15X22XL20 | 1 | Pc. | $6.00 |
| 3 | A00227-18-00 | FRONT LEFT WHEEL SPACER | M15X22XL28 | 1 | Pc. | $4.00 |
| 4 | A00003-22-01 | FLANGE NUT | M14X1.5 | 1 | Pc. | $2.50 |
| 5 | A00770-04-00 | FRONT BRAKE ROTOR | 220MM | 1 | Pc. | $27.00 |
| 6 | A00034-19-10 | ROTOR BOLT | M8X16 | 4 | Pcs. | $1.50 |
| 7 | A00537-18-00 | FRONT TIRE/TUBE/RIM STRIP | 70/100-17 | 1 | Assy. | $56.00 |
| 8 | A00541-18-00 | FRONT WHEEL ASSY | 1.6-17 | 1 | Assy. | $103.00 |

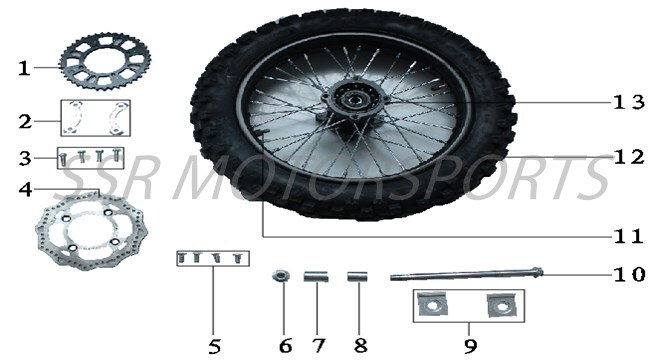

| REAR WHEEL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00244-07-00 | REAR SPROCKET | 41T | 1 | Pc. | $39.00 |
| 2 | A00296-07-00 | SPROCKET BOLT RETAINER PLATE | 2 | Pcs. | $8.00 | |
| 3 | A00007-19-11 | FLANGE BOLT | M8X25 | 4 | Pcs. | $1.50 |
| 4 | A00771-04-00 | REAR BRAKE ROTOR | Φ76X190XH3.5 | 1 | Pc. | $36.00 |
| 5 | A00034-19-10 | ROTOR BOLT | M8X16 | 4 | Pcs. | $1.50 |
| 6 | A00003-22-01 | FLANGE NUT | M14X1.5 | 1 | Pc. | $2.50 |
| 7 | A00227-18-00 | REAR LEFT WHEEL SPACER | M15X22XL28 | 1 | Pc. | $4.00 |
| 8 | A00659-18-00 | REAR RIGHT WHEEL SPACER | M15X22XL31 | 1 | Pc. | $6.00 |
| 9 | A00660-18-00 | CHAIN ADJUSTER BRACKET | 2 | Pcs. | $7.00 | |
| 10 | A00299-18-00 | REAR WHEEL AXLE | M15X220X14X1.5 10.9 | 1 | Pc. | $33.00 |
| 11 | A00352-18-00 | RIM LOCK | 1.85 | 1 | Pc. | $8.00 |
| 12 | A00545-18-00 | REAR TIRE/TUBE/RIM STRIP | 90/100-14 | 1 | Assy. | $56.00 |
| 13 | A00549-18-00 | REAR WHEEL ASSY | 1.85-14 | 1 | Assy. | $103.00 |
| FRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00656-11-00 | FRAME | RED | 1 | Pc. | $185.00 |
| 2 | A00002-19-01 | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 3 | A00635-05-00 | BRAKE PEDAL STOPPER | 6.5XH6.5+10.5XH6.5 | 1 | Pc. | $3.50 |
| 4 | A00044-19-01 | FLANGE BOLT | M8X105 | 1 | Pc. | $2.50 |
| 5 | A00001-22-04 | FLANGE LOCKNUT | M8 | 2 | Pcs. | $1.50 |
| 6 | A00043-19-01 | FLANGE BOLT | M8X115 | 2 | Pcs. | $2.50 |
| 7 | A00013-21-01 | WASHER | 8X16X1.5 | 4 | Pcs. | $1.50 |
| 8 | A00001-21-02 | LOCK WASHER | 8X13X2 | 4 | Pcs. | $1.50 |
| 9 | A00015-19-01 | FLANGE BOLT | M8X20 | 4 | Pcs. | $1.50 |
| 10 | A00644-11-00 | UPPER ENGINE MOUNTING BRACKETS | 1 | Set | $10.00 | |
| SWINGARM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00014-19-01 | FLANGE BOLT | M8X40 S12 | 1 | Pc. | $2.00 |
| 2 | A00003-22-03 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 3 | A00007-28-00 | BALL BEARING | M8X22XH7 | 2 | Pcs. | $4.00 |
| 4 | A00645-11-00 | CHAIN ROLLER | BLACK | 1 | Pc. | $8.00 |
| 5 | A00646-11-00 | LOWER CHAIN GUIDE | 1 | Pc. | $10.00 | |
| 6 | A00414-19-01 | FLANGE BOLT | M8X55 | 1 | Pc. | $3.50 |
| 7 | A00647-11-00 | SPACER | M8X10XL3.5 | 1 | Pc. | $5.00 |
| 8 | A00003-22-03 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 9 | A00437-07-00 | DRIVE CHAIN | 428-116L | 1 | Pc. | $59.00 |
| 10 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 11 | A00438-07-00 | REAR BRAKE HOSE HOLDER | BLACK PLASTIC | 1 | Pc. | $4.00 |
| 12 | A00008-19-03 | FLANGE BOLT | M6X12 | 2 | Pcs. | $1.50 |
| 13 | A00649-11-00 | FRONT CHAIN SLIDER | 1 | Pc. | $18.00 | |
| 14 | A00001-22-03 | FLANGE LOCKNUT | M12X1.25 | 1 | Pc. | $2.00 |
| 15 | A00003-28-01 | BEARING | 6001RS 12X28XH8 | 2 | Pcs. | $11.00 |
| 16 | A00650-11-00 | SWINGARM AXLE | M12X220XM12X1.25MM | 1 | Pc. | $10.00 |
| 17 | A00648-11-00 | SPACER | M15X20XL164 | 1 | Pc. | $7.00 |
| 18 | A00651-11-00 | SWINGARM | L440 | 1 | Pc. | $103.00 |
| REAR SUBFRAME | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00652-11-00 | SUBFRAME ASSY | 1 | Pc. | $63.00 | |
| 2 | A00653-11-00 | GREASE FITTING | M6X14 | 1 | Pc. | $5.00 |
| 3 | A00005-24-01 | ZIP TIE | 8X300 | 1 | Pc. | $1.50 |
| 4 | A00654-11-00 | GREASE CAP | 1 | Pc. | $1.50 | |
| 5 | A00008-24-01 | ZIP TIE | 4X250 | 1 | Pc. | $2.00 |
| 6 | RUBBER LOGO LABEL | 2 | Pcs. | $2.00 | ||

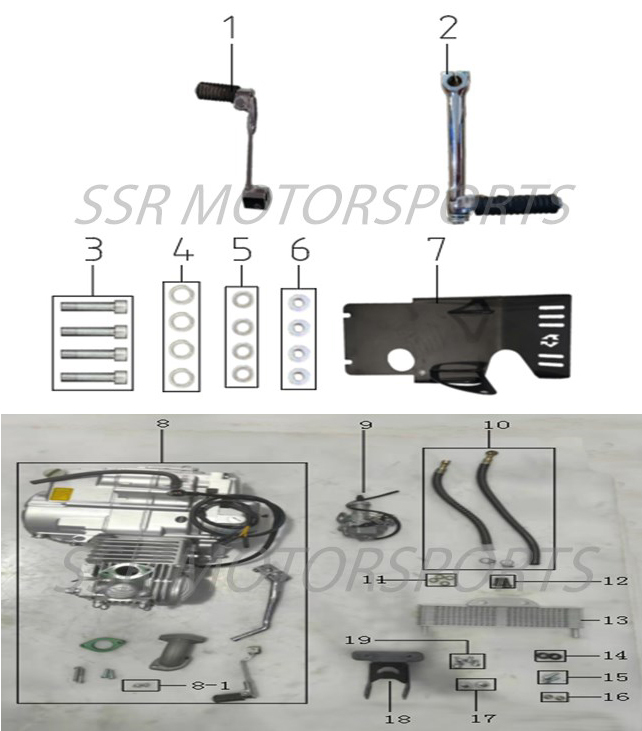

| ENGINE ASSY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | SHIFTER LEVER | 1 | Pc. | $24.00 | ||
| 2 | KICKSTARTER LEVER | 1 | Pc. | $23.00 | ||
| 3 | A00014-19-01 | FLANGE BOLT | M8X40 | 4 | Pcs. | $2.00 |
| 4 | A00005-21-02 | LOCK WASHER | M8X13X1.5 | 4 | Pcs. | $1.50 |
| 5 | A00013-21-01 | WASHER | M8X16X1.5 | 4 | Pcs. | $1.50 |
| 6 | A00657-11-00 | SPACER | M8X20XL16 | 4 | Pcs. | $2.50 |
| 7 | A00655-11-00 | SKID PLATE | V1S STEEL | 1 | Pc. | $42.00 |
| 8 | A03055-09-00 | ENGINE ASSY | 125CC | 1 | Assy. | $337.00 |
| 8-1 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 9 | A00469-12-00 | CARBURETOR ASSY | 83/32 | 1 | Assy. | $76.00 |
| 10 | A00113-06-00 | OIL COOLER HOSE SET | L=270 | 1 | Set | $18.00 |
| 11 | A00549-04-00 | SEALING WASHER | M10 | 2 | Pcs. | $1.50 |
| 12 | A00109-06-00 | BANJO BOLT | M10X25 | 2 | Pcs. | $2.00 |
| 13 | A00110-06-00 | OIL COOLER | 1 | Pc. | $45.00 | |
| 14 | A00002-21-07 | RUBBER WASHER | 10X18XH7 | 2 | Pcs. | $1.50 |
| 15 | A00006-19-01 | FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 16 | A00005-22-04 | FLANGE LOCKNUT | M6 | 2 | Pcs. | $1.50 |
| 17 | A00112-06-00 | COLLAR | 7X9XH7.5+20XT2 | 2 | Pcs. | $1.50 |
| 18 | A00111-06-00 | OIL COOLER BRACKET | 1 | Pc. | $5.00 | |
| 19 | A00008-19-03 | FLANGE BOLT | M6X12 | 4 | Pcs. | $1.50 |

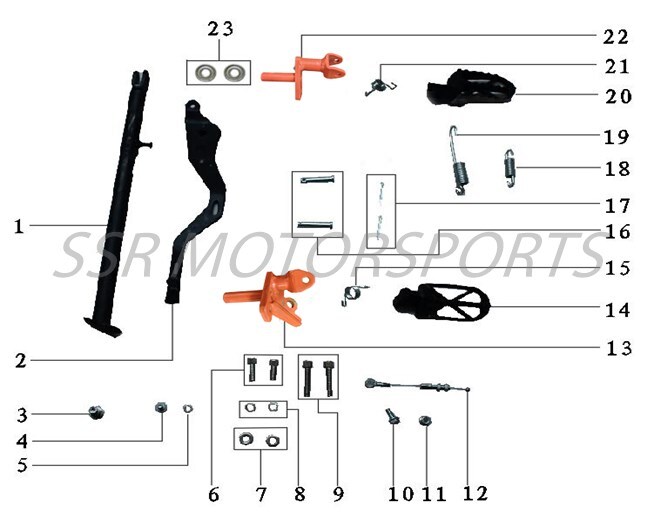

| REAR BRAKE PEDAL, SIDE STAND AND FOOTPEGS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00661-11-00 | SIDE STAND | L=360 | 1 | Pc. | $23.00 |
| 2 | A00636-05-00 | REAR BRAKE PEDAL | 1 | Pc. | $27.00 | |
| 3 | A00098-19-01 | FLANGE BOLT | M10X25 S17 | 1 | Pc. | $1.50 |
| 4 | A00008-19-03 | FLANGE BOLT | M6X12 | 1 | Pc. | $1.50 |
| 5 | A00002-21-02 | LOCK WASHER | M6 | 1 | Pc. | $1.50 |
| 6 | A00015-19-01 | FLANGE BOLT | M8X20 | 2 | Pcs. | $1.50 |
| 7 | A00013-21-01 | WASHER | M8X16X1.5 | 2 | Pcs. | $1.50 |
| 8 | A00001-21-02 | LOCK WASHER | M8X13X2 | 2 | Pcs. | $1.50 |
| 9 | A00014-19-01 | FLANGE BOLT | M8X40 | 2 | Pcs. | $2.00 |
| 10 | A00002-19-01 | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 11 | A00005-22-04 | FLANGE LOCKNUT | M6 | 1 | Pc. | $1.50 |
| 12 | A00772-04-00 | REAR BRAKE PEDAL CABLE | L=115 M6X25 | 2 | Pcs. | $7.00 |
| 13 | A00658-11-00 | LEFT FOOTPEG BRACKET/SIDE STAND MOUNT | 1 | Pc. | $11.00 | |
| 14 | A00629-05-00 | LEFT FOOTPEG | 1 | Pc. | $18.00 | |
| 15 | A00630-05-00 | RIGHT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 16 | A00620-05-00 | FOOTPEG PIVOT PIN | 2 | Pcs. | $1.50 | |
| 17 | A00004-25-01 | COTTER PIN | 2.5X30 | 2 | Pcs. | $1.50 |
| 18 | A00633-05-00 | REAR BRAKE PEDAL RETURN SPRING | 1 | Pc. | $2.00 | |
| 19 | A00634-05-00 | SIDE STAND SPRING | L=110 | 1 | Pc. | $2.50 |
| 20 | A00631-05-00 | RIGHT FOOTPEG | 1 | Pc. | $18.00 | |
| 21 | A00632-05-00 | LEFT FOOTPEG SPRING | 1 | Pc. | $1.50 | |
| 22 | A00659-11-00 | RIGHT FOOTPEG BRACKET | 1 | Pc. | $11.00 | |
| 23 | A00098-28-00 | BRAKE PEDAL BEARING | 6900Z | 2 | Pcs. | $5.00 |

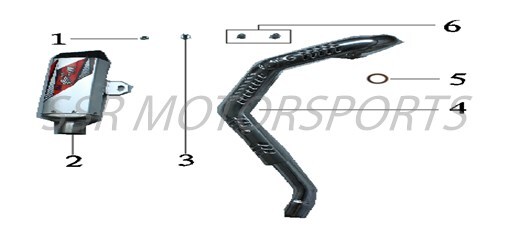

| MUFFLER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00003-22-03 | FLANGE LOCKNUT | M8 | 1 | Pc. | $1.50 |
| 2 | A00144-10-00 | MUFFLER | 1 | Pc. | $95.00 | |
| 3 | A00015-19-01 | FLANGE BOLT | M8X20 | 1 | Pc. | $1.50 |
| 4 | A00145-10-00 | EXHAUST HEADER | 1 | Pc. | $58.00 | |
| 4-1 | A00146-10-00 | HEADER HEAT SHIELD | BLACK | 1 | Pc. | #N/A |
| 5 | A00115-13-00 | EXHAUST GASKET | 32MM | 1 | Pc. | $6.00 |
| 6 | A00093-22-03 | FLANGE NUT | M6 | 2 | Pcs. | $1.50 |
| 7 | A00001-19-19 | BUTTON HEAD ALLEN BOLT | M6X8 SS | 2 | Pcs. | $1.50 |
| 8 | A00254-21-01 | LOCK WASHER | M6 | 2 | Pcs. | $1.50 |

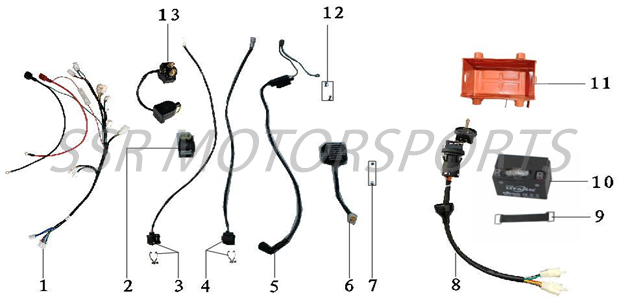

| WIRE HARNESS & ELECTRICAL | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00673-08-00 | WIRE HARNESS | 1 | Pc. | $44.00 | |
| 2 | A00674-08-00 | CDI | 1 | Pc. | $27.00 | |
| 3 | A00675-08-00 | START SWITCH | L=750 | 1 | Pc. | $18.00 |
| 4 | A00676-08-00 | KILL SWITCH | L=750 | 1 | Pc. | $11.00 |
| 5 | A00677-08-00 | IGNITION COIL | L=600 | 1 | Pc. | $30.00 |
| 6 | A00678-08-00 | REGULATOR/RECTIFIER | 1 | Pc. | $30.00 | |
| 7 | A00008-19-03 | FLANGE BOLT | M6X12 | 4 | Pcs. | $1.50 |
| 8 | A00679-08-00 | IGNITION SWITCH | W/ 2 KEYS L=280 | 1 | Pc. | $39.00 |
| 9 | A00680-08-00 | BATTERY STRAP | 110X20 | 1 | Pc. | $5.00 |
| 10 | YTX4A-BS | BATTERY | 6MF4L 12V4AH | 1 | Pc. | $48.00 |
| 11 | A00681-08-00 | BATTERY BOX | 1 | Pc. | $27.00 | |
| 12 | A00682-08-00 | RELAY | KB60 | 1 | Pc. | $33.00 |

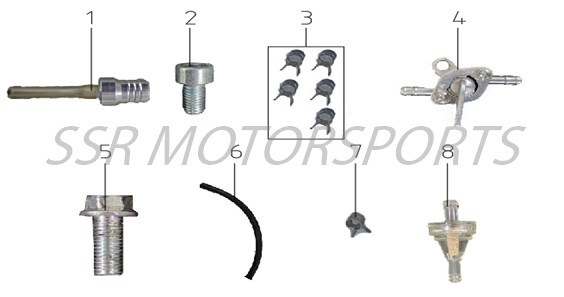

| FUEL TANK PARTS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00332-12-00 | FUEL TANK CAP VENT | 1 | Pc. | $6.00 | |
| 2 | A00006-19-02 | ALLEN BOLT | M6X16 | 1 | Pc. | $1.50 |
| 3 | A00366-14-00 | SPRING HOSE CLAMP | M8 | 5 | Pcs. | $1.50 |
| 4 | A00338-12-00 | FUEL PETCOCK | 1 | Pc. | $23.00 | |
| 5 | FLANGE BOLT | M6 | 1 | Pc. | $1.50 | |
| 6 | A00735-09-00 | FUEL HOSE | 4.5X8.5 EPA | 1 | Pc. | $23.00 |
| 7 | A00372-14-00 | SPRING HOSE CLAMP | M10 | 1 | Pc. | $1.50 |
| 8 | A00254-12-00 | FUEL FILTER | 1 | Pc. | $4.00 | |

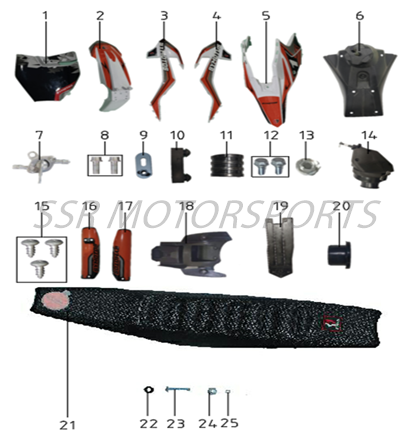

| BODY | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01118-02-01 | FRONT NUMBER PLATE | WHITE | 1 | Pc. | $14.00 |
| 2 | A01119-02-01 | FRONT FENDER | WHITE | 1 | Pc. | $18.00 |
| 3 | A01120-02-01 | LEFT RADIATOR SHROUD | WHITE | 1 | Pc. | $18.00 |
| 4 | A01121-02-01 | RIGHT RADIATOR SHROUD | WHITE | 1 | Pc. | $18.00 |
| 5 | A01122-02-01 | REAR FENDER | WHITE | 1 | Pc. | $18.00 |
| 6 | A00471-12-00 | FUEL TANK | 1 | Pc. | $56.00 | |
| 6-1 | A00472-12-00 | FUEL TANK CAP | 1 | Pc. | $14.00 | |
| 7 | A00338-12-00 | FUEL PETCOCK | 1 | Pc. | $23.00 | |
| 8 | A00461-19-01 | FLANGE BOLT | M6X8 | 8 | Pcs. | $1.50 |
| 9 | A01123-02-00 | FRONT NUMBER PLATE BRACKET | 1 | Pc. | $10.00 | |
| 10 | A00473-12-00 | FUEL TANK DAMPER RECTANGULAR | 1 | Pc. | $2.50 | |
| 11 | A00474-12-00 | FUEL TANK DAMPER SEMICIRCULAR | 1 | Pc. | $2.50 | |
| 12 | A00002-19-01 | FLANGE BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 13 | A00093-22-03 | FLANGE NUT | M6 | 1 | Pc. | $1.50 |
| 14 | A00370-14-00 | AIRBOX | 1 | Pc. | $14.00 | |
| 14-1 | A00371-14-00 | AIR FILTER ELEMENT | #N/A | |||
| 15 | A00002-20-03 | ST SCREW | ST4.2X12 | 3 | Pcs. | $1.50 |
| 16 | A01112-02-02 | LEFT FRONT FORK GUARD | BLACK | 1 | Pc. | $14.00 |
| 17 | A01113-02-02 | RIGHT FRONT FORK GUARD | BLACK | 1 | Pc. | $14.00 |
| 18 | A01116-02-02 | REAR INNER FENDER | BLACK | 1 | Pc. | $13.00 |
| 19 | A01117-02-02 | MUDFLAP | BLACK | 1 | Pc. | $5.00 |
| 20 | RUBBER WELL NUT | 1 | Pc. | $2.00 | ||
| 21 | A01111-02-00 | SEAT | 1 | Pc. | $63.00 | |
| 22 | A00002-21-07 | RUBBER WASHER | M10X18XH7 | 1 | Pc. | $1.50 |
| 23 | A00002-19-19 | BUTTON HEAD ALLEN BOLT | M6X40 | 1 | Pc. | $1.50 |
| 24 | A00011-21-01 | WASHER | M6X18X1.5 | 1 | Pc. | $1.50 |
| 25 | A00001-19-19 | BUTTON HEAD ALLEN BOLT | M6X8 SS | 8 | Pcs. | $1.50 |
| GRAPHICS | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A01125-02-00 | GRAPHICS KIT | W/ HANDLEBAR PAD COVER | Kit | $45.00 | |
