(SSR SR300) Full Engine Parts Schematics
Looking for a comprehensive engine parts solution? Look no further than the SSR SR300 Full Engine Parts Schematics. With this detailed guide, you'll have all the information you need to keep your engine in top-notch condition. Our expertly designed schematics cover all the essential components, from the crankshaft to the fuel injectors. Whether you're a professional mechanic or a passionate DIY enthusiast, these schematics will save you time and ensure accuracy during engine repairs and maintenance. Forget about human error or spending hours researching different engine parts - our SSR SR300 Full Engine Parts Schematics have got you covered. Achieve optimal performance, maximize efficiency, and extend the lifespan of your engine with this must-have resource. Order your SSR SR300 Full Engine Parts Schematics today and experience the convenience of having a comprehensive guide at your fingertips!
| 2020-2022 SR300S | ||||||
| CYLINDER HEAD | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00264-09-00 | TAPPET COVER | 2 | Pcs. | $13.00 | |
| 2 | A00084-27-00 | O-RING | 2 | Pcs. | $8.00 | |
| 3 | A00006-19-01 | FLANGE BOLT | M6X20 | 4 | Pcs. | $1.50 |
| 4 | A00012-19-01 | FLANGE BOLT | M6X35 | 2 | Pcs. | $1.50 |
| 5 | A00001-19-01 | FLANGE BOLT | M6X30 | 4 | Pcs. | $1.50 |
| 6 | A00036-19-01 | FLANGE BOLT | M6X60 | 2 | Pcs. | $2.00 |
| 7 | A00038-21-01 | COPPER WASHER | 6.5X1.5X12 | 2 | Pcs. | $1.50 |
| 9 | A00024-27-00 | O-RING | 11.8X2.6 | 2 | Pcs. | $2.00 |
| 10 | A00267-09-00 | PLUG BOLT | M14 | 2 | Pcs. | $4.00 |
| 11 | A00268-09-00 | CYLINDER HEAD ASSY | HEAD W/ VALVES | 1 | Assy. | $396.00 |
| 12 | CPR8EA-9 | SPARK PLUG | CPR8EA-9 | 1 | Pc. | $11.00 |
| 13 | A00027-27-00 | O-RING | 38X3 | 1 | Pc. | $6.00 |
| 14 | A00323-14-00 | INTAKE MANIFOLD FLANGE | 1 | Pc. | $13.00 | |
| 15 | A00001-19-03 | BOLT | M6X16 | 2 | Pcs. | $1.50 |
| 16 | A00332-14-00 | INTAKE MANIFOLD | BLUE FOR PWK | 1 | Pc. | $33.00 |
| 16 | A00341-14-00 | INTAKE MANIFOLD | GEN. 2 BLACK FOR FCR | 1 | Pc. | $33.00 |
| 18 | A00003-19-03 | FLANGE BOLT | M6X25 | 1 | Pc. | $1.50 |
| 19 | A00273-09-00 | INTAKE MANIFOLD CLAMP | 40-55 | 2 | Pcs. | $13.00 |
| 20 | A00274-09-00 | EXHAUST GASKET | 1 | Pc. | $8.00 | |
| 21 | A00015-19-04 | STUD | M8X40 | 2 | Pcs. | $2.00 |
| CYLINDER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00008-23-00 | DOWEL PIN | 13X14 | 2 | Pcs. | $1.50 |
| 2 | A00297-13-00 | CYLINDER HEAD GASKET | 1 | Pc. | $23.00 | |
| 3 | A00006-19-01 | FLANGE BOLT | M6X20 | 2 | Pcs. | $1.50 |
| 4 | A00275-09-00 | CAM CHAIN TENSIONER | 1 | Pc. | $30.00 | |
| 5 | A00304-13-00 | CAM CHAIN TENSIONER GASKET | 1 | Pc. | $6.00 | |
| 6 | A02956-09-00 | CYLINDER | 1 | Pc. | $238.00 | |
| 7 | A00298-13-00 | CYLINDER BASE GASKET | 1 | Pc. | $13.00 | |
| 8 | A00009-23-00 | DOWEL PIN | 6X12 | 2 | Pcs. | $1.50 |

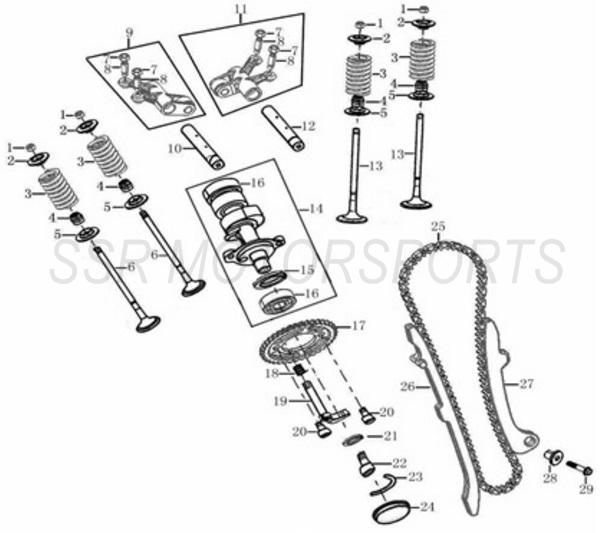

| VALVES | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00277-09-00 | COLLET | 8 | Pcs. | $3.50 | |
| 2 | A00278-09-00 | UPPER VALVE SPRING SEAT | 4 | Pcs. | $6.00 | |
| 3 | A00279-09-00 | VALVE SPRING | 4 | Pcs. | $8.00 | |
| 4 | A00280-09-00 | VALVE STEM SEAL | 4 | Pcs. | $14.00 | |
| 5 | A00281-09-00 | LOWER VALVE SPRING RETAINER | 4 | Pcs. | $6.00 | |
| 6 | A00282-09-00 | INTAKE VALVE | 2 | Pcs. | $33.00 | |
| 7 | A00283-09-00 | VALVE ADJUSTMENT NUT | 4 | Pcs. | $4.00 | |
| 8 | A00284-09-00 | VALVE CLEARANCE ADJUSTMENT SCREW | 4 | Pcs. | $4.00 | |
| 9 | A00285-09-00 | INTAKE ROCKER ARM ASSY | 1 | Assy. | $89.00 | |
| 10 | A00286-09-00 | INTAKE ROCKER SHAFT | 1 | Pc. | $8.00 | |
| 11 | A00287-09-00 | EXHAUST ROCKER ARM ASSY | 1 | Assy. | $89.00 | |
| 12 | A00288-09-00 | EXHAUST ROCKER SHAFT | 1 | Pc. | $8.00 | |
| 13 | A00289-09-00 | EXHAUST VALVE | 2 | Pcs. | $35.00 | |
| 14 | A00290-09-00 | CAMSHAFT ASSY | 1 | Assy. | $180.00 | |
| 15 | A00096-21-01 | WASHER | 1 | Pc. | $2.50 | |
| 16 | A00037-28-00 | BEARING | 6201C3 | 2 | Pcs. | $23.00 |
| 17 | A00292-09-00 | CAM TIMING SPROCKET | 38T | 1 | Pc. | $33.00 |
| 18 | A00293-09-00 | DECOMPRESSION SPRING | 1 | Pc. | $2.00 | |
| 19 | A00294-09-00 | DECOMPRESSION ARM | 1 | Pc. | $53.00 | |
| 20 | A00010-19-02 | ALLEN BOLT | M6X10 | 2 | Pcs. | $1.50 |
| 21 | A00025-21-01 | WASHER | 6.5X1.5X18 | 1 | Pc. | $1.50 |
| 22 | A00011-19-02 | FLANGE BOLT | M6X16 | 1 | Pc. | $1.50 |
| 23 | A00295-09-00 | CAMSHAFT STOPPER PLATE | 1 | Pc. | $3.50 | |
| 24 | A00296-09-00 | CYLINDER HEAD SEAL | 1 | Pc. | $11.00 | |
| 25 | A00297-09-00 | TIMING CHAIN | 1 | Pc. | $39.00 | |
| 26 | A00298-09-00 | FRONT CAM CHAIN SLIDER | 1 | Pc. | $23.00 | |
| 27 | A00299-09-00 | REAR CAM CHAIN SLIDER | 1 | Pc. | $23.00 | |
| 28 | A00300-09-00 | BUSHING | 1 | Pc. | $7.00 | |
| 29 | A00018-19-03 | BOLT | M5X25 | 1 | Pc. | $1.50 |
| RIGHT CRANKCASE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00423-19-08 | CASE FLANGE BOLT | M6X30 | 15 | Pcs. | $1.50 |
| 2 | A00301-09-00 | OIL LEVEL WINDOW | 1 | Pc. | $14.00 | |
| 3 | A02957-09-00 | OUTER CLUTCH COVER | 1 | Pc. | $59.00 | |
| 4 | A00026-27-00 | O-RING | 13.2X2.65 | 1 | Pc. | $1.50 |
| 5 | A00304-09-00 | TIMING HOLE PLUG | 1 | Pc. | $6.00 | |
| 6 | A00013-26-00 | OIL SEAL | 18X30X7 | 1 | Pc. | $11.00 |
| 7 | A00305-13-00 | OUTER CLUTCH COVER GASKET | 1 | Pc. | $18.00 | |
| 8 | A00302-09-00 | INNER CLUTCH COVER | 1 | Pc. | $96.00 | |
| 9 | A00302-13-00 | INNER CLUTCH COVER GASKET | 1 | Pc. | $24.00 | |
| 10 | A00010-23-00 | DOWEL PIN | 9X13 | 2 | Pcs. | $1.50 |
| 11 | A00025-27-00 | O-RING | 22X3.55 | 1 | Pc. | $2.50 |
| 12 | A02566-09-00 | OIL FILLER CAP ASSY | W/ O-RING | 1 | Assy. | $7.00 |
| 13 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 3 | Pcs. | $1.50 |
| 14 | A00419-19-08 | CASE FLANGE BOLT | M6x20 | 1 | Pc. | $1.50 |
| 15 | A02958-09-00 | WATER PUMP COVER | 1 | Pc. | $30.00 | |
| 16 | A00026-13-00 | WATER PUMP COVER GASKET | 1 | Pc. | $8.00 | |
| 17 | A00308-09-00 | IMPELLER | 1 | Pc. | $16.00 | |
| 18 | A00310-09-00 | WATER PUMP SHAFT | 1 | Assy. | $30.00 | |
| 19 | A00175-28-00 | BEARING | 6900-P63 | 1 | Pc. | $11.00 |
| 20 | A00004-24-07 | CIRCLIP | 10 | 2 | Pcs. | $2.00 |
| 21 | A02959-09-00 | PIN | 3X13.8 | 1 | Pc. | $1.50 |
| 22 | A00279-21-01 | WASHER | 10.2X1X17 | 1 | Pc. | $1.50 |
| 23 | A00309-09-00 | WATER PUMP SEAL | 12X24X6 | 1 | Pc. | $30.00 |
| 24 | A00259-26-00 | MECHANICAL SEAL | 1 | Pc. | $13.00 | |
| 25 | A00007-24-07 | CIRCLIP | 22 | 1 | Pc. | $2.00 |
| 26 | A00015-26-00 | OIL SEAL | 14X24X7 | 1 | Pc. | $11.00 |
| 27 | A00008-24-07 | CIRCLIP | 24 | 1 | Pc. | $1.50 |
| 28 | A00038-21-01 | COPPER WASHER | 6.5X1.5X12 | 1 | Pc. | $1.50 |
| 29 | A02960-09-00 | WATER PUMP COVER JOINT | 1 | Pc. | $11.00 | |
| 30 | A00156-27-00 | O-RING | 18X2.0 | 1 | Pc. | $2.50 |
| LEFT CRANKCASE COVER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00425-19-08 | CASE FLANGE BOLT | M6X35 | 8 | Pcs. | $1.50 |
| 2 | A00315-09-00 | TIMING PLUG | M14X1 | 1 | Pc. | $7.00 |
| 3 | A00024-27-00 | O-RING | 11.8X2.6 | 1 | Pc. | $2.00 |
| 4 | A02961-09-00 | STATOR COVER | 1 | Pc. | $77.00 | |
| 5 | A00303-13-00 | STATOR COVER GASKET | 1 | Pc. | $36.00 | |
| 6 | A00318-09-00 | FRONT SPROCKET COVER | 1 | Pc. | $18.00 | |
| 7 | A00001-19-01 | FLANGE BOLT | M6X30 | 2 | Pcs. | $1.50 |
| 8 | A00319-09-00 | BREATHER TUBE | 1 | Pc. | $10.00 | |
| 9 | A00016-26-00 | OIL SEAL | 10X18X6 | 1 | Pc. | $11.00 |
| 10 | A00321-09-00 | CARB DRAIN/VENT RETAINER | 1 | Pc. | $2.50 | |
| 11 | A00010-23-00 | DOWEL PIN | 9X13 | 2 | Pcs. | $1.50 |
| CLUTCH | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00037-21-01 | WASHER | 20.2X1.8X34 | 2 | Pcs. | $1.50 |
| 2 | A00324-09-00 | CLUTCH SLEEVE | 1 | Pc. | $4.00 | |
| 3 | A00325-09-00 | CLUTCH OUTER HUB | 22T / 64T | 1 | Pc. | $131.00 |
| 4 | A00326-09-00 | CLUTCH INNER HUB | 1 | Pc. | $59.00 | |
| 5 | A00327-09-00 | CLUTCH STEEL PLATE | 5 | Pcs. | $11.00 | |
| 6 | A00328-09-00 | CLUTCH FRICTION PLATE | 6 | Pcs. | $27.00 | |
| 7 | A00036-21-01 | WASHER | 16.5X2X27 | 1 | Pc. | $1.50 |
| 8 | A00015-22-01 | NUT | M16X1 | 1 | Pc. | $4.00 |
| 9 | A00329-09-00 | INNER CLUTCH PUSH ROD | 1 | Pc. | $8.00 | |
| 10 | A00036-28-00 | BEARING | AXK1528 | 1 | Pc. | $13.00 |
| 11 | A00035-21-01 | WASHER | 15X1X28 | 1 | Pc. | $1.50 |
| 12 | A00331-09-00 | CLUTCH SPRING | 5 | Pcs. | $3.50 | |
| 13 | A00332-09-00 | CLUTCH PRESSURE PLATE | 1 | Pc. | $39.00 | |
| 14 | A00034-21-01 | WASHER | 5.2X2X17 | 6 | Pcs. | $1.50 |
| 15 | A00018-19-03 | BOLT | M5X25 | 6 | Pcs. | $1.50 |
| 16 | A00333-09-00 | CLUTCH ASSY | 22T / 64T | 1 | Assy. | $291.00 |
| 17 | A00334-09-00 | CLUTCH PUSH ROD | 1 | Pc. | $13.00 | |

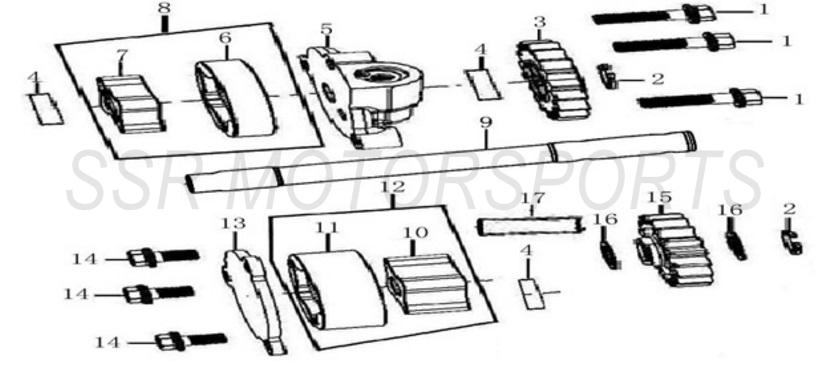

| OIL PUMP | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00067-19-01 | FLANGE BOLT | M5X18 | 3 | Pcs. | $1.50 |
| 2 | A00004-24-07 | CIRCLIP | 10 | 2 | Pcs. | $2.00 |
| 3 | A00336-09-00 | OIL PUMP GEAR | 18T | 1 | Pc. | $13.00 |
| 4 | A00003-25-02 | PIN | 4X15.8 | 3 | Pcs. | $1.50 |
| 5 | A00337-09-00 | OIL PUMP COVER | 1 | Pc. | $41.00 | |
| 6 | A00338-09-00 | OIL PUMP A OUTER ROTOR | 1 | Pc. | $13.00 | |
| 7 | A00339-09-00 | OIL PUMP A INNER ROTOR | 1 | Pc. | $11.00 | |
| 8 | A00340-09-00 | OIL PUMP ROTOR SET A | 1 | Set | $27.00 | |
| 9 | A00341-09-00 | OIL PUMP SHAFT | 1 | Pc. | $18.00 | |
| 10 | A00342-09-00 | OIL PUMP B INNER ROTOR | 1 | Pc. | $11.00 | |
| 11 | A00343-09-00 | OIL PUMP B OUTER ROTOR | 1 | Pc. | $13.00 | |
| 12 | A00344-09-00 | OIL PUMP ROTOR SET B | 1 | Set | $42.00 | |
| 13 | A00345-09-00 | OIL PUMP COVER | 1 | Pc. | $14.00 | |
| 14 | A00037-19-01 | FLANGE BOLT | M5X10 | 3 | Pcs. | $1.50 |
| 15 | A00346-09-00 | OIL PUMP GEAR | 17T | 1 | Pc. | $11.00 |
| 16 | A00033-21-01 | WASHER | 10.2X0.5X15 | 2 | Pcs. | $1.50 |
| 17 | A00347-09-00 | OIL PUMP GEAR SHAFT | 1 | Pc. | $8.00 | |

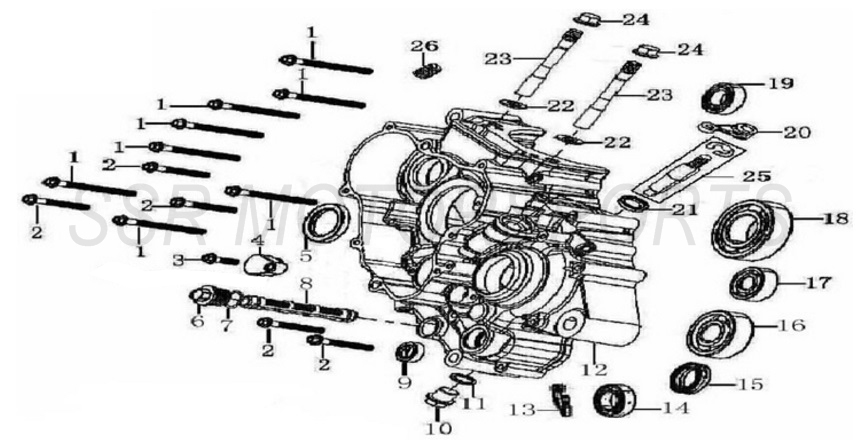

| LEFT CRANKCASE HALF | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00430-19-08 | CASE FLANGE BOLT | M6X65 | 8 | Pcs. | $2.00 |
| 2 | A00022-19-01 | FLANGE BOLT | M6X45 | 5 | Pcs. | $1.50 |
| 3 | A00034-20-12 | CS SCREW | M6X20 | 1 | Pc. | $1.50 |
| 4 | A03047-09-00 | GEAR POSITION SENSOR BLOCKING PLATE | W/ O-RING | 1 | Pc. | $8.00 |
| 5 | A00017-26-00 | OIL SEAL | 32X47X6 | 1 | Pc. | $10.00 |
| 6 | A00350-09-00 | OIL FILTER SCREEN COVER | 1 | Pc. | $8.00 | |
| 7 | A00022-27-00 | O-RING | 17.5X1.8 | 1 | Pc. | $1.50 |
| 8 | A00373-09-00 | OIL FILTER STRAINER | METAL MESH | 1 | Pc. | $13.00 |
| 9 | A00018-26-00 | OIL SEAL | 15X25X5 | 1 | Pc. | $7.00 |
| 10 | A03045-09-00 | OIL DRAIN PLUG | M16 | 1 | Pc. | $13.00 |
| 11 | A00355-09-00 | CRUSH WASHER | 16.5X23X1.85 | 1 | Pc. | $1.50 |
| 12 | A02970-09-00 | LEFT CRANKCASE HALF | 1 | Pc. | $180.00 | |
| 13 | A00009-24-07 | CIRCLIP | 28 | 1 | Pc. | $1.50 |
| 14 | A00026-28-00 | BEARING | 6902 | 1 | Pc. | $11.00 |
| 15 | A00027-28-00 | BEARING | 6805/61805 | 1 | Pc. | $18.00 |
| 16 | A00032-28-01 | BEARING | 63/22/P5/16 | 1 | Pc. | $33.00 |
| 17 | A00028-28-00 | BEARING | 6003/P53 | 1 | Pc. | $11.00 |
| 18 | A00034-28-00 | BEARING | QSTM6207 | 1 | Pc. | $51.00 |
| 19 | A00035-28-00 | BEARING | 6004CMNSK | 1 | Pc. | $11.00 |
| 20 | A02962-09-00 | CLUTCH RELEASE ARM | 1 | Pc. | $8.00 | |
| 21 | A00019-26-00 | OIL SEAL | 14X22X5 | 1 | Pc. | $4.00 |
| 22 | A00032-21-01 | WASHER | 10.5X2X20 | 2 | Pcs. | $1.50 |
| 23 | A00116-19-04 | CYLINDER STUD | 2 | Pcs. | $7.00 | |
| 24 | A00004-22-03 | FLANGE NUT | M10X1.25 | 2 | Pcs. | $1.50 |
| 25 | A00366-09-00 | CLUTCH ACTUATOR ROD W/ CIRCLIP | 1 | Assy. | $23.00 | |
| 26 | A00367-09-00 | OIL NOZZLE | 1 | Pc. | $4.00 | |
| 27 | A00003-23-00 | DOWEL PIN | 8X12 | 1 | Pc. | $1.50 |
| 28 | A00073-27-00 | O-RING | 8X1.5 | 1 | Pc. | $1.50 |
| RIGHT CRANKCASE HALF | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00002-22-36 | FLANGE CAP NUT | M10X1.25 | 2 | Pcs. | $1.50 |
| 2 | A00116-19-04 | CYLINDER STUD | 2 | Pcs. | $7.00 | |
| 3 | A00032-21-01 | WASHER | 10.5X2X20 | 2 | Pcs. | $1.50 |
| 4 | A00027-28-00 | BEARING | 6805/61805 | 1 | Pc. | $18.00 |
| 5 | A00028-28-00 | BEARING | 6203/P63 | 1 | Pc. | $11.00 |
| 6 | A00029-28-00 | BEARING | TM6304/P53 | 1 | Pc. | $21.00 |
| 7 | A00030-28-00 | BEARING | TM6207RS | 1 | Pc. | $51.00 |
| 8 | A00031-28-00 | BEARING | 6004DDUCM NSK | 1 | Pc. | $11.00 |
| 9 | A02976-09-00 | RIGHT CRANKCASE HALF | 1 | Pc. | $188.00 | |
| 10 | A00373-09-00 | OIL FILTER STRAINER | METAL MESH | 1 | Pc. | $13.00 |
| 11 | A00022-27-00 | O-RING | 17.5X1.8 | 1 | Pc. | $1.50 |
| 12 | A00375-09-00 | OIL FILTER SCREEN COVER | 1 | Pc. | $8.00 | |
| 13 | A00376-09-00 | RETURN SPRING PIN | 1 | Pc. | $7.00 | |
| 14 | A00026-28-00 | BEARING | 6902 | 1 | Pc. | $11.00 |
| 15 | A00377-09-00 | OIL FILTER | METAL MESH | 1 | Pc. | $36.00 |
| 16 | A00021-27-00 | O-RING | 30X2.6 | 1 | Pc. | $2.50 |
| 17 | A00379-09-00 | OIL FILTER CAP | 1 | Pc. | $18.00 | |
| 18 | A00013-19-04 | STUD | M5X22 | 2 | Pcs. | $1.50 |
| 19 | A00007-22-01 | NUT | M5 | 2 | Pcs. | $1.50 |
| 20 | A00008-23-00 | DOWEL PIN | 13X14 | 2 | Pcs. | $1.50 |

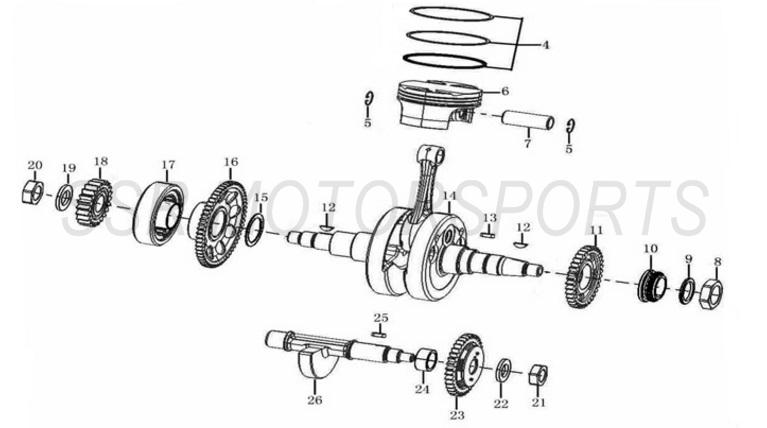

| CRANKSHAFT | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 4 | A02963-09-00 | PISTON RING SET | 1 | Set | $45.00 | |
| 5 | A02964-09-00 | PISTON PIN CIRCLIP | 2 | Pcs. | $1.50 | |
| 6 | A02965-09-00 | PISTON | 1 | Pc. | $54.00 | |
| 7 | A02966-09-00 | PISTON PIN | 1 | Pc. | $8.00 | |
| 8 | A00016-22-01 | NUT | M24 | 1 | Pc. | $7.00 |
| 9 | A00031-21-01 | WASHER | 24.2X2.5X32 | 1 | Pc. | $2.00 |
| 10 | A00387-09-00 | TIMING CHAIN SPROCKET | 1 | Pc. | $23.00 | |
| 11 | A00388-09-00 | DRIVING GEAR | 36T | 1 | Pc. | $54.00 |
| 12 | A00389-09-00 | WOODRUFF KEY | 2 | Pcs. | $2.00 | |
| 13 | A00390-09-00 | SQUARE PIN | 1 | Pc. | $2.50 | |
| 14 | A00391-09-00 | CRANKSHAFT ASSY | 1 | Assy. | $168.00 | |
| 15 | A00030-21-01 | WASHER | 30.2X1X40 | 1 | Pc. | $2.00 |
| 16 | A02979-09-00 | STARTER GEAR | 58T | 1 | Pc. | $69.00 |
| 17 | A00176-28-00 | STARTER CLUTCH W/ BEARING | 1 | Pc. | $51.00 | |
| 18 | A00394-09-00 | PRIMARY DRIVE GEAR | 22T | 1 | Pc. | $54.00 |
| 19 | A00029-21-01 | WASHER | 18.2X3X31 | 1 | Pc. | $2.00 |
| 20 | A00026-22-01 | NUT | M18 | 1 | Pc. | $7.00 |
| 21 | A00027-22-01 | LOCKNUT | M16 | 1 | Pc. | $4.00 |
| 22 | A00396-09-00 | DISHED WASHER | 16.5X2X27 | 1 | Pc. | $1.50 |
| 23 | A02980-09-00 | DRIVEN GEAR | 36T | 1 | Pc. | $69.00 |
| 24 | A00398-09-00 | CRANKSHAFT COLLAR | 1 | Pc. | $7.00 | |
| 25 | A00399-09-00 | WOODRUFF KEY | 4X4X13 | 1 | Pc. | $2.50 |
| 26 | A00400-09-00 | BALANCER SHAFT | 1 | Pc. | $80.00 | |
| 27 | A00177-28-00 | NEEDLE BEARING | NOT PICTURED | 1 | Pc. | $8.00 |
| TRANSMISSION | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00041-17-00 | MAINSHAFT ASSY | 1 | Assy. | $180.00 | |
| 2 | A00042-17-00 | COUNTERSHAFT ASSY | 1 | Assy. | $229.00 | |
| 3 | A00043-17-00 | MAINSHAFT | M-1 / 12T | 1 | Pc. | $48.00 |
| 4 | A00044-17-00 | GEAR | M-5 / 24T | 1 | Pc. | $41.00 |
| 5 | A00045-17-00 | WASHER | 25.1X1.0X30 | 2 | Pcs. | $2.00 |
| 6 | A00046-17-00 | CIRCLIP | 23X1X29 | 2 | Pcs. | $1.50 |
| 7 | A00047-17-00 | GEAR | M-3 & 4 / 18T & 20T | 1 | Pc. | $41.00 |
| 8 | A00048-17-00 | WASHER | 20.1X1.0X25 | 4 | Pcs. | $2.00 |
| 9 | A00049-17-00 | GEAR | M-6 / 25T | 1 | Pc. | $41.00 |
| 10 | A00050-17-00 | CIRCLIP | 1 | Pc. | $1.50 | |
| 11 | A00051-17-00 | GEAR | M-2 / 15T | 1 | Pc. | $41.00 |
| 12 | A00052-17-00 | WASHER | 17.1X1.0X26 | 2 | Pcs. | $2.00 |
| 13 | A00405-17-00 | COUNTERSHAFT SPROCKET NUT | M16X1.0 | 1 | Pc. | $4.00 |
| 14 | A00404-17-00 | LOCK WASHER | 1 | Pc. | $2.00 | |
| 15 | A00346-07-00 | COUNTERSHAFT SPROCKET | 13T | 1 | Pc. | $30.00 |
| 16 | A00055-17-00 | BUSHING | 1 | Pc. | $13.00 | |
| 17 | A00028-27-00 | O-RING | 21X2 | 1 | Pc. | $2.50 |
| 18 | A00057-17-00 | COUNTERSHAFT | 1 | Pc. | $45.00 | |
| 19 | A00058-17-00 | GEAR | C-2 / 27T | 1 | Pc. | $41.00 |
| 20 | A00059-17-00 | GEAR | C-6 / 22T | 1 | Pc. | $41.00 |
| 21 | A00060-17-00 | GEAR | C-3 / 24T | 1 | Pc. | $41.00 |
| 22 | A00061-17-00 | GEAR | C-4 / 22T | 1 | Pc. | $41.00 |
| 23 | A00007-24-07 | CIRCLIP | 22 | 1 | Pc. | $2.00 |
| 24 | A00063-17-00 | GEAR | C-5 / 23T | 1 | Pc. | $41.00 |
| 25 | A00064-17-00 | WASHER | 19X1X26 | 1 | Pc. | $2.00 |
| 26 | A00065-17-00 | GEAR | C-1 / 31T | 1 | Pc. | $41.00 |
| 27 | A00066-17-00 | TRANSMISSION ASSY | 1 | Assy. | $338.00 | |
| KICKSTARTER | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00401-09-00 | KICKSTART SHAFT | 1 | Pc. | $45.00 | |
| 2 | A00028-21-01 | WASHER | 18.5X0.5X26 | 3 | Pcs. | $2.00 |
| 3 | A00010-24-07 | CIRCLIP | 21 | 1 | Pc. | $1.50 |
| 4 | A00027-21-01 | WASHER | 21.7X0.5X29.5 | 1 | Pc. | $2.00 |
| 5 | A00403-09-00 | KICK STARTER SPRING | 1 | Pc. | $2.50 | |
| 6 | A00404-09-00 | STARTING RATCHET | 1 | Pc. | $51.00 | |
| 7 | A00405-09-00 | GUIDE PLATE | 1 | Pc. | $8.00 | |
| 8 | A00002-20-05 | COUNTER SUNK SCREW | M6X25 | 2 | Pcs. | $1.50 |
| 9 | A00406-09-00 | KICK STARTER GEAR | 33T | 1 | Pc. | $59.00 |
| 10 | A00407-09-00 | KICK START COLLAR | 1 | Pc. | $8.00 | |
| 11 | A00408-09-00 | RETURN SPRING | 1 | Pc. | $4.00 | |
| 12 | A00409-09-00 | KICKSTARTER GEAR ASSY | 33T | 1 | Assy. | $150.00 |
| 13 | A00410-09-00 | IDLER GEAR | 31T | 1 | Pc. | $24.00 |
| 14 | A00026-21-01 | WASHER | 17.1X0.5X26 | 1 | Pc. | $1.50 |
| 15 | A00001-24-07 | CIRCLIP | 17 | 1 | Pc. | $1.50 |
| 16 | A00548-05-00 | KICKSTARTER LEVER | 1 | Pc. | $89.00 | |

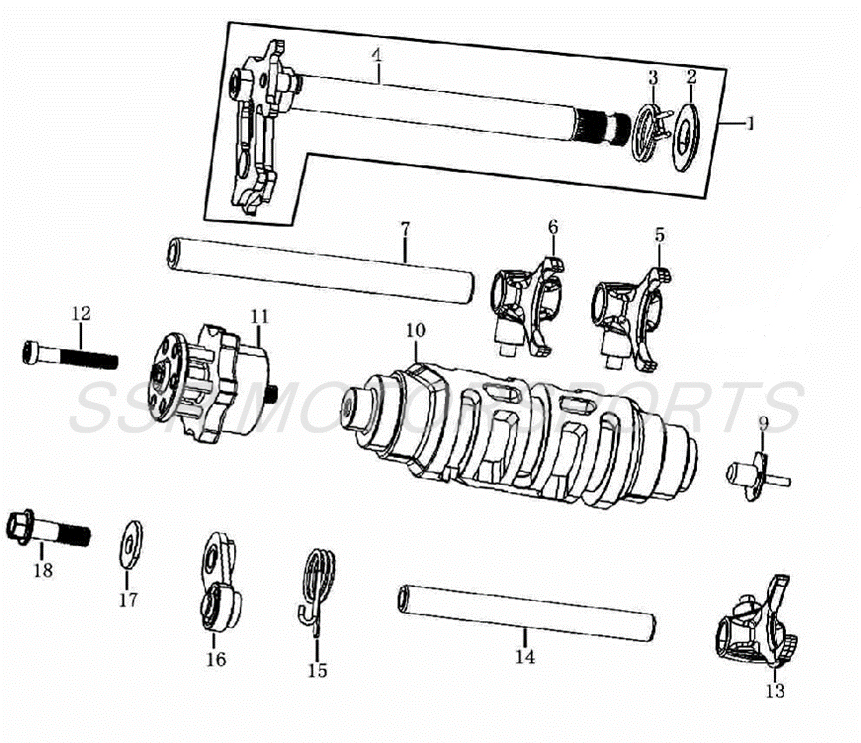

| GEARSHIFT DRUM | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00413-09-00 | GEARSHIFT SHAFT ASSY | 1 | Assy. | $59.00 | |
| 2 | A00414-09-00 | SLEEVE | 1 | Pc. | $4.00 | |
| 3 | A00415-09-00 | RETURN SPRING | 1 | Pc. | $4.00 | |
| 4 | A00416-09-00 | GEARSHIFT SHAFT | 1 | Pc. | $51.00 | |
| 5 | A00417-09-00 | RIGHT SHIFT FORK | 1 | Pc. | $23.00 | |
| 6 | A00418-09-00 | LEFT SHIFT FORK | 1 | Pc. | $23.00 | |
| 7 | A00419-09-00 | SHIFT FORK SHAFT | 1 | Pc. | $13.00 | |
| 9 | A00421-09-00 | GEAR INDICATOR CONTACT | 1 | Pc. | $4.00 | |
| 10 | A00422-09-00 | GEARSHIFT DRUM | 1 | Pc. | $104.00 | |
| 11 | A00423-09-00 | GEAR SHIFT DRUM SELECTOR | 1 | Pc. | $59.00 | |
| 12 | A00012-19-02 | ALLEN BOLT | M6X35 | 1 | Pc. | $1.50 |
| 13 | A00424-09-00 | CENTER SHIFT FORK | 1 | Pc. | $24.00 | |
| 14 | A00425-09-00 | GEARSHIFT FORK SHAFT | 1 | Pc. | $10.00 | |
| 15 | A00426-09-00 | LOCATING PLATE SPRING | 1 | Pc. | $2.50 | |
| 16 | A00427-09-00 | LOCATING PLATE ASSY | 1 | Pc. | $13.00 | |
| 17 | A00025-21-01 | WASHER | 6.5X1.5X18 | 1 | Pc. | $1.50 |
| 18 | A00006-19-01 | FLANGE BOLT | M6X20 | 1 | Pc. | $1.50 |

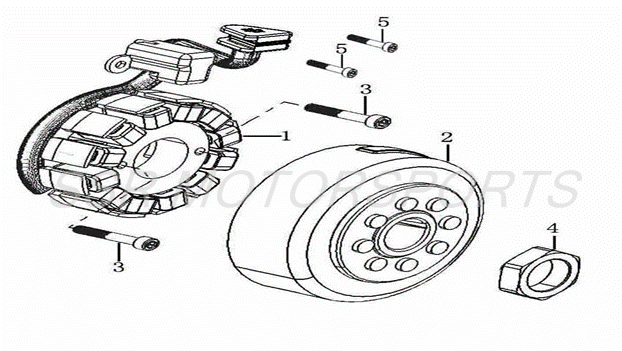

| STATOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00429-09-00 | STATOR | 1 | Pc. | $89.00 | |
| 2 | A00430-09-00 | FLYWHEEL | 1 | Pc. | $77.00 | |
| 3 | A00013-19-02 | ALLEN BOLT | M5X30 | 2 | Pcs. | $1.50 |
| 4 | A00003-22-07 | NUT | M14X1.5 | 1 | Pc. | $2.50 |
| 5 | A00014-19-02 | ALLEN BOLT | M5X10 | 2 | Pcs. | $1.50 |

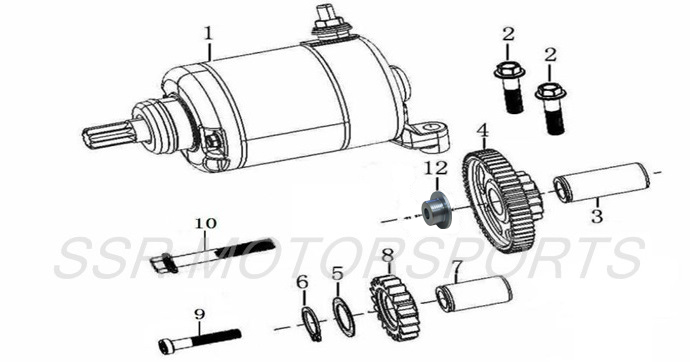

| STARTER MOTOR | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A02978-09-00 | STARTER MOTOR ASSY | 8 SPLINES | 1 | Assy. | $124.00 |
| 2 | A00003-19-01 | FLANGE BOLT | M6X25 | 2 | Pcs. | $1.50 |
| 3 | A02982-09-00 | REDUCTION GEAR SHAFT | 1 | Pc. | $11.00 | |
| 4 | A02983-09-00 | STARTER REDUCTION GEAR | 14T / 45T | 1 | Pc. | $27.00 |
| 5 | A00280-21-01 | WASHER | 15.2X0.5X23 | 1 | Pc. | $1.50 |
| 6 | A00012-24-07 | CIRCLIP | 15 | 1 | Pcs. | $1.50 |
| 7 | A00435-09-00 | REDUCTION GEAR SHAFT 2 | 1 | Pc. | $10.00 | |
| 8 | A02981-09-00 | REDUCTION GEAR 2 | 19T | 1 | Pc. | $18.00 |
| 9 | A00015-19-02 | ALLEN BOLT | M6X30 | 1 | Pc. | $1.50 |
| 10 | A00482-19-02 | ALLEN BOLT | M6X50 | 1 | Pc. | $2.50 |
| 11 | A00085-27-00 | O-RING | NOT PICTURED | 1 | Pc. | $1.50 |
| 12 | A00281-21-00 | COLLAR | 1 | Pc. | $2.50 | |
| ELECTRICAL COMPONENTS II | ||||||
 |
||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00618-08-00 | IGNITION COIL W/ CAP | 1 | Assy. | $24.00 | |
| 2 | A00055-08-00 | CDI | 1 | Pcs. | $168.00 | |
| 3 | A00617-08-00 | REGULATOR / RECTIFIER | 1 | Pc. | $42.00 | |
| 4 | A00612-08-00 | STARTER RELAY | 1 | Pc. | $18.00 | |
| TOP END GASKET SET | ||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00299-13-00 | TOP END GASKET SET | 1 | Set | $41.00 | |
| COMPLETE GASKET SET | ||||||
| NO. | PART NUMBER | DESCRIPTION | SPECIFICATION | QTY. | UNIT | RETAIL |
| 1 | A00300-13-00 | COMPLETE ENGINE GASKET + SEAL SET | 1 | Set | $104.00 | |
