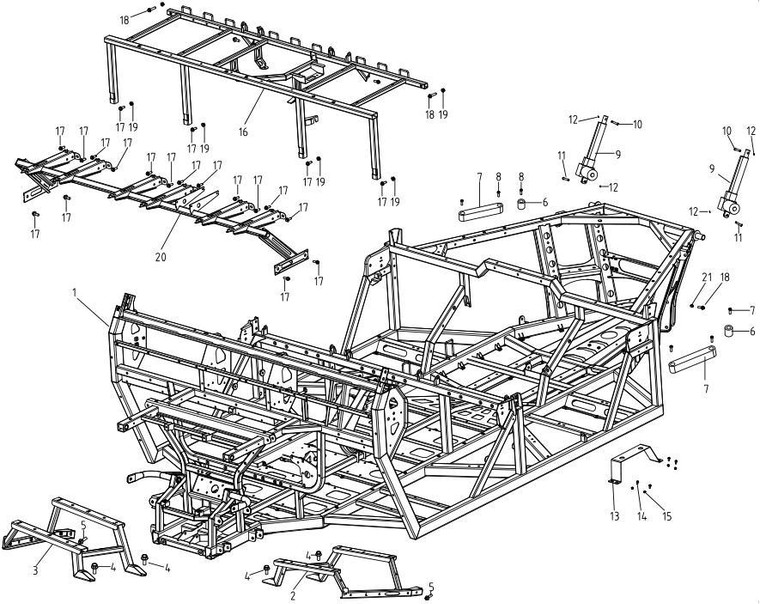

2023 Aodes Desertcross 1000-6 HVAC (Frame & Accessories)

2023 Aodes Desertcross 1000-6 HVAC (Frame & Accessories)

Aodes

SPECIAL ORDER ONLY PLEASE CALL (320)-358-1994 TO ORDER THANK YOU

(No reviews yet)
Condition:
New
Current Stock:
Description

Item #		 Part Number Description
Specification
Quantity
Warranty period		 Fits Models
1 16608010001 Frame Bed Light Light 1 12 Months (Unlimited Miles) 1000-13
2 17108110020 Front Cover Bottom Frame (Left) Left 1
3 17108110030 Front Cover Bottom Frame (Right) Right 1
4 01224080166 Hexagon Flange Bolt M8×16 4 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
5 01254060206 Hexagon Flange Bolt M6×20 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
6 14610470080 Rubber Support Support 2 12 Months (Unlimited Miles) 800-7/1000-13
7 14610470030 Cargo Bed Support Block 2 12 Months (Unlimited Miles) 800-7/1000-13
8 01824080125 Allen Step Bolt M8×12 6 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
9 14608410002 Dump Bed Electric Lift IP67 2 6 Months (Unlimited Miles) 800-7/1000-13
10 10908410010 Upper Pin, Electric Lift, Up Pin 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/800-7
11 10908410020 Lower Pin, Electric Lift, Down Pin 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/800-7
12 05011250255 Cotter Pin φ2.5×25 4 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
13 14609090150 Battery Box Bracket Plate 1 12 Months (Unlimited Miles) 800-7/1000-13
14 01254060166 Hexagon Flange Bolt M6×16 4 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
15 04612060026 Hexagon Flange Locking Nut M6 6 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
16 16508010300 Seat Bracket Combination 1 12 Months (Unlimited Miles) 1000-13
17 01224080206 Hexagon Flange Bolt M8×20 22 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
18 01214080406 Hexagon Flange Bolt M8×40 2 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/800-7/1000-7/1000-12
19 04612080026 Hexagon Flange Locking Nut M8 6 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
20 16608010200 Seat Bracket Combination 1 12 Months (Unlimited Miles) 1000-13
21 04212080026 Hexagon Nut M8 1 Not Covered Under Warranty 800-3/800-3A/800-4/800-4A/1000-3/1000-3A/1000-4/1000-4A/1000-11/ATV800/800-7/1000-7/1000-13
