| No. |
U8 Code |
EN name |
Qty/vehicle |
QTY |
Retail |
| 1 |
405000-0110 |
rear brake assy. |
1 |
/ea |
$ 93.50 |
| 1-1 |
404002-0015 |
rear brake lever Left Hand Side |
1 |
/ea |
$ 17.00 |
| 1-2 |
405008-0007 |

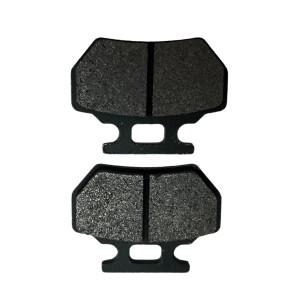

rear brake pad |
1 |
/ea |
$ 13.60 |
| 1-3 |
405009-0019 |
rear brake bracket |
1 |
/ea |
$ 13.60 |
| 1-4 |
405007-0014 |
rear brake caliper |
1 |
/ea |
$ 42.50 |
| 1-5 |
405006-0016 |
rear brake oil pipe |
1 |
/ea |
$ 30.60 |
| 1-6 |
405004-0011 |
rear brake master cylinder |
1 |
/ea |
$ 28.90 |
| 1-7 |
405012-0009 |
rear brake switch |
1 |
/ea |
$ 8.50 |
| 2 |
903019-0014-02 |
flange bolt |
2 |
/ea |
$ 5.10 |
| 3 |
903001-0003 |
弹垫 GB93-87 |
2 |
/ea |
$ 3.40 |
| 4 |
903002-0004-02 |
平垫 GB97.1-85 |
2 |
/ea |
$ 3.40 |
| |
405004-0011-30 |
rear brake park lock bracket/tab |
1 |
/ea |
$ 8.50 |
| |
405012-0005Z |
rear park lock kit |
1 |
/ea |
$ 13.60 |
