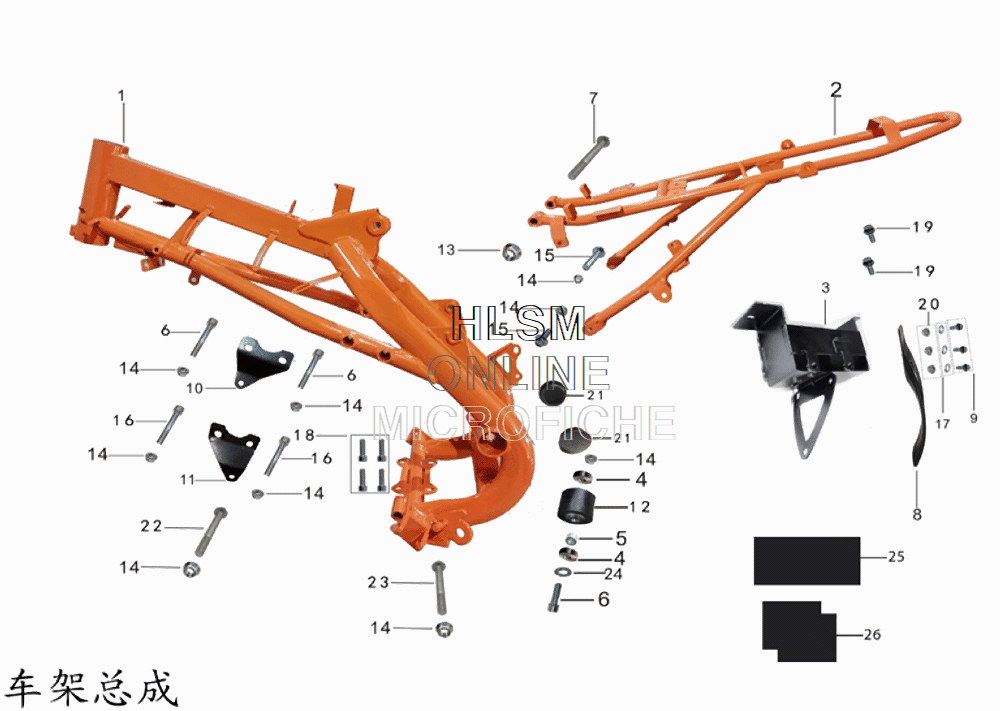

Frame
| No. | U8 Code | EN name | Qty/vehicle | QTY | Retail |
| 1 | 551000-0142-01 | frame assy. | 1 | /ea | $ 510.00 |
| 2 | 552000-0029-02 | sub frame assy. | 1 | /ea | $ 115.60 |
| 3 | 555000-0059-02 | battery box | 1 | /ea | $ 25.50 |
| 4 | 907001-0001 | bearing | 2 | /ea | $ 13.60 |
| 5 | 902001-0003 | flat washer | 1 | /ea | $ 5.10 |
| 6 | 903013-0025 | screw | 3 | /ea | $ 5.10 |
| 7 | 903019-0024 | bolt | 1 | /ea | $ 17.00 |
| 8 | 801004-0008 | mud guard | 1 | /ea | $ 17.00 |
| 9 | 903019-0004 | flange bolt | 3 | /ea | $ 3.40 |
| 10 | 555000-0125 | right lifting lug | 1 | /ea | $ 17.00 |
| 11 | 555000-0124 | left lifting lug | 1 | /ea | $ 17.00 |
| 12 | 203004-0014 | chain roller | 1 | /ea | $ 13.60 |
| 13 | 903007-0006 | flange locknut | 1 | /ea | $ 10.20 |
| 14 | 903007-0005 | flange locknut | 9 | /ea | $ 5.10 |
| 15 | 903019-0015 | flange bolt | 2 | /ea | $ 5.10 |
| 16 | 903013-0024 | screw | 2 | /ea | $ 6.80 |
| 17 | 903002-0002 | washer | 3 | /ea | $ 3.40 |
| 18 | 903020-0016 | screw | 4 | /ea | $ 5.10 |
| 19 | 903019-0012 | flange bolt | 2 | /ea | $ 3.40 |
| 20 | 903006-0002 | flange nut | 3 | /ea | $ 2.55 |
| 21 | 908004-0008 | flat fork plug | 2 | /ea | $ 6.80 |
| 22 | 903018-0025 | flange bolt | 1 | /ea | $ 17.00 |
| 23 | 903018-0022 | flange bolt | 1 | /ea | $ 17.00 |
| 24 | 903002-0004 | washer | 1 | /ea | $ 3.40 |
| 25 | 909010-0009 | EVA | 1 | /ea | $ 6.80 |
| 26 | 909010-0008 | EVA | 2 | /ea | $ 5.10 |
